Product Description

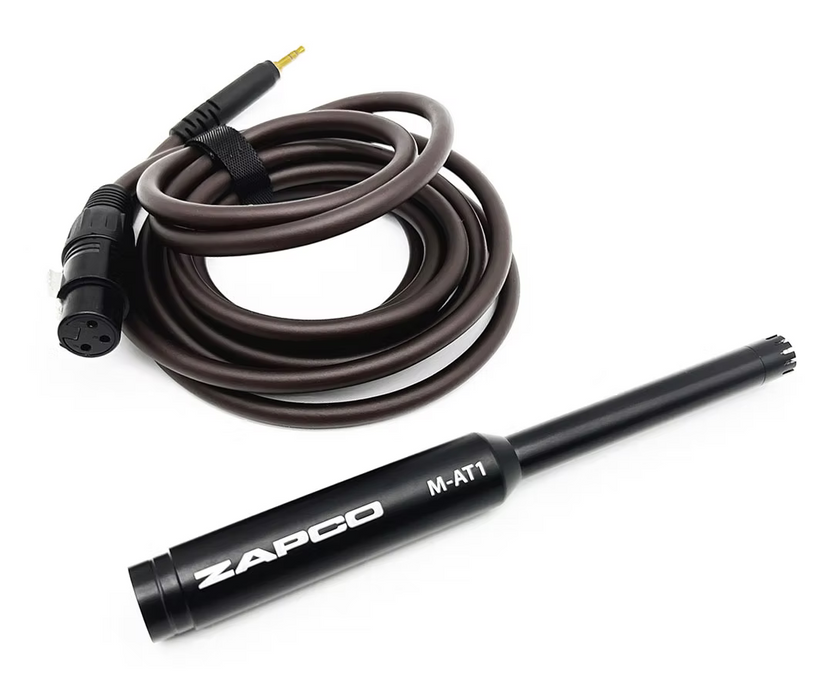

The Zapco MAT1 AutoTune Calibration Microphone is a precision omnidirectional measurement microphone designed for use with compatible Zapco DSP-IV AT Series processors and amplifiers.
Built specifically for professional DSP tuning, the MAT1 allows compatible Zapco AutoTune systems to measure the vehicle's acoustic response from the listening position and automatically establish critical tuning parameters including equalization, phase, and signal delay/time alignment.
For professional 12-volt installers, this provides a fast and repeatable way to establish a properly calibrated baseline before making final tuning adjustments.
Key Features
-
Precision DSP measurement and AutoTune microphone
-
Designed for compatible Zapco DSP-IV AT Series products
-
Omnidirectional measurement pattern
-
Full-range 20 Hz–20 kHz frequency response
-
Enables automatic EQ calibration
-
Enables automatic phase calibration
-
Enables automatic signal delay / time alignment
- Measures system response from the actual listening position
- Helps establish a consistent baseline tune before final adjustments
-
3-meter cable allows proper positioning inside the vehicle
-
Ideal for professional DSP tuning and car audio installation shops
Specifications
UM Part Number: ZMAT1
Zapco Model: M-AT1
Product Type: AutoTune Calibration Microphone
Pickup Pattern: Omnidirectional
Frequency Response: 20 Hz–20 kHz
Sensitivity: -44 dB @ 1 kHz
Signal-to-Noise Ratio: 60 dBA
Output Impedance: 1 kΩ
Operating Voltage: 4.5V DC
Maximum Voltage: 10V
Current Consumption: 0.5 mA
Cable Length: 3 meters
Professional DSP Tuning
The ZMAT1 gives installers a purpose-built measurement tool for compatible Zapco AutoTune systems. Once positioned at the listening location, the microphone captures the system's acoustic response so the DSP can calculate corrections for the vehicle environment.
This makes it especially valuable for shops performing multi-channel active systems, DSP amplifier installations, premium speaker upgrades, and complete system tuning.
Instead of treating AutoTune as the finished tune, installers can use the resulting calibration as a strong, repeatable baseline and then make final adjustments based on the system and customer's listening preferences.
Important Part Number Note
ZMAT1 is the Ultimate Marketing SKU for this product. Zapco identifies the microphone as M-AT1. The UM part number was changed to ZMAT1 to prevent a duplicate SKU conflict with the Recoil MAT1 Multifunction Audio Tester.
