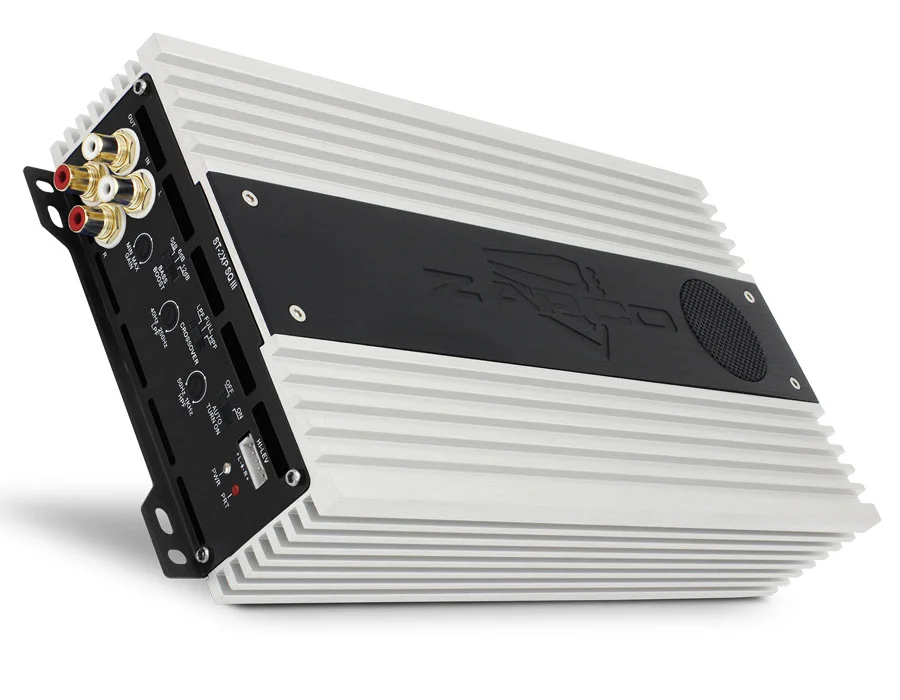

Zapco - ST-2XP SQ III - Class AB, 2-Ch, SQ Power 2Ω: 2 x 250W, 4Ω: 2 x 150W

• Model: ST-2XP SQ III
• Channels: 2 (Class AB, full-range)
• Power Output:
 • 250 W × 2 @ 2 Ω
 • 150 W × 2 @ 4 Ω
 • Bridged: 500 W × 1 @ 4 Ω
• Total Harmonic Distortion (THD): < 0.5% at rated output
• Signal-to-Noise Ratio: > 90 dB
• Frequency Response: 15 Hz – 30,000 Hz ±1 dB
• Input Sensitivity: 0.25 V – 5 V

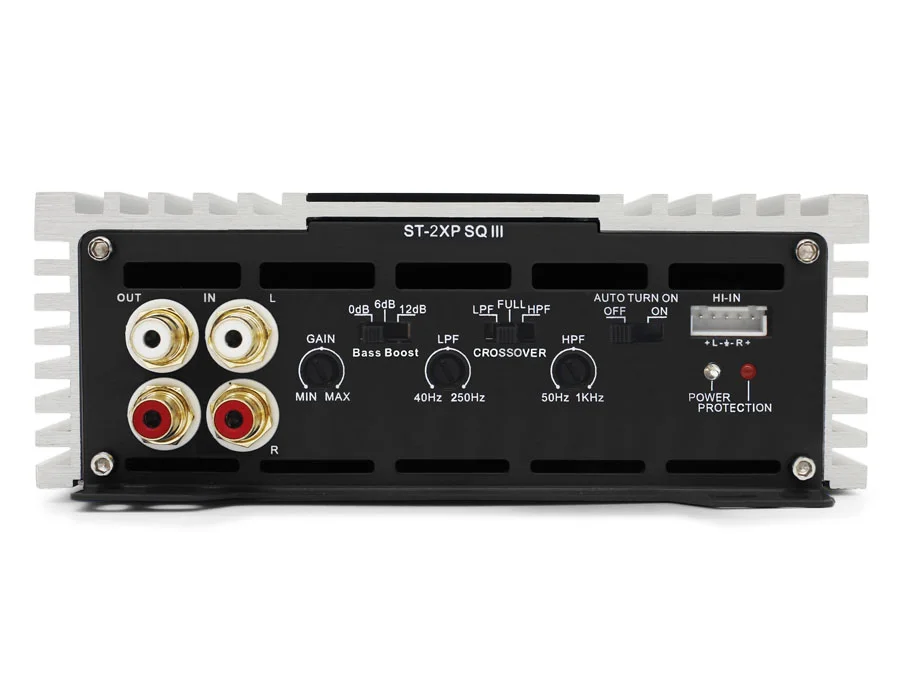

• Features:
 • RCA and speaker-level inputs
 • Variable input gain control
 • Variable electronic crossover (HPF/LPF)
 • Variable bass boost
 • Protection circuitry: thermal, short-circuit, DC offset
• Dimensions (chassis): approx. 200 mm × 65 mm × 300 mm
• Overall Dimensions (including end caps): ~ 200 mm × 65 mm × 330 mm
• Construction: Robust AB design with heat dissipation features
