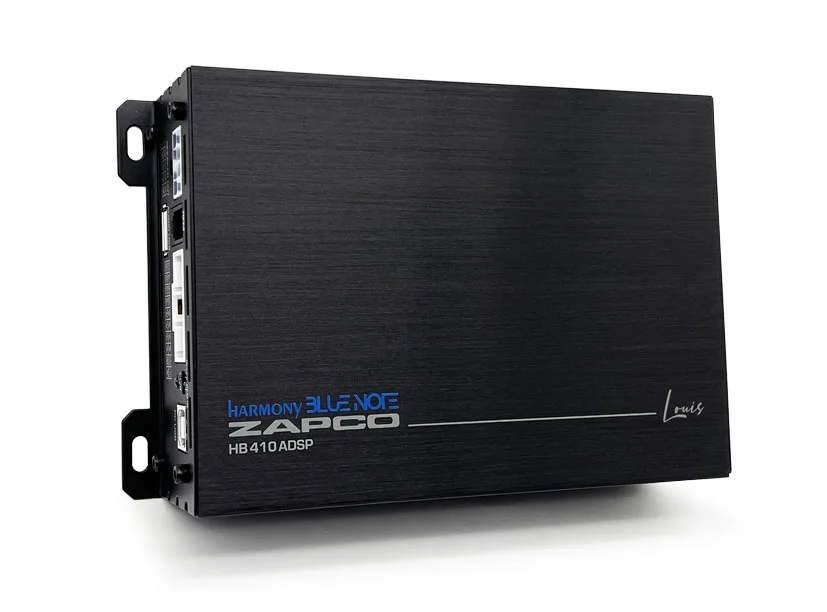

Zapco - HB 410 ADSP - DSP, 4 In / 10 Out RCA; 8 x 70W (Max), BT & Player included

The Zapco HB 410 ADSP (also labelled “Louis”) serves as a full-fledged DSP unit with an integrated 8-channel amplifier. It supports high-level inputs, provides 10 RCA outputs, Bluetooth streaming, and USB music playback. It is engineered for compact and efficient installation, making it versatile for systems needing advanced signal processing and multichannel amplification in a single unit.

• Model: HB 410 ADSP
• Type: Integrated DSP + Amplifier
• DSP Channels: 10 channels (31-band EQ)
• Inputs:
 • 4 × High-Level (speaker-level) inputs
 • 2 × RCA line inputs

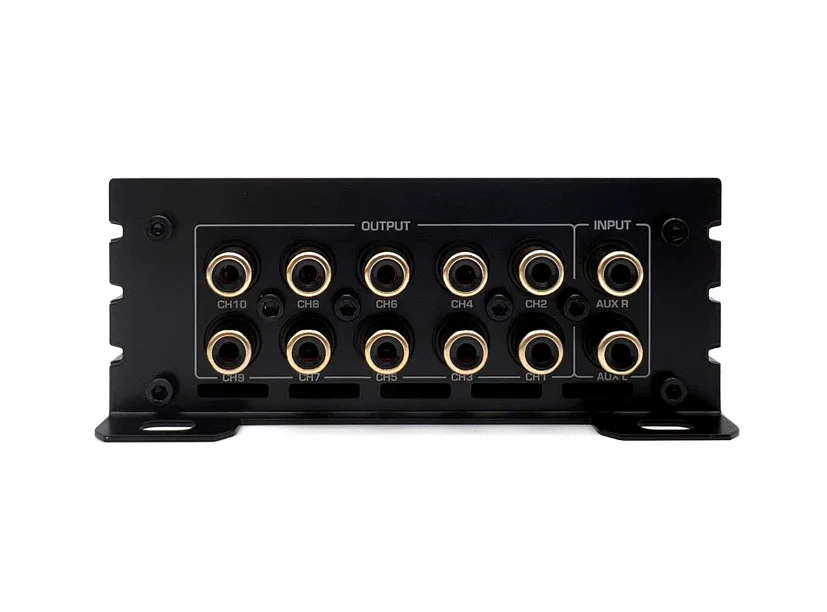

• Outputs: 10 × RCA outputs
• Integrated Amplifier: 8 channels (Class AB)
 • Power Output (Max): 8 × 70 W
• Bluetooth: BT 5.1 streaming built-in
• Music Player: USB music playback (formats: MP2, MP4, WMA, APE, FLAC, AAC, M4A, WAV, AIF, AIFC)
• Control Interfaces: PC software & mobile app tuning
• “Plug & Play” ready for many systems
• Dimensions (mm): 160 × 115 × 45
• Additional Features:
 • Preset recall, input switching, DSP delay & level control
 • Optional remote interface (for volume/sub level and preset switching)
