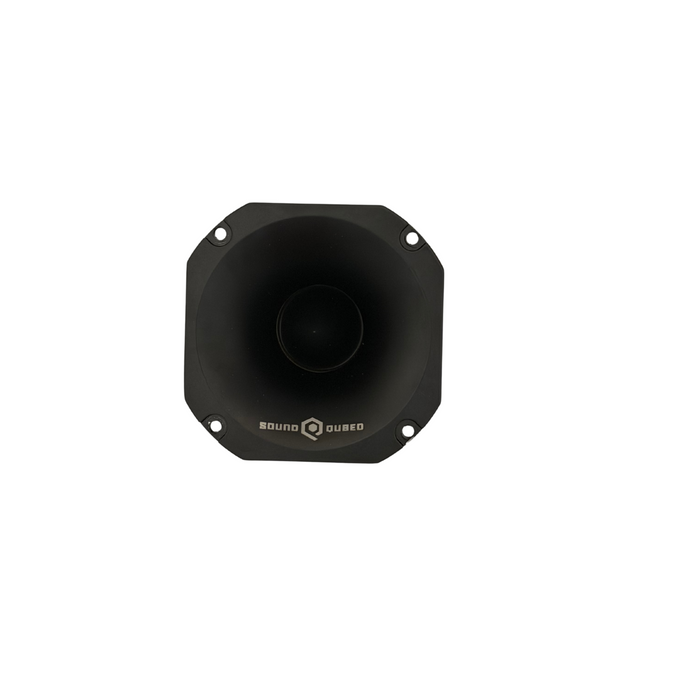

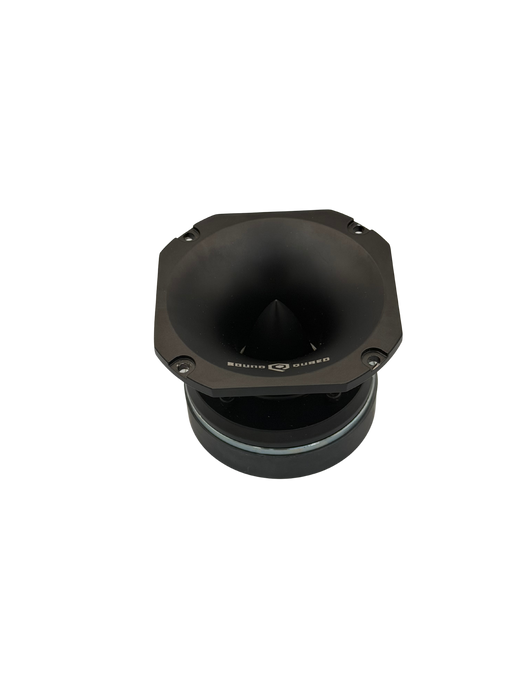

SoundQubed HDCTW44 – 4" High-Output Compression Tweeter
Extreme Clarity. Powerful High Frequencies. Built to Perform.
Bring your audio system to life with the SoundQubed HDCTW44, a high-performance 4-inch compression tweeter engineered to deliver exceptional clarity, powerful output, and impressive high-frequency detail.
Designed for demanding car audio applications, the HDCTW44 features a 1.5-inch, 4-ohm voice coil and handles an impressive 150 watts RMS and 300 watts maximum power, making it an excellent choice for high-output sound systems.
With a frequency response of 2,000Hz to 20,000Hz, the HDCTW44 reproduces crisp, detailed upper frequencies that help vocals, instruments, and musical details stand out.
Its exceptional 110dB sensitivity provides tremendous acoustic output with relatively modest amplifier power, making it especially well suited for loud, dynamic car audio systems and custom high-output installations.
Whether you're upgrading an existing system or building a custom audio setup, the SoundQubed HDCTW44 delivers the high-frequency performance, efficiency, and clarity serious audio enthusiasts demand.
Key Features
-
High-performance 4-inch compression tweeter
-
150 watts RMS power handling
-
300 watts maximum power handling
-
1.5-inch voice coil diameter
-
4-ohm nominal impedance
-
Frequency response: 2,000Hz – 20,000Hz
-
High-efficiency 110dB sensitivity
-
Designed for powerful, detailed high-frequency reproduction
-
Ideal for high-output car audio and custom installations
-
Excellent choice for multi-speaker systems
Technical Specifications
-
Brand: SoundQubed
-
Model: HDCTW44
-
Speaker Type: Compression Tweeter
-
Nominal Size: 4 Inches
-
RMS Power Handling: 150 Watts
-
Maximum Power Handling: 300 Watts
-
Voice Coil Diameter: 1.5 Inches
-
Nominal Impedance: 4 Ohms
-
Frequency Response: 2,000Hz – 20,000Hz
-
Sensitivity: 110dB
-
Application: High-Output Automotive Audio Systems
-
Product Category: Car Audio Tweeter
Installation Recommendations
For best performance and reliability, the HDCTW44 should be used with an appropriately designed high-pass crossover to prevent damaging low-frequency signals from reaching the tweeter.
Amplifier selection, crossover frequency, crossover slope, and system tuning should be matched to the overall installation requirements.
Available through Ultimate Marketing / UM Distributors, supplying professional 12-volt dealers and installers with high-performance audio equipment.
