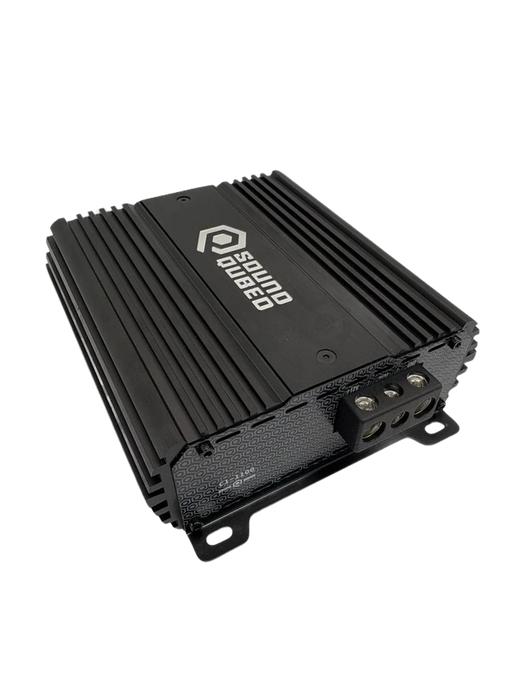

SoundQubed C1-1100 – 1100W Compact Full-Range Digital Monoblock Amplifier

The SoundQubed C1-1100 is a compact full-range digital monoblock amplifier built for systems where space is limited but serious output is still required.

It delivers 320W RMS x 1 at 4 ohms, 650W RMS x 1 at 2 ohms, and 1,100W RMS x 1 at 1 ohm, giving installers a flexible power option for car, motorcycle, powersports, and other custom audio systems.

Its compact footprint, full-range capability, built-in crossover controls, bass boost, cooling fan, and extensive protection circuitry make the C1-1100 a strong choice for high-output builds where reliability and installation flexibility matter.

Power Output

• 320W RMS x 1 @ 4 Ohms
• 650W RMS x 1 @ 2 Ohms
• 1,100W RMS x 1 @ 1 Ohm
• 1-ohm minimum impedance

Audio Specifications

• Frequency Response: 20Hz–20kHz
• Signal-to-Noise Ratio: 95dB
• Efficiency @ 4 Ohms: 85%
• Damping Factor: 92
• Input Impedance: 22K Ohms
• Total Harmonic Distortion: 0.10%
• Low-Level Input Range: 400mV–6V

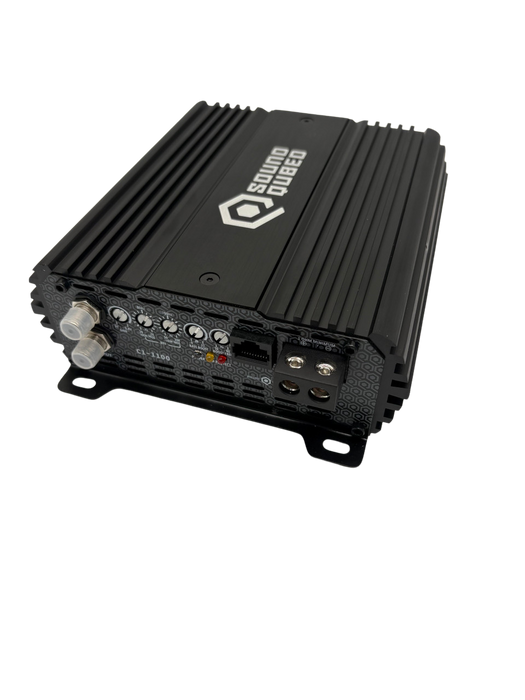

Crossover & Bass Controls

• Fixed Band-Pass crossover configuration
• HPF Range: 10Hz–2kHz
• LPF Range: 50Hz–20kHz
• Bass Boost Range: 0–12dB
• Bass Boost Frequency: 30Hz–80Hz

Features

• Full-range digital monoblock amplifier
• 1 channel
• 1-ohm stable
• Power / Protect / Clip LED indicators
• 4-gauge power input terminals
• Recommended fuse size: 90A
• Remote level control included
• Cooling fan
• Thermal protection
• Overload protection
• DC output protection
• Short-circuit output protection
• Voltage input protection
• Clipping protection
• High-efficiency digital circuit design
• Tiffany-style RCA connections
• Quality-control verification using Audio Precision instruments
• Optional remote level control with voltmeter available separately
• Black finish

Dimensions

• Overall Length: 7.20" / 183mm
• Overall Width: 5.91" / 150mm
• Overall Height: 2.17" / 55mm
• Heatsink Length: 6.02" / 153mm

Ideal For

The C1-1100 is a strong fit for:

• Motorcycle audio systems
• Compact automotive builds
• Powersports applications
• Full-range speaker systems
• Subwoofer applications
• Installations where amplifier space is limited

Its compact chassis and wide crossover range make it a flexible amplifier for both full-range and low-frequency applications.

SKU: C1-1100
