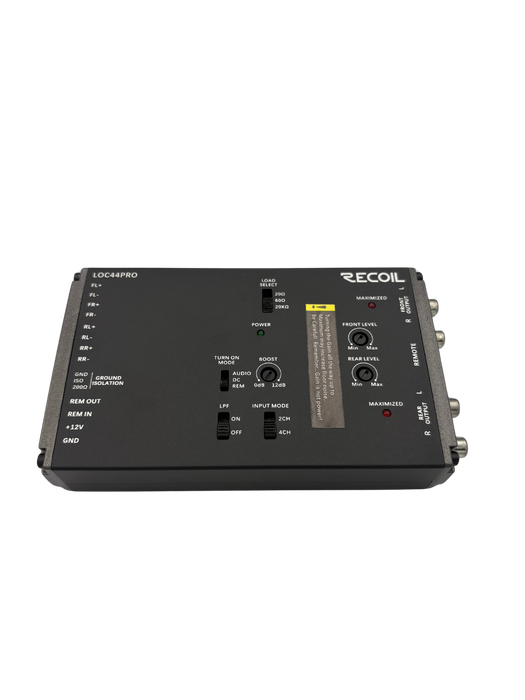

Recoil Audio - PLC44PRO -

Premium Active Line Output Converter (LOC)

General

• Channels: 4-Input / 4-Output

• Max Speaker-Level Input: 40V / 400W @ 20kΩ

• Operating Voltage: 9V – 16V

• Turn-On Modes: REM / DC / Audio Sense

• Remote Output Voltage: 12V (REM OUT)

Output & Gain

• Max Output @ 13.8V: 9.5V RMS

• Gain Adjustment Range: -28dB to +1dB

• Input Sensitivity: 0.5V – 20V

• Bass Boost: 0dB to +12dB (Rear Channels Only)

• Bass Remote Control w/ Voltmeter: Yes

Impedance & Load Selection

• Speaker-Level Input Impedance Options:

  • 20Ω

  • 60Ω

  • 20kΩ

• RCA-Level Input Impedance: N/A

• Ground Isolation Modes:

  • GND

  • ISO

  • 200Ω

Signal Performance

• Signal-to-Noise Ratio: >110dB @ 6.4V Output

• THD+N: <0.01%

• Frequency Response: 20Hz – 20kHz

Filtering & Indicators

• Low-Pass Filter (Rear Channels):

  • ON: ≤250Hz

  • OFF: Full Range

• Clip Indicators: Separate Clip Indicator per Channel

Input Modes

• 2-Channel Mode: Front & Rear summed

• 4-Channel Mode: Dedicated Front & Rear speaker inputs
