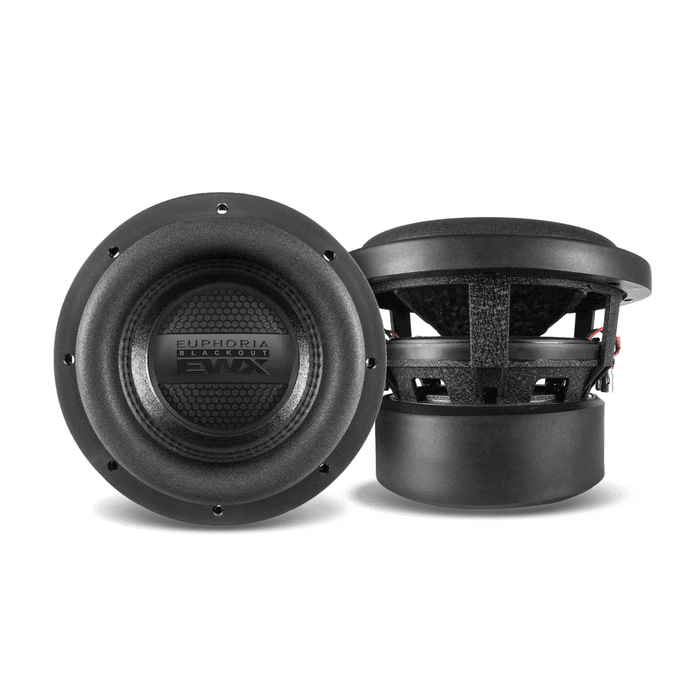

Euphoria - EWXB8D2 - 8" SUBWOOFER BLACK OUT EDITION

Euphoria – EWXB8D2

8″ Dual 2Ω Subwoofer — Blackout Edition

DESCRIPTION

8″ blackout edition subwoofer designed for compact daily bass systems where space is limited but clean low-frequency output is required. Suitable for small sealed or ported enclosures in motorcycle bags, UTV pods, and automotive installs.

FEATURES

• Full blackout finish (cone, surround, basket, motor)

• Dual 2Ω voice coils allow 1Ω or 4Ω wiring options

• High-excursion surround supports extended cone movement

• High-temperature voice coil for thermal durability

• Vented motor for consistent cooling during long playback

• Push-button speaker terminals for secure wiring

SPECIFICATIONS

• Size: 8″ Subwoofer

• Impedance: Dual 2Ω

• RMS Power: ~200–250W

• Peak Power: ~600–750W

• Cone: Reinforced composite diaphragm

• Surround: High-roll multi-layer foam

• Voice Coil: High-temperature copper winding

• Motor: Vented ferrite magnet structure

• Mounting Depth: ~4.2″–4.7″

• Cutout Diameter: ~7.1″–7.3″

WIRING OPTIONS

• 1Ω mono (parallel coils)

• 4Ω mono (series coils)

ENCLOSURE GUIDANCE

• Sealed: 0.30–0.50 ft³ → tight, punchy response

• Ported: 0.50–0.90 ft³ @ 34–38 Hz → deeper, fuller output
