Specifications

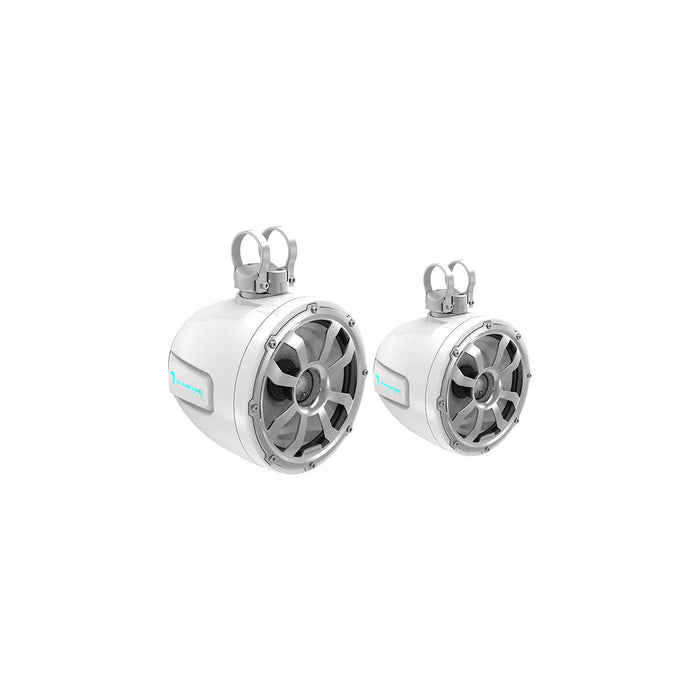

Type: Marine / Powersport Tower Speaker Pod
Series: Diamond Audio Motorsport POD Series
Speaker Size: 8-inch (203 mm)
Configuration: 2-Way Full-Range Coaxial
Power Handling (RMS): 175 W
Power Handling (Peak): 350 W
Nominal Impedance: 4 Ω
Sensitivity (1W/1m): 92 dB
Frequency Response: 45 Hz – 20 kHz
Tweeter Type: 1" Titanium Dome Tweeter (Coaxially Mounted)
Cone Material: Injection-Molded Polypropylene (Waterproof)
Surround Material: UV-Resistant Rubber Surround
Voice Coil: 1.5" High-Temperature Aluminum Former
Magnet Type: Ferrite Motor Structure
Enclosure Material: Marine-Grade Molded Composite Housing
Finish: Gloss White UV-Stabilized Coating
Grille: Integrated Stainless Steel Mesh Grille (White Powder-Coated)
Mounting Bracket: 360° Adjustable Aluminum Clamp
Clamp Compatibility: Fits 1.5" – 2.25" Tubing
Weatherproof Rating: IP65 Marine-Certified (Water, Salt, and UV Resistant)
Input Terminals: Gold-Plated Screw Terminals
Cooling System: Vented Motor and Rear Heat Dissipation Ports
Dimensions (L×W×H): 12.0" × 9.0" × 10.5"
Weight: 8.5 lbs (Each)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Engineered for open-air audio performance in marine, wake, and UTV environments.
• Titanium tweeter provides clean, extended high-frequency output ideal for distance projection.
• 8" midbass driver delivers strong low-end punch and midrange clarity even at high volume.
• Rigid marine-grade composite housing ensures long-term resistance to sun, salt, and vibration.
• Precision-tuned acoustic design optimized for clarity and projection in open spaces.
Key Features
• 2-Way Coaxial Design – Combines deep midbass and crisp highs in one compact enclosure.
• Marine-Grade Construction – UV, salt, and moisture resistant for long-term outdoor reliability.
• Gloss White Finish – Clean, factory-grade aesthetic for boats and UTVs.
• 360° Swivel Mount – Allows precise aiming for optimal sound coverage.
• Heavy-Duty Aluminum Clamp – Secure fit on wake towers or roll cages.
• Integrated Grille Protection – Stainless steel mesh guards against debris and impact.
• Diamond Audio Engineering – Tuned for high-efficiency outdoor performance.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 150–200 W RMS @ 4 Ω (Diamond DXM800.4D or HXM800.4D recommended).
• System Compatibility: Works with marine, powersport, or off-road audio systems.
• Recommended Use: Wake tower, roll cage, or roof-mounted applications.
• Installation Time: Approx. 1–1.5 hours per pair.
• Pro Tip: For best results, use tinned marine-grade wire and seal all connections with heat-shrink to prevent corrosion.
