Specifications

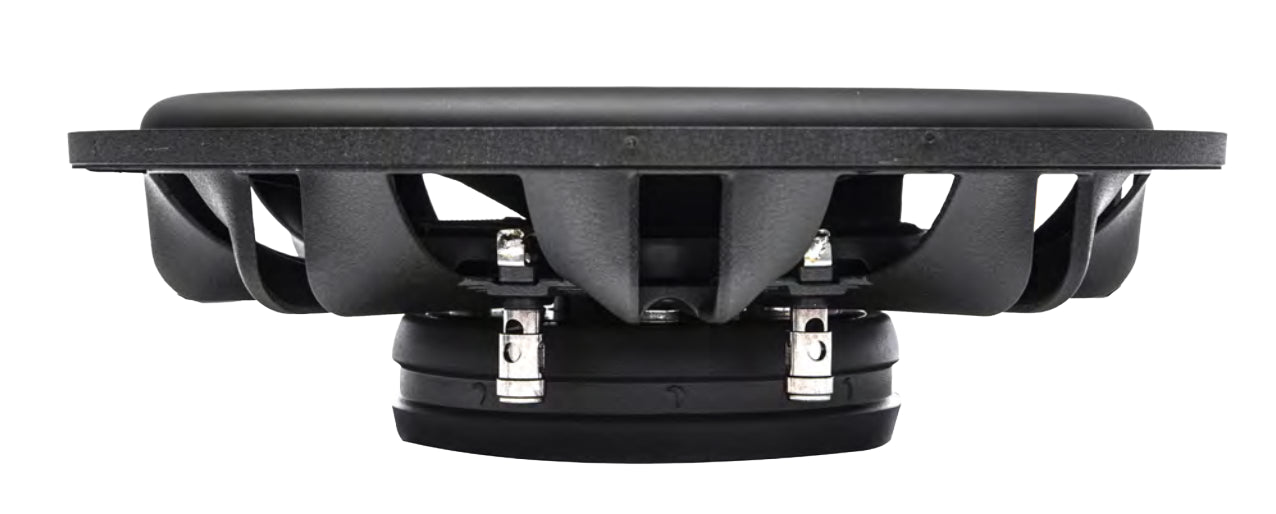

Type: Dual Voice Coil Shallow-Mount Subwoofer
Series: Diamond Audio DS Series
Size: 12-inch (300mm)
Configuration: Dual 4Ω Voice Coils
Power Handling (RMS): 300W
Power Handling (Peak): 600W
Impedance: Dual 4Ω
Sensitivity (1W/1m): 87dB
Frequency Response: 28Hz – 500Hz
Voice Coil Diameter: 2-inch (50.8mm) High-Temperature Copper
Voice Coil Former: Black Anodized Aluminum
Magnet Structure: Slimline High-Energy Ferrite Motor
Cone Material: Non-Pressed Paper Cone with Reinforced Fiber Layer
Dust Cap: Diamond Embossed Poly Dome
Surround: UV-Stabilized Butyl Rubber
Spider: Poly-Cotton Progressive Suspension
Basket: Heavy-Duty Low-Profile Stamped Steel Frame
Cooling System: Rear Vented Motor Assembly for Thermal Stability
Terminal Type: Spring-Loaded Nickel-Plated Compression Terminals
Mounting Depth: 3.6" (92mm)
Mounting Cutout: 11.1" (282mm)
Overall Diameter: 12.5" (318mm)
Weight: 10.5 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Compact shallow-mount design ideal for limited-space enclosures.
• Dual 4Ω voice coils allow wiring flexibility (2Ω or 8Ω configurations).
• Produces clean, accurate low frequencies with high efficiency.
• Optimized for tight, punchy bass in sealed or ported enclosures.
• Engineered for consistent, musical performance under demanding conditions.
Key Features
• Shallow-Mount Profile – Ideal for under-seat, slim-box, or space-limited installs.
• Dual 4Ω Voice Coils – Enables flexible amplifier matching and wiring options.
• Reinforced Paper Cone – Delivers responsive and controlled low-end performance.
• Butyl Rubber Surround – Maintains linear excursion and long-term reliability.
• Low-Profile Basket – Rigid design with minimal mounting depth.
• Vented Motor Assembly – Reduces heat and increases efficiency.
• Diamond Audio Engineering – Tuned for precision, control, and lasting performance.
Performance Integration Notes
• Ideal Pairing: Diamond DMD, DES, or DS Amplifiers rated 300–500W RMS @ 2Ω or 8Ω.
• Recommended Enclosures:
• Sealed: 0.75 – 1.0 cu. ft. for tight, accurate response.
• Ported: 1.25 – 1.5 cu. ft. tuned to 35–38Hz for deeper output.
• System Compatibility: Car, Truck, UTV, or Compact Installations.
• Installation Time: Approx. 1 hour.
• Pro Tip: For optimal low-end output, face the sub toward a boundary (rear wall or corner) to enhance bass coupling in small cabins.
