Specifications

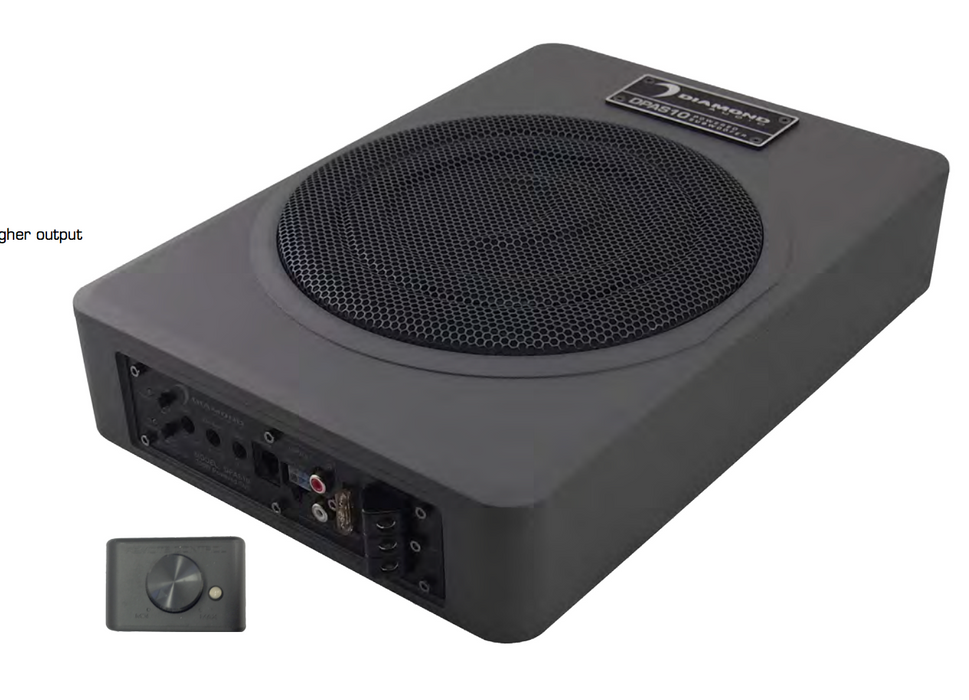

Type: Powered Active Subwoofer Enclosure
Series: Diamond Audio DES / DPAS Series
Subwoofer Size: 10" (254 mm)
Configuration: Single Active Subwoofer with Built-In Amplifier
Amplifier Type: Class D (Integrated)
Power Output (RMS): 250 W
Power Output (Peak): 500 W
Frequency Response: 30 Hz – 150 Hz
Signal-to-Noise Ratio: >90 dB
Input Sensitivity: 0.2 V – 6.0 V
Input Options: RCA Low-Level and High-Level (Speaker) Inputs
Crossover Type: Variable Low-Pass Filter (Adjustable)
Crossover Range: 50 Hz – 150 Hz (12 dB/Octave)
Bass Boost: 0 – 12 dB @ 45 Hz
Phase Adjustment: 0° – 180° Switchable
Enclosure Type: Low-Profile Sealed Enclosure
Cone Material: Reinforced Polypropylene Cone
Surround Material: High-Density Rubber Surround
Voice Coil Diameter: 2" (50 mm) Copper Wound
Cooling System: Rear-Ported Heat Dissipation Vents
Fuse Rating: 25 A (Built-In Blade Fuse)
Power Terminals: Quick-Disconnect Plug with 8 AWG Compatibility
Cabinet Material: High-Density MDF Wrapped in Durable Black Carpet
Dimensions (L×W×H): 13.8" × 9.8" × 2.9" (350 × 250 × 74 mm)
Weight: 12.5 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Compact 10" subwoofer enclosure delivers deep, controlled bass from a slim footprint.
• Built-in Class D amplifier ensures efficient, clean power with minimal current draw.
• Perfect for vehicles with limited space such as trucks, coupes, or UTVs.
• Delivers tight, accurate low-end reinforcement without distortion or port noise.
• Easy plug-and-play installation for quick system integration.
Key Features
• Integrated Class D Amplifier – Simplifies installation and maximizes efficiency.
• Compact Low-Profile Enclosure – Fits under seats, behind panels, or in tight spaces.
• Variable Crossovers – Allows seamless blending with full-range speakers.
• RCA & Speaker-Level Inputs – Compatible with aftermarket or factory head units.
• Bass Boost & Phase Control – Customizes low-end response for your vehicle acoustics.
• Heavy-Duty Construction – Rigid MDF cabinet minimizes resonance.
• Thermal & Overload Protection – Ensures long-term reliability.
• Diamond Audio Quality – Designed for clean, musical bass in compact systems.
Performance Integration Notes
• Ideal Pairing: Factory or aftermarket head units without subwoofer outputs.
• System Compatibility: Works standalone or with full Diamond Audio amplifier systems.
• Recommended Use: Compact bass upgrade for vehicles with limited space.
• Installation Time: Approx. 1 hour (plug-and-play).
• Pro Tip: For optimal performance, mount on a flat, secure surface and isolate with rubber spacers to prevent vibration transfer.
