Specifications

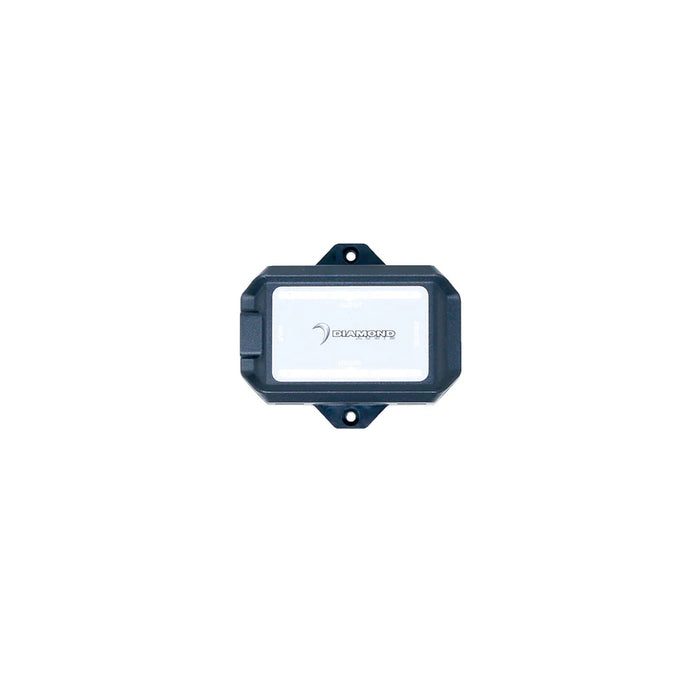

Type: Digital RGB LED Light Controller
Series: Diamond Audio Accessory Series
Control Type: Wireless Bluetooth / RF Remote Control
Voltage Input: 12V DC Automotive / Marine
Maximum Output Power: 144W (12A @ 12V DC)
Output Channels: 4 (RGB + Power)
Lighting Compatibility: Standard 5050 / 2835 RGB LED Strips or Pods
Control Modes: Color Fade, Flash, Music Sync, Static Color, and DIY Programming
Connection Type: Screw-Terminal Block for Power and LED Outputs
Waterproof Rating: IP65 (Controller Enclosure)
Operating Range: Up to 30 ft (9.1 m) via Bluetooth
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Housing Material: UV-Stabilized ABS Plastic with Silicone Seal
Dimensions (L×W×H): 3.7" × 2.4" × 0.9" (94 × 61 × 23mm)
Weight: 0.3 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Provides vibrant color control for RGB lighting systems with wireless app or remote access.
• Supports music-synced lighting effects for dynamic visual performance.
• Compatible with any 12V RGB LED light strip or pod system.
• IP65-rated waterproof design ensures reliability in marine and motorsport environments.
• Easy setup with Bluetooth or included handheld remote.
Key Features
• Digital Control System – Manage RGB colors, brightness, and effects wirelessly.
• Bluetooth + RF Remote – Dual connectivity for flexibility in any install.
• Music Sync Mode – Lights react to audio input for immersive sound and light experience.
• Waterproof Housing – Sealed enclosure for outdoor and high-vibration applications.
• Universal Compatibility – Works with Diamond LED kits or standard RGB lighting systems.
• Compact Size – Fits discreetly behind panels, dashboards, or fairings.
• Diamond Audio Quality – Designed for rugged performance and long-lasting durability.
Performance Integration Notes
• Ideal Pairing: Diamond Audio RGB LED rings, underbody kits, and speaker pods.
• System Compatibility: Motorcycle, Marine, UTV, and Custom Audio Installations.
• Recommended Use: Universal RGB controller for ambient or accent lighting systems.
• Installation Location: Secure near power source or amplifier bay for clean wiring.
• Installation Time: Approx. 20–30 minutes.
• Pro Tip: Use inline fuse protection (10A) and waterproof connectors to ensure safe, long-term performance in outdoor environments.
