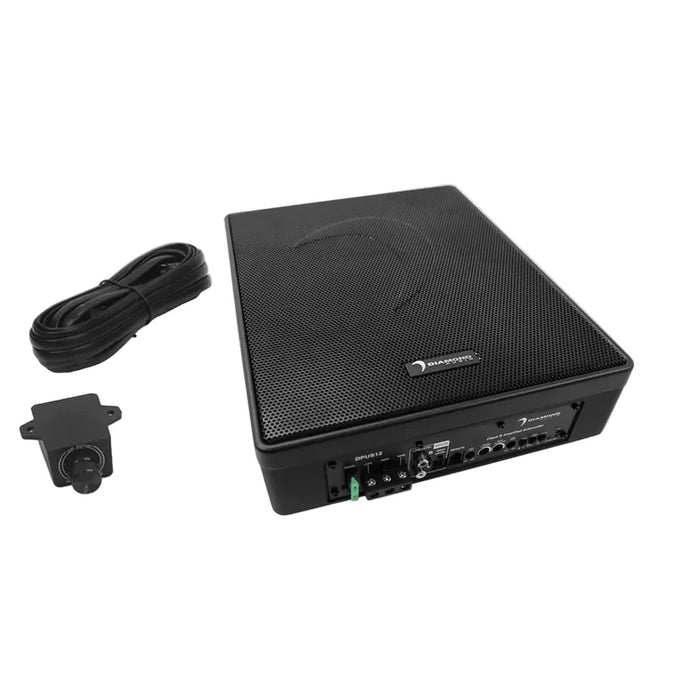

Diamond Audio DPUS12 12" Active Slim Powered Subwoofer with DBEE
Add powerful low-frequency performance without sacrificing valuable vehicle space with the Diamond Audio DPUS12 12" Active Slim Subwoofer. Combining a 12-inch subwoofer, built-in amplifier, advanced bass enhancement, and OEM-friendly signal integration into one compact enclosure, the DPUS12 is an excellent solution for cars, trucks, SUVs, and custom audio installations where space is limited.
Its super-slim die-cast aluminum enclosure measures just 3.17 inches high, allowing the DPUS12 to fit under many seats or in other compact locations where a traditional subwoofer enclosure may not be practical.
Built-In 200W RMS Amplifier
The DPUS12 features an integrated amplifier delivering 200 watts RMS and 400 watts maximum power, eliminating the need for a separate subwoofer amplifier.
The integrated design simplifies installation while providing the power needed to add strong, controlled bass to factory and aftermarket audio systems.
Diamond Bass Enhancement Engine (DBEE)
A standout feature of the DPUS12 is Diamond Audio's Diamond Bass Enhancement Engine (DBEE).
The included dual remote gives the user convenient control over both bass output and bass enhancement. DBEE provides adjustable signal bandwidth along with 0–16 dB of enhancement, allowing the low-frequency response to be tailored to the vehicle, audio system, and listening preference.
Excellent for Factory Radio Integration
With 20V high-level and low-level inputs, the DPUS12 is designed to integrate with both OEM factory audio systems and aftermarket source units.
An automatic turn-on circuit further simplifies factory-system installations, making the DPUS12 an excellent option when adding bass to a vehicle while retaining the original radio.
Built-In System Tuning
The DPUS12 gives installers the controls needed to properly integrate the subwoofer with the rest of the audio system.
An adjustable 50Hz–180Hz low-pass filter, adjustable input sensitivity, phase control, fixed 20Hz subsonic filter, and DBEE adjustments provide flexibility for tuning the subwoofer to different vehicles and speaker systems.
Compact, Durable Construction
The die-cast aluminum chassis and enclosure provide a rigid, durable platform while helping maintain the compact dimensions required for space-conscious installations.
Integrated thermal, short-circuit, and overload protection circuits help protect the amplifier and subwoofer during demanding operation.
Key Features
- 12" active slim powered subwoofer
- Built-in 200W RMS / 400W MAX amplifier
- Super-slim 3.17" enclosure height
- Diamond Bass Enhancement Engine (DBEE)
- Dual remote bass and DBEE control
- Adjustable DBEE signal bandwidth
- 0–16 dB DBEE enhancement
- Die-cast aluminum chassis/enclosure
- 20V high-level and low-level inputs
- Designed for OEM and aftermarket audio integration
- Automatic turn-on circuit
- Adjustable input sensitivity
- Adjustable 50Hz–180Hz low-pass filter
- Fixed 20Hz subsonic filter
- Phase adjustment
- PWM power supply
- Power / Protect / Status LED indicator
- Thermal protection
- Short-circuit protection
- Overload protection
- Ideal for cars, trucks, SUVs, and compact installations
Specifications
Model: DPUS12
Subwoofer Size: 12"
Type: Active Slim Powered Subwoofer
RMS Power: 200 Watts
Maximum Power: 400 Watts
Enclosure: Die-Cast Aluminum
High-Level Input: Up to 20V
Low-Level Input: Yes
Low-Pass Filter: 50Hz–180Hz Adjustable
Subsonic Filter: 20Hz Fixed
DBEE Adjustment: 0–16 dB
Auto Turn-On: Yes
Power Supply: PWM
Dimensions: 13.58" L × 11.10" W × 3.17" H
Metric Dimensions: 345 × 282 × 80.5 mm
Why Choose the DPUS12?
The Diamond Audio DPUS12 is designed for customers who want noticeably stronger bass without installing a large enclosure and separate amplifier. Its combination of a 12-inch subwoofer, integrated 200W RMS amplifier, 20V OEM integration capability, DBEE technology, and ultra-slim aluminum enclosure makes it a versatile bass upgrade for both factory and aftermarket car audio systems.
