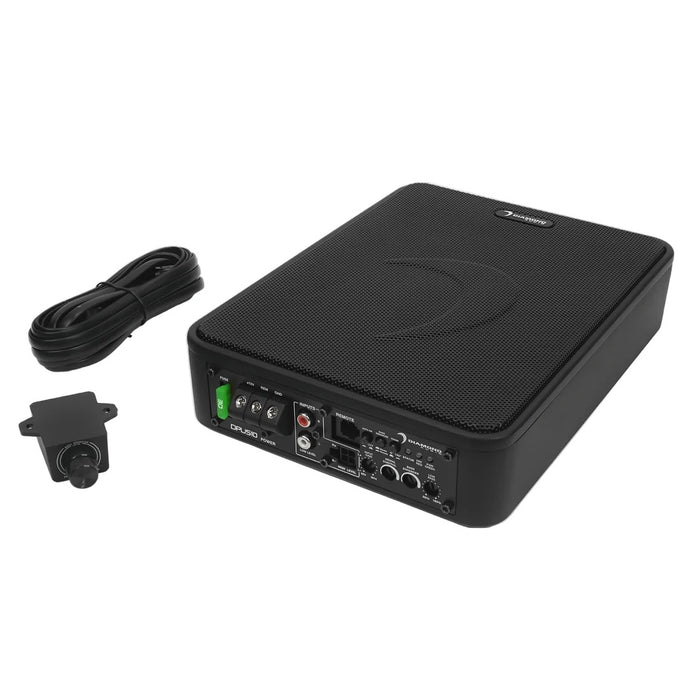

Diamond Audio DPUS10 10" Active Slim Powered Subwoofer with DBEE
Add powerful, controlled bass to factory or aftermarket audio systems without sacrificing valuable interior space. The Diamond Audio DPUS10 combines a 10-inch subwoofer, built-in 200-watt RMS amplifier, advanced OEM integration, and Diamond's Bass Enhancement Engine into an ultra-slim cast-aluminum enclosure.
Deep Bass in a Slim Profile
The cast-aluminum DPUS10 fits under seats, delivering 200W RMS through a 10” subwoofer while saving space without compromising powerful output.
Diamond Audio DPUS10 10" Active Slim Powered Subwoofer with DBEE
Add powerful, controlled bass to factory or aftermarket audio systems without sacrificing valuable interior space. The Diamond Audio DPUS10 combines a 10-inch subwoofer, built-in 200-watt RMS amplifier, advanced OEM integration, and Diamond's Bass Enhancement Engine into an ultra-slim cast-aluminum enclosure.

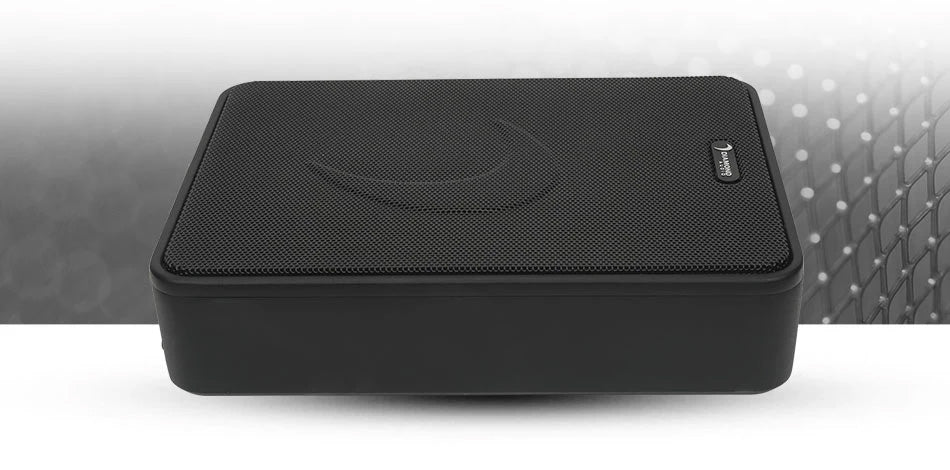

At only 2.76 inches tall, the DPUS10 is designed for under-seat and other space-limited installations in cars, trucks, SUVs, and custom vehicles.
Powerful Bass in a Compact Package
The DPUS10 features an integrated 10-inch subwoofer powered by a 200W RMS / 400W MAX amplifier. Its rigid die-cast aluminum enclosure provides a durable, compact platform capable of delivering strong low-frequency performance without requiring a traditional subwoofer box and separate amplifier.
Designed for Factory Audio Integration
Modern factory audio systems can make adding a subwoofer challenging. The DPUS10 addresses this with 20V high-level and low-level inputs, allowing it to integrate with a wide range of OEM and aftermarket systems.
A built-in auto turn-on circuit further simplifies factory-radio installations and can eliminate the need for additional turn-on adapters in compatible applications.
Diamond Bass Enhancement Engine — DBEE
The DPUS10 features Diamond Audio's Diamond Bass Enhancement Engine (DBEE) to help restore bass impact when working with factory audio signals that may be weak or compressed.
The included dual remote provides control over traditional bass level as well as DBEE bass enhancement. Installers can adjust the DBEE signal bandwidth and apply 0–16 dB of enhancement to tailor low-frequency performance to the vehicle and audio system.

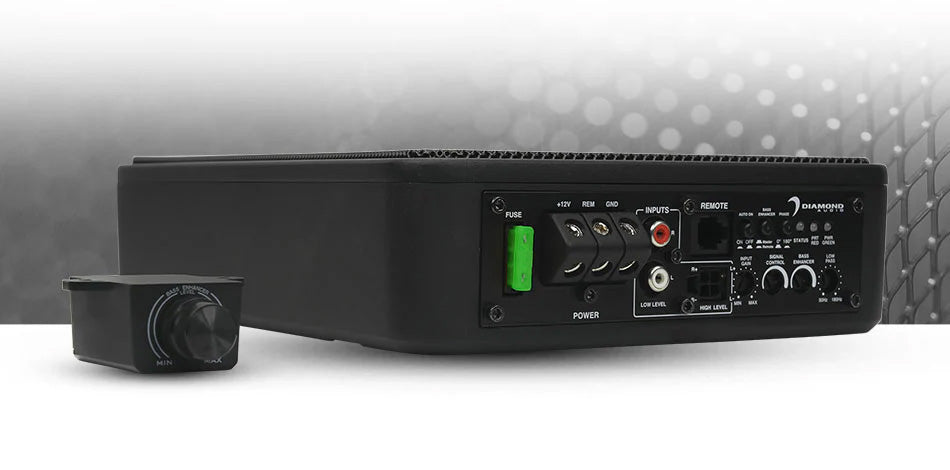

Built-In Tuning Controls
For proper system integration, the DPUS10 provides an adjustable 50Hz–180Hz low-pass filter, fixed 20Hz subsonic filter, and phase adjustment.
These controls allow installers to better blend the DPUS10 with the vehicle's existing speakers while keeping unwanted frequencies out of the subwoofer.
Key Features
- 10" active slim powered subwoofer
- Built-in 200W RMS / 400W MAX amplifier
- Ultra-slim 2.76" enclosure height
- Diamond Bass Enhancement Engine (DBEE)
- Dual remote bass controls
- Adjustable DBEE signal bandwidth
- 0–16 dB DBEE level adjustment
- 20V high-level and low-level inputs
- Designed for OEM and aftermarket audio integration
- Auto turn-on circuit
- Die-cast aluminum chassis and enclosure
- Adjustable 50Hz–180Hz low-pass filter
- Fixed 20Hz subsonic filter
- Phase adjustment
- PWM power supply
- Power / Protect / Status LED
- Thermal, short-circuit, and overload protection
- Excellent for under-seat and space-limited installations
Specifications
Model: DPUS10
Subwoofer: 10"
Type: Active Slim Powered Subwoofer
RMS Power: 200 Watts
Maximum Power: 400 Watts
Enclosure: Die-Cast Aluminum
High-Level Input: Up to 20V
Low-Level Input: Yes
DBEE Adjustment: 0–16 dB
Low-Pass Filter: 50Hz–180Hz
Subsonic Filter: 20Hz Fixed
Auto Turn-On: Yes
Power Supply: PWM
Dimensions: 13.58" L × 9.65" W × 2.76" H
Metric Dimensions: 345 × 245 × 70 mm
Compact Bass Without the Traditional Subwoofer Box
For customers who want stronger bass while keeping the installation compact and factory-clean, the Diamond Audio DPUS10 provides an excellent all-in-one solution. Its combination of a 10-inch subwoofer, 200W RMS amplifier, 20V OEM integration, DBEE technology, and 2.76-inch slim enclosure makes it ideal for adding bass to cars, trucks, and SUVs where space is at a premium.
