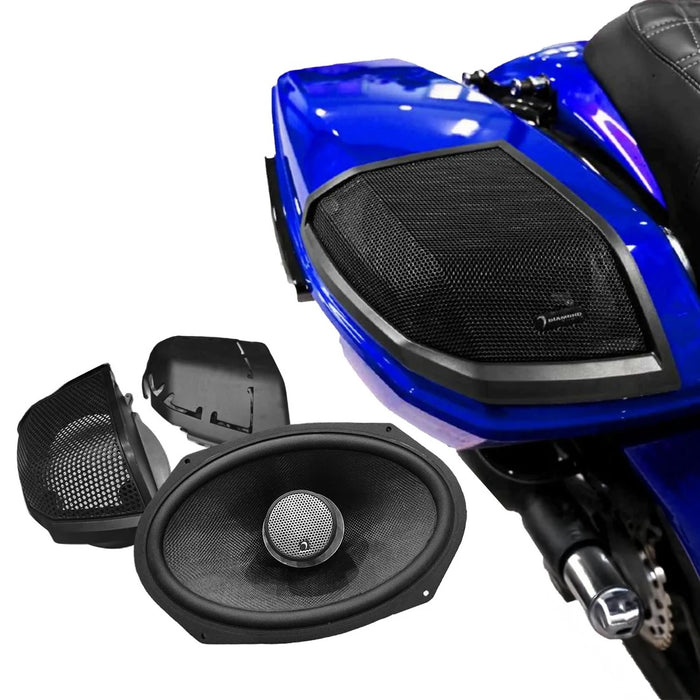

Diamond Audio 2024+ Harley-Davidson® 8x12 Cut-In Lid Kit with HXM812F2BK Speakers – 2Ω
Bring serious output to your 2024+ Harley-Davidson® audio system with this complete Diamond Audio cut-in saddlebag lid kit featuring a pair of HXM812F2BK 8x12" 2-ohm coaxial speakers.
Designed specifically for 2024+ Harley-Davidson bag applications, this system combines Diamond Audio's patent-pending cut-in lid design with the massive cone area of its 8x12" coaxial speakers. The result is a high-output saddlebag audio solution engineered to deliver powerful midbass, excellent clarity, and the volume needed for motorcycle audio—without giving up the entire saddlebag to a traditional enclosure.
Complete Harley-Davidson Saddlebag Audio Solution
The kit provides the components needed to convert compatible factory saddlebag lids for Diamond's oversized 8x12" speakers. Included cutting templates help provide accurate placement, while the two-piece waterproof housing, integrated nut inserts, mesh grilles, mounting hardware, and plug-and-play wiring harness help create a clean, secure installation.
At the heart of the system is a pair of Diamond Audio HXM812F2BK 8x12" 2Ω coaxial speakers, rated at 250 watts RMS / 500 watts maximum power. Their large cone area provides substantially more radiating surface than conventional motorcycle speakers, making them an excellent choice for high-output Harley-Davidson audio builds.
Built for High-Output Motorcycle Audio
The HXM812F2BK uses a rigid carbon-fiber cone designed for increased output along with an oversized 1.5" titanium dome tweeter for strong high-frequency performance.
An ultra-light neodymium motor structure and high-excursion suspension support the output demands of powerful motorcycle audio systems while keeping the speaker assembly lightweight.
The speakers are also engineered for the conditions encountered on a motorcycle, with water-spray and salt-water resistance, UV-stable materials, and a high-temperature injection-molded composite basket.
Key Features
-
Designed for compatible 2024+ Harley-Davidson® saddlebag applications
-
Complete cut-in lid conversion system
-
Pair of Diamond Audio HXM812F2BK 8x12" coaxial speakers
-
2-ohm nominal impedance
-
250W RMS / 500W Max power handling
-
Large 8x12" cone area for powerful output and midbass
-
Rigid carbon-fiber speaker cones
-
Oversized 1.5" titanium dome tweeters
-
Lightweight neodymium motor structures
-
High-excursion suspension
-
Flush-mount or back-mount capability
-
Water-spray and salt-water resistant
-
100% UV-stable construction
-
High-temperature composite speaker baskets
-
Waterproof two-piece lid housing
-
Integrated nut inserts for secure mounting
-
Cutting templates, mesh grilles and mounting hardware included
-
Plug-and-play wiring harness included
-
Designed to retain valuable saddlebag storage space
Speaker Specifications
Speaker Size: 8x12" 2-Way Coaxial
Quantity: Pair
Nominal Impedance: 2 Ohm
Power Handling: 250W RMS / 500W Max
Sensitivity: 91 dB (1W/1m)
Frequency Response: 55 Hz–20 kHz
Mounting Depth: 105.73 mm / 4.16"
Cut-Out: 265.46 mm / 10.45"
Overall Dimensions: 189 × 290 mm / 7.4" × 11.43"
Overall Height: 120 mm / 4.72"
What's Included
-
(2) Diamond Audio HXM812F2BK 8x12" 2Ω coaxial speakers
-
2024+ Harley-Davidson cut-in lid components
-
Waterproof two-piece speaker housings
-
Mesh speaker grilles
-
Precision cutting templates
-
Mounting hardware
-
Plug-and-play wiring harness
Professional installation is recommended. Cutting of the factory saddlebag lids is required for installation.
For Harley-Davidson® riders looking for a serious saddlebag speaker upgrade, this Diamond Audio 8x12 cut-in lid system delivers the cone area, power handling, durability, and installation components needed for a high-output motorcycle audio build.
