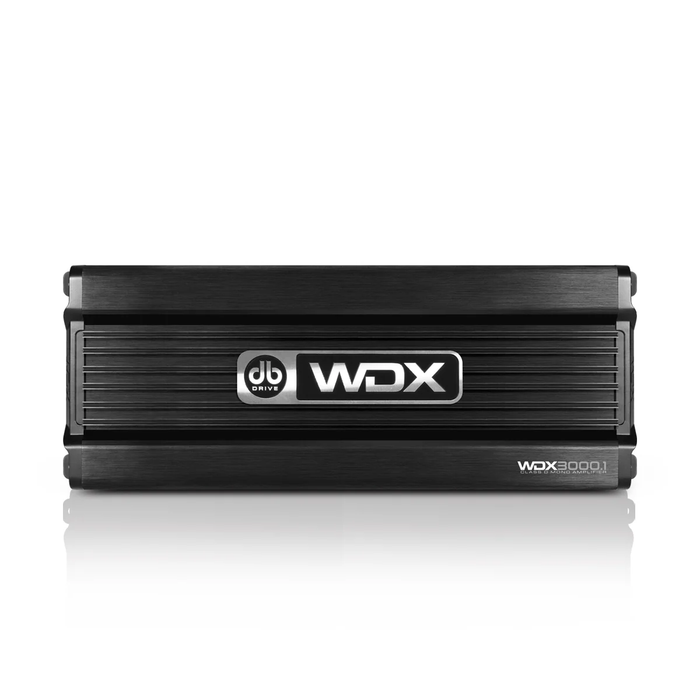

DB Drive - WDX3000.1 - 3000W CLASS D MONO-BLOCK AMPLIFIER

DB Drive - WDX3000.1 - 3000W CLASS D MONO-BLOCK AMPLIFIER

by DB Drive
Sold out
$499.95
$499.95 - $499.95
$499.95
$429.95
$429.95 - $429.95
$429.95

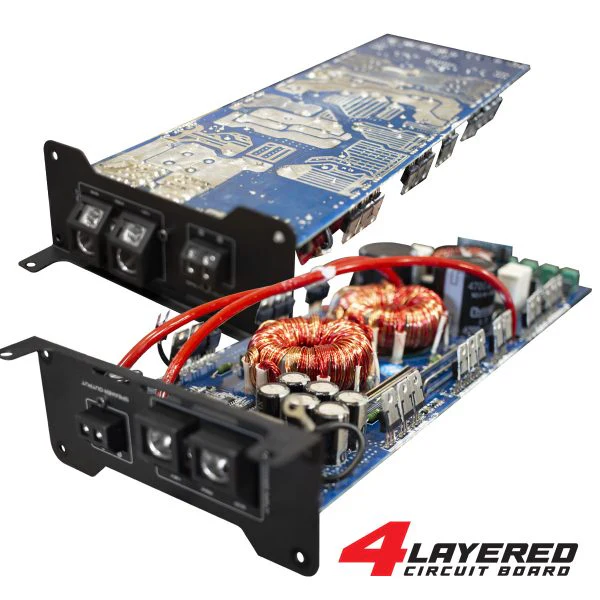

  • CLASS “D” CIRCUITRY

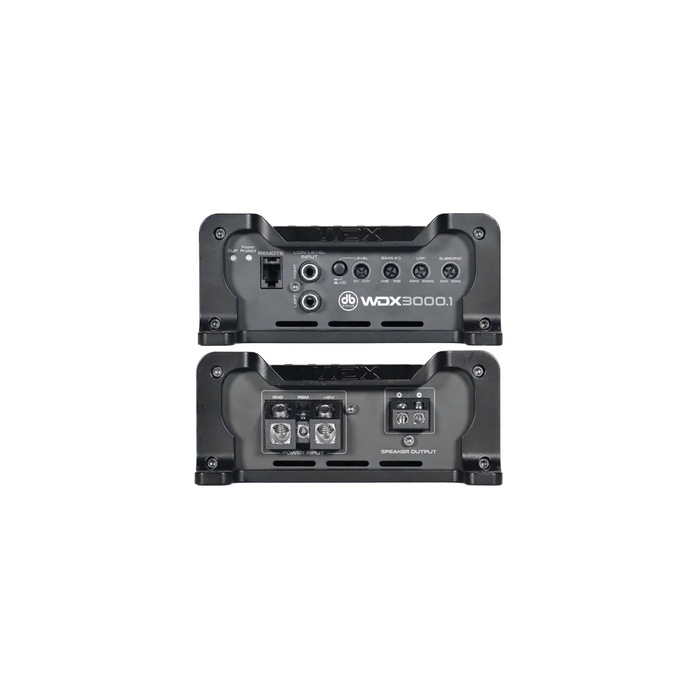

  • Direct Connect Speaker Terminals
  • 4 Gauge Power Wire Input
  • CHM- Collective Heat Management
  • ACT – Adaptive Crossover Technology
  • SESI – Signal Evaluation Status Indicator
  • APC – Audio Protection Circuit
  • Included Remote Level Control

3000 Watts x 1 @ 1 ohm

1500 Watts x 1 @ 2 ohm

750 Watts x 1 @ 4 ohm

PHYSICAL STRUCTURE



Length (A) 15.25″ / (387.4mm)
Width (B) 5.50″ / (139.7mm)
Height (C) 2.38″ / (60.5mm)




GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
1 x 3000 Watts @ 1Ω
1 x 1500 Watts @ 2Ω
1 x 750 Watts @ 4Ω



PARAMETERS
Frequency Response 20Hz ~ 300Hz
S/N Ratio < 95 dB
Low Level Input 6V – 0.2V
Variable High Pass Filter (12DB Slope) 40Hz ~ 300Hz
Variable Low Pass Filter (12DB Slope) 10Hz ~ 40Hz
Bass Equalizer 0dB – 9dB
Working Voltage 12-15 Volts
