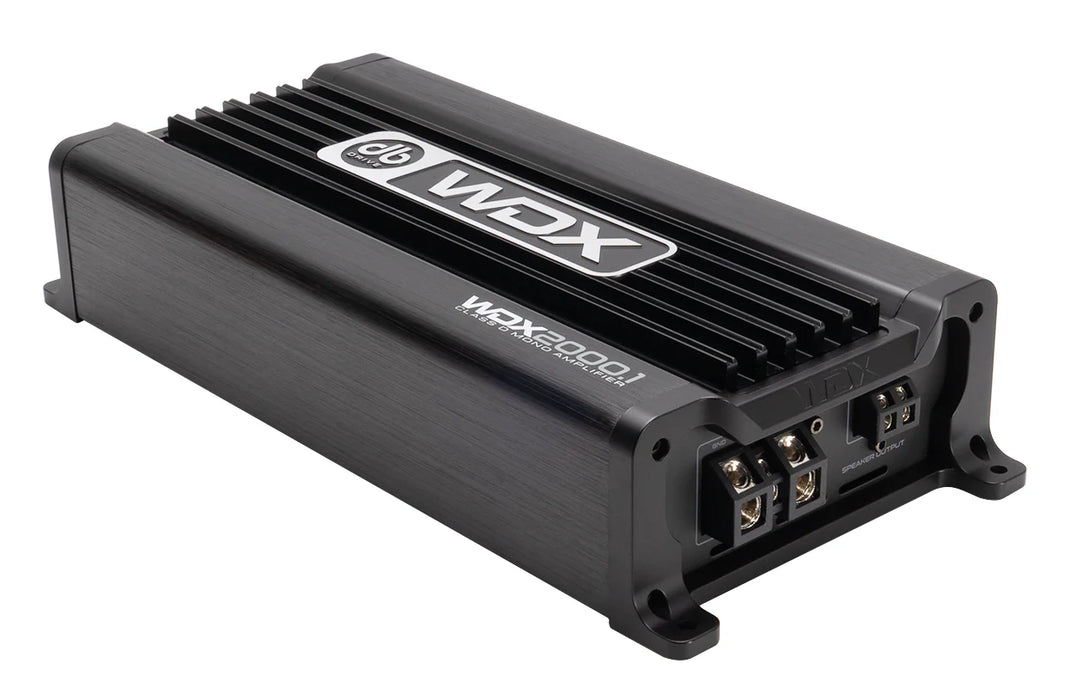

DB Drive - WDX2000.1 - 2000W CLASS D MONOBLOCK AMPLIFIER

Name: DB Drive WDX2000.1 – WDX Series Class-D Mono Amplifier

Power Output (RMS):
• 2,000W × 1 @ 1 Ω
• 1,000W × 1 @ 2 Ω
• 500W × 1 @ 4 Ω

Frequency Response: 20 Hz – 300 kHz

Signal-to-Noise Ratio (S/N): < 95 dB

Input Sensitivity: 0.2 V – 6 V

Filters / Controls:
• Variable High-Pass Filter (12 dB/oct): 40 Hz – 300 Hz
• Variable Low-Pass Filter
• Bass / Equalizer control
• Remote level / bass knob included

Operating Voltage Range: 12 V – 15 V

Features:
• High-efficiency Class D design
• Heat management and protective circuitry
• Direct-connect speaker terminals
• Support for 4-gauge power wire

Physical Dimensions: 12.13″ × 5.50″ × 2.38″
