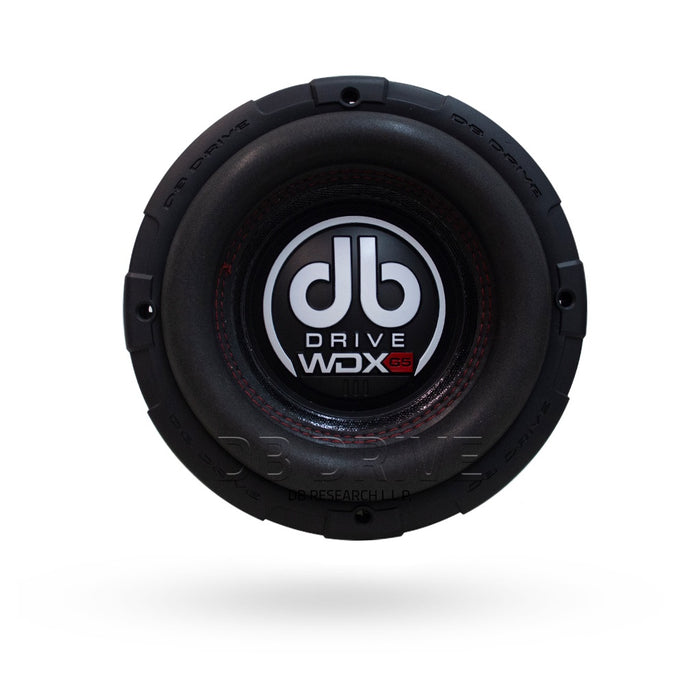

DB Drive - WDX10G5.2 - 10" WOOFER 2 OHM DVC 1500 NOMINAL / 3000 MAX

Specifications
Type: 10" High-Performance Competition Subwoofer – Dual 2 Ohm Voice Coil
Nominal Power Handling (RMS): 1500 Watts
Max Power Handling (Peak): 3000 Watts
Voice Coil Configuration: Dual 2 Ohm
Voice Coil Diameter: 3" 4-Layer High-Temperature Copper Wound
Cone Material: Non-pressed reinforced paper cone
Surround Material: High-roll foam surround for extreme excursion
Spider: Dual progressive Nomex spider for linear control
Basket: Heavy-duty cast aluminum frame
Magnet Structure: Triple-stacked high-energy ferrite magnet assembly
Motor Venting: Direct voice-coil cooling with multi-port airflow system
Frequency Response: 28 Hz – 900 Hz
Sensitivity: 86 dB
Mounting Depth: 7.40"
Cutout Diameter: 9.25"
Overall Diameter: 10.8"
Impedance: Dual 2 Ohm
Warranty: 1-year manufacturer warranty

Key Features
• Dual 2 Ohm configuration allows flexible wiring for 1 Ohm or 4 Ohm final load setups
• 3" 4-layer copper voice coils provide high thermal capacity and reliable long-term output
• Non-pressed reinforced cone offers clean, controlled bass with exceptional durability
• Triple-stacked ferrite magnet generates powerful motor force for high SPL performance
• Dual Nomex spider and high-roll surround maintain consistent cone alignment under heavy load
• Optimized vented motor design improves airflow and reduces heat buildup during continuous play
• Designed for competition-level systems requiring strong low-frequency extension and precision
