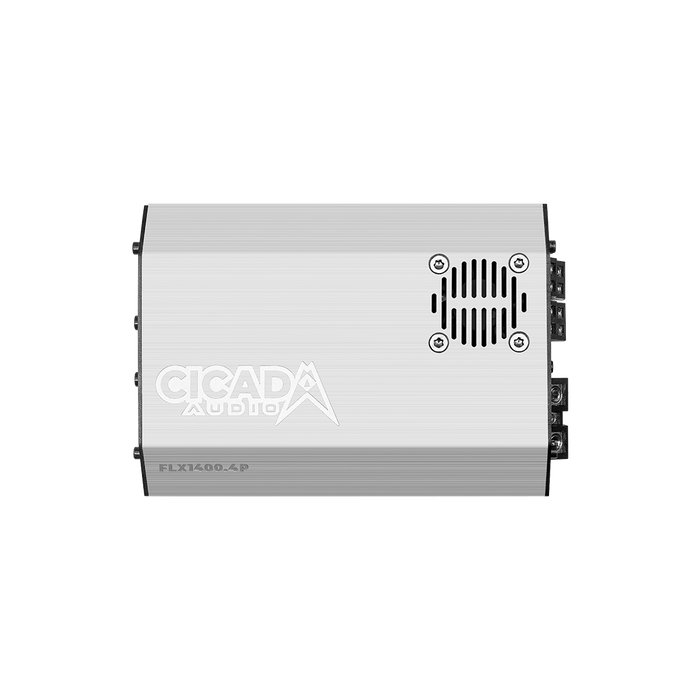

    FLX1400.4


    4 CHANNEL POWER AMPLIFIER

    Requires 4 AWG Power Wire – HDPG4K

    • 4 X 200 WRMS into 4 ohms @ 12.5 Vdc
    • 4 X 225 WRMS into 4 ohms @ 14.4 Vdc
    • 4 X 300 WRMS into 2 ohms @ 12.5 Vdc
    • 4 X 350 WRMS into 2 ohms @ 14.4 Vdc

    BRIDGED MONO – 2 CHANNEL

    • 2 X 600 WRMS into 4 ohms @ 12.5 Vdc
    • 2 X 700 WRMS into 4 ohms @ 14.4 Vdc
    • Frequency response – 20-20,000 +/- 3dB THD < 0.5%
    • Operating Voltage: 8 V – 16 V
    • Current Draw (Music): 50 A
    • Current Draw (Max): 220 A
    • Recommended Fuse (Music): 120 A
    • Total Efficiency: 79%
    • Damping Factor: 200
    • SNR: 91 dB
    • Crossover LPF/FULL/HPF: 30 TO 300Hz
    • Slope:12dB per octave
    • Gain: 0.2V – 12 Vac
    • Turn-On Configuration: REM/DC
    • THD + N (10% Rated Power): 0.1%
    • Product Dimensions (Inches / Millimeters): overall 7.9 x 4.9 x 2.0 in / 200 x 125 x 51 mm chassis only – 6 5/8 x 4.9 x 2.0 in / 168 x 125 x 51 mm
