Specifications
Type: Compact Class D Full-Range 4-Channel Amplifier
Power Output (RMS):
• 4 x 100W @ 4Ω
• 4 x 150W @ 2Ω
• 2 x 300W @ 4Ω (Bridged)
Total Power: 600W RMS / 1,200W Max
Frequency Response: 10Hz – 35kHz (±1dB)
Signal-to-Noise Ratio: >90dB
Input Sensitivity: 200mV – 6V
Input Impedance: 22kΩ
THD (Total Harmonic Distortion): <0.05%
Crossover Type: Variable High-Pass / Low-Pass Filters
Crossover Range: 50Hz – 500Hz
Bass Boost: 0 – 12dB @ 45Hz
Fuse Rating: 2 × 25A (Internal Blade Fuse)

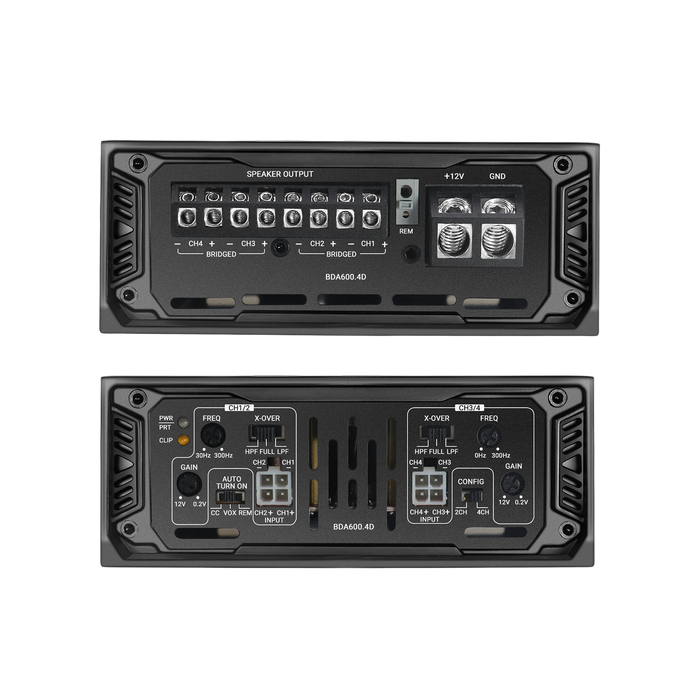

Power Terminals: 4 AWG Input / 8 AWG Output
Dimensions (L×W×H): 8.5" × 5.5" × 1.8"
Cooling System: Advanced Thermal Management with Micro-Heatsink Design
Warranty: 2-Year Manufacturer Warranty
Performance Specs
• Dynamic Class D Power: Delivers clean, punchy output with ultra-low distortion — ideal for midbass and coaxial speaker setups.
• High-Efficiency Circuitry: Optimized MOSFET power supply for maximum performance with minimal current draw.
• Bridgeable Flexibility: Supports bridged operation for powering high-output mids or compact subwoofer channels.
• Wide Frequency Range: Clean, linear response from ultra-low bass to crisp highs.
• Thermal and Short Protection: Smart circuitry prevents overload, overheating, or voltage drops.
Key Features
• Compact Powerhouse Design – Small footprint with massive performance; perfect for Harley-Davidson®, UTV, and custom installs.
• Full-Range Class D Technology – Delivers powerful sound while staying cool under pressure.
• Variable Crossover Controls – Fine-tune each channel for exact system balance and speaker protection.
• Bridgeable Output Options – Configurable as 4, 3, or 2-channel operation.
• Low Noise Preamp Stage – Ensures exceptional clarity and signal purity.
• Cicada Audio Engineering – Tuned for maximum efficiency in motorcycle and powersport environments.
• Conformal Coated Board – Moisture and vibration resistant for extreme durability.
Performance Integration Notes
• Ideal Pairing: Cicada CM, CH, and CX Series Speakers or Midbass Drivers.
• System Compatibility: Harley-Davidson®, UTV, Marine, or Compact Car Audio Systems.
• Mounting: Compact chassis fits under fairings, side panels, or saddlebags.
• Installation Time: Approx. 45–60 minutes.
