Product Title

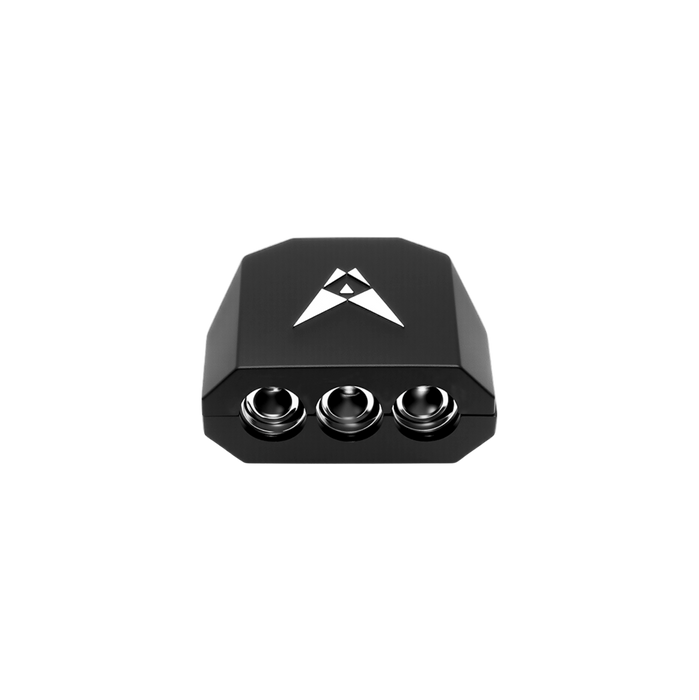

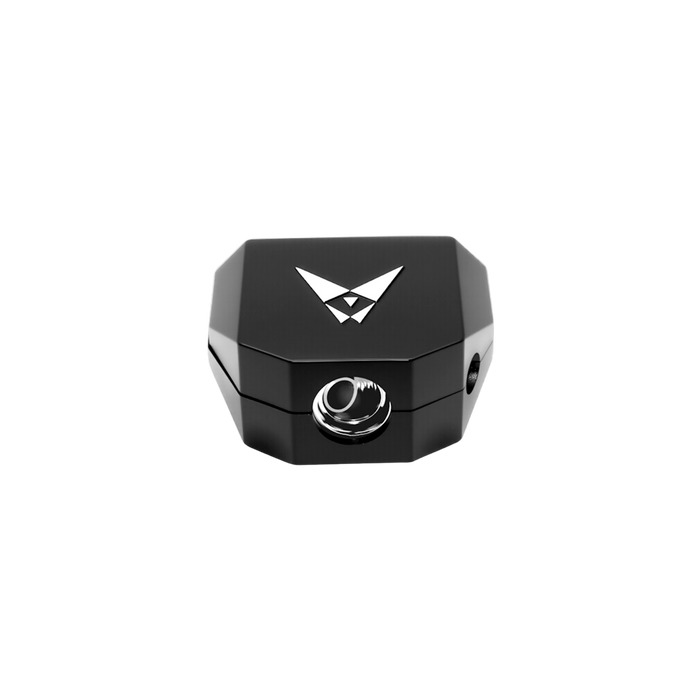

Cicada Audio CHDDB13X2 – Low Profile 2 AWG to Triple 4 AWG Distribution Blocks – 2 Pack
Product Description
The Cicada Audio CHDDB13X2 is a compact, low-profile power and ground distribution block set designed for clean, high-current multi-amplifier audio installations. Each solid-brass block accepts a single 2 AWG input and provides three 4 AWG outputs, making it easy to split a main power or ground run between multiple amplifiers.
The package includes two distribution blocks, allowing one to be used for power and the other for ground. The low-profile design makes the CHDDB13X2 especially useful in Harley-Davidson motorcycle audio, powersports, and other space-limited installations where conventional distribution blocks can be difficult to mount.
Key Features

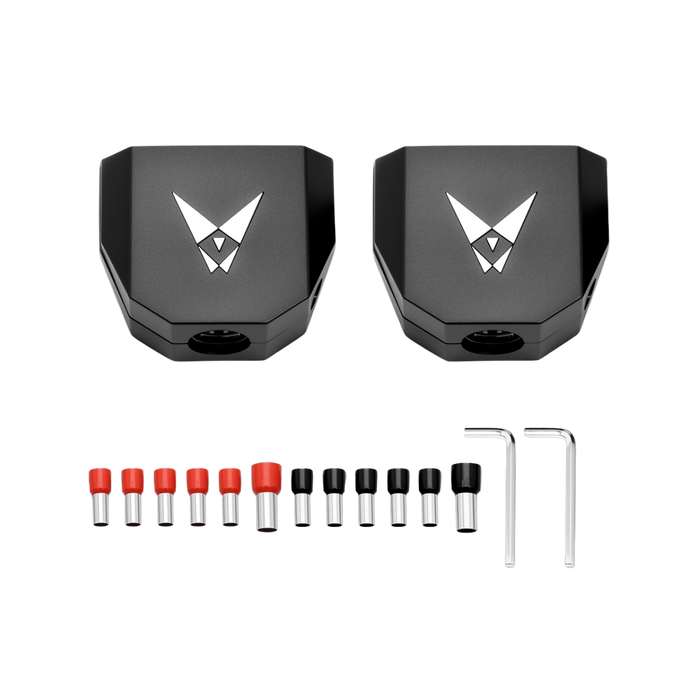

- Two distribution blocks per package
-
One block for power and one for ground
- One 2 AWG input per block
- Three 4 AWG outputs per block
-
Supports distribution to up to three amplifiers
-
Solid brass construction for high-current conductivity
-
Compact low-profile design
- Excellent for multi-amplifier systems
- Ideal for Harley-Davidson motorcycle audio and other tight installation locations
- Creates a clean, organized power and ground distribution point
Cicada's own specification is one 2 AWG input and three 4 AWG outputs per block. Some retailers also describe the terminals as accepting smaller wire sizes, but for the UM listing I'd stick with Cicada's official 2 AWG → 3 × 4 AWG specification.
Ideal For
Multi-amplifier Harley-Davidson builds, motorcycle audio systems, powersports installations, compact amplifier racks, and any installation requiring a clean transition from a main 2 AWG power/ground run to multiple 4 AWG amplifier runs.
Specifications
Brand: Cicada Audio
Model: CHDDB13X2
Product Type: Power/Ground Distribution Block Set
Quantity: 2 Blocks
Input per Block: 1 × 2 AWG
Outputs per Block: 3 × 4 AWG
Construction: Solid Brass
Design: Low Profile
Application: Power & Ground / Multi-Amplifier Distribution
