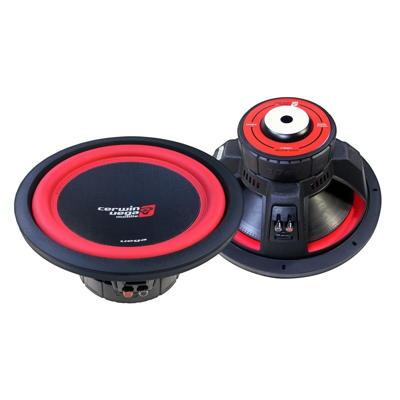

Cerwin Vega - V124DV2 - 450W RMS/ 1300 MAX Power Handling

Power Handling:
• RMS Power: 450 W
• Peak Power: 1300 W

Voice Coil / Impedance:
• Dual 4-Ohm (DVC) configuration
• 2.5″ high-temperature aluminum voice coil

Performance Specifications:
• Frequency Response: 25 Hz – 500 Hz
• Sensitivity: 85.6 dB (1 W / 1 m)
• Resonant Frequency (Fs): ~30 Hz
• Recommended Power Range: 300 W – 450 W RMS
• Recommended Enclosure Type: Sealed or Ported

Construction / Materials:
• Parabolic one-piece carbon-fiber reinforced polypropylene cone
• Double-stitched red Santoprene surround
• High-power single-stacked motor structure
• Proprietary stamped Vega basket design
• Vented pole piece for improved thermal cooling

Mounting Dimensions:
• Mounting Depth: 5.67″
• Cutout Diameter: 10.7″
• Overall Diameter: 12.6″
• Displacement: 0.093 cu. ft.

Enclosure Recommendations:
• Sealed: 1.25 cu. ft. (for tight, accurate bass)
• Ported: 1.75 cu. ft. tuned to 40 Hz (for deeper, louder output)
