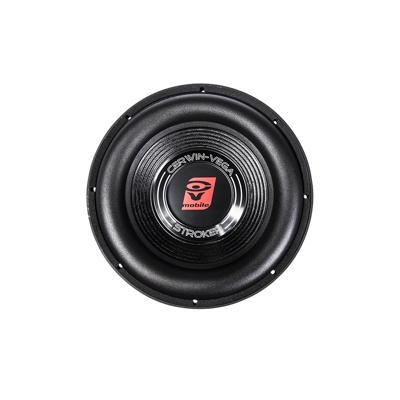

Cerwin Vega - ST104D - Stroker 800W RMS 10" Subwoofer

DESCRIPTION

• 10-inch Stroker series high-output subwoofer

• Dual 4-ohm voice coil configuration

• 800W RMS class performance subwoofer for high-SPL motorcycle, powersports, and automotive enclosures

FEATURES

• High-mass motor structure for elevated magnetic control and excursion

• Rigid reinforced composite cone for clean low-frequency response

• Oversized rubber surround supports long excursion operation

• Dual 4Ω voice coils allow flexible wiring (2Ω / 8Ω final impedance options)

• Designed for high-output bass in compact to medium-sized enclosures

• Vented pole piece and spider landing for thermal and mechanical cooling

SPECIFICATIONS

• Size: 10 in (254 mm)

• Voice Coil Configuration: Dual 4 Ω (DVC)

• RMS Power: 800W

• Peak Power: 1600W

• Frequency Response: ~28 Hz – 250 Hz (enclosure dependent)

• Sensitivity: High output / motor-dominant efficiency

• Cone Material: Reinforced composite cone

• Surround: Oversized rubber high-excursion surround

• Voice Coil: High-temperature copper wound, multi-layer

• Basket: Heavy-duty cast frame

• Motor: High-density ferrite with vented pole cooling

DIMENSIONS

• Overall Diameter: ~10.8 in (274 mm)

• Cutout Diameter: ~9.2 in (234 mm)

• Mounting Depth: ~6.0 in (152 mm)

• Top Mount Height: Raised surround, requires grill clearance when surface-mounted

• Recommended Sealed Volume: ~0.65 – 1.1 ft³ (18 – 31 L)

• Recommended Ported Volume: ~1.1 – 1.8 ft³ (31 – 51 L), tuning ~34–38 Hz

• Weight: Heavy motor assembly (intended for rigid baffle mounting)

FITMENT

• Motorcycle saddlebag enclosures (ensure depth & bracing — this driver is not shallow)

• Automotive trunk / hatch enclosures

• Powersports & marine enclosures with proper sealing and panel rigidity

• Best driven by mid-to-high power Class D monoblock amplifiers

INCLUDES

• (1) ST104D Subwoofer (sold each)
