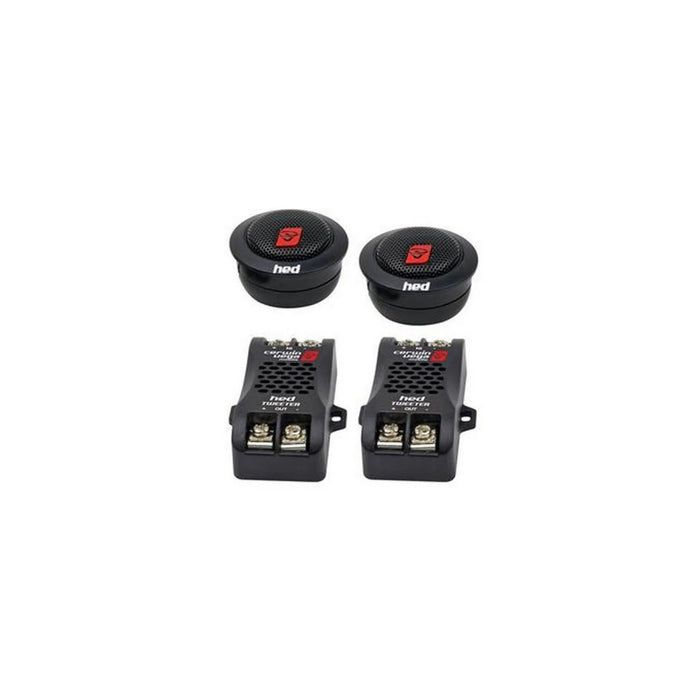

Cerwin Vega - H7TAK - 1" tweeter add-on kit - 300W MAX / 35W RMS POWER HANDLING

DESCRIPTION

• 1-inch tweeter add-on kit

• 35W RMS / 300W Max power handling

• Sold as a pair

• Used to add high-frequency clarity to existing speaker systems

FEATURES

• High-output tweeter designed for vocal and high-frequency projection

• Compact mount design fits fairings, dash panels, grills, pods, and bag lids

• Weather-resistant construction for motorcycle & powersports environments

• External inline high-pass filter network included

• Designed to pair with coaxial or midrange speakers for improved front-stage detail

SPECIFICATIONS

• Tweeter Size: 1 in (25 mm)

• RMS Power: 35W

• Peak Power: 300W

• Frequency Range: ~3 kHz – 20 kHz (system dependent)

• Impedance: 4 Ω

• Sensitivity: High-efficiency (open-air tuned)

• Diaphragm Material: Dome-style high-frequency diaphragm

• Voice Coil: High-temperature copper-wound

• Housing: Compact surface / flush adaptable design

DIMENSIONS

• Overall Diameter: ~1.7 in (43 mm)

• Mounting Cutout (Flush): ~1.4 in (36 mm)

• Mounting Depth: 0.9 in (23 mm) (shallow fit for fairings/dash)

• Top Mount Height: Low-profile horn lip for grille and pod clearance

• Weight (per tweeter): Light mount-load for plastic panel compatibility

FITMENT

• Motorcycle fairings, inner fairing grills, dash speaker pods, bag lid grills, and upper tweeter plates

• Suitable for powersports, marine, and automotive applications

• Recommend high-pass filtering above 4 kHz (final crossover point varies by tuning)

INCLUDES

• (2) H7TAK Tweeters

• Inline passive high-pass filters

• Mounting hardware (varies by install surface)
