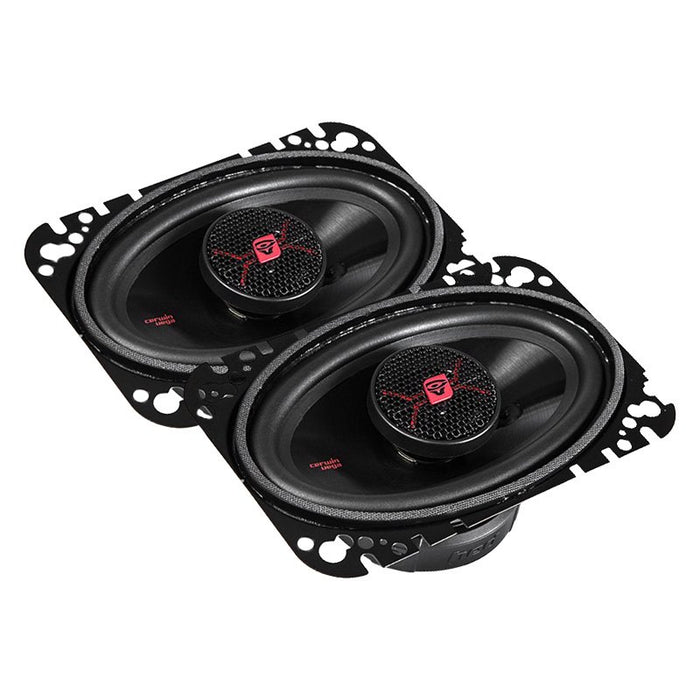

Cerwin Vega - H746 - 4"X6" 2-way coaxial set - 275W MAX / 30W RMS POWER HANDLING

DESCRIPTION

• 4" × 6" 2-way coaxial speaker set

• 30W RMS / 275W Max power handling

• Sold as a pair

• Designed for compact fairing, dash, rear panel, and factory replacement locations

FEATURES

• Coaxially integrated tweeter provides focused midrange and high-frequency clarity

• Treated composite cone resists heat, UV exposure, and vibration — suitable for motorcycle and vehicle interiors

• Rubber surround for controlled excursion and reliability over time

• Stamped steel basket maintains alignment and rigidity in thin-mount applications

• Works with factory radios or small aftermarket amps

SPECIFICATIONS

• Size: 4" × 6"

• Configuration: 2-way coaxial

• RMS Power: 30W

• Peak Power: 275W

• Impedance: 4 Ω

• Frequency Response: ~75 Hz – 20 kHz (location dependent)

• Sensitivity: High-efficiency, suitable for low-to-mid power systems

• Cone Material: Treated composite

• Surround: Rubber

• Tweeter Type: Integrated coaxial dome tweeter

• Basket: Stamped steel

• Motor: Ferrite magnet

DIMENSIONS

• Frame Width: ~6.0 in (152 mm)

• Frame Height: ~4.1 in (104 mm)

• Cutout Opening: ~5.4 in × 3.7 in (137 mm × 94 mm)

• Mounting Depth: ~2.0 in (51 mm)

• Top Mount / Grill Clearance: Low-profile design

• Weight (per speaker): Light, safe for thin fairing/dash plastics

FITMENT

• Motorcycle inner fairing, dash pods, and upper fairing fill locations (where 4x6 form factor is supported)

• Automotive dash, rear panel, and door speaker replacements

• Works well high-passed at ~90–120 Hz to prevent low-end mechanical stress

INCLUDES

• (2) H746 4" × 6" Coaxial Speakers

• Mounting hardware (varies by application)
