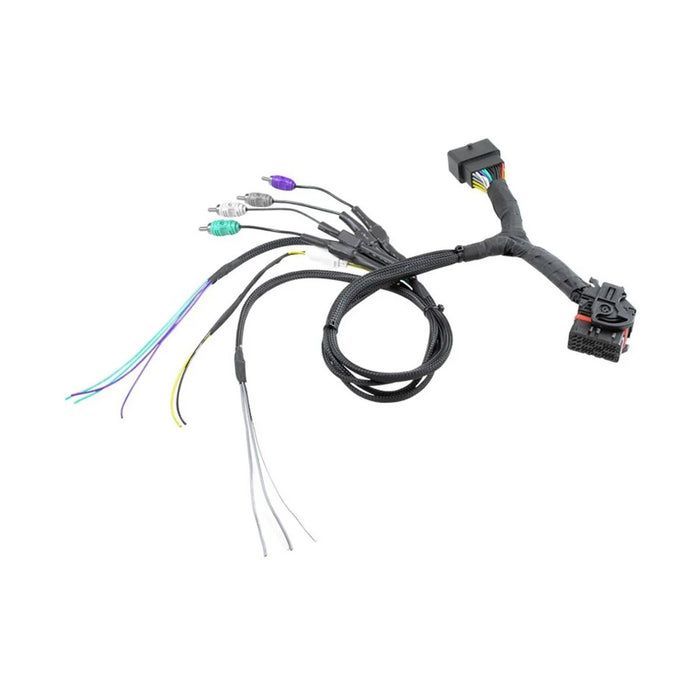

Cerwin Vega - CTLINK - RPM HARLEY DAVIDSON ® 4-CH Input w/ Load Resistor 4-out T-Harness Kit

DESCRIPTION

• 4-channel T-harness integration kit for Harley-Davidson® OEM radio

• Provides 4-channel input with built-in load resistors

• 4-channel output to amplifier or DSP

FEATURES

• Plug-and-play interface eliminates cutting factory wiring

• Built-in load resistor network maintains OEM radio output stability

• Correct signal routing for front + rear channel audio

• Designed for amplifier integration in motorcycle audio systems

• Low-profile connectors for fairing cavity clearance

• Heat-resistant jacket and strain-relief for vibration environments

SPECIFICATIONS

• Input Channels: 4 high-level speaker signals from OEM radio

• Output Channels: 4 low-level / high-level amp feed leads

• Load Network: OEM-safe impedance stabilization to prevent radio shutdown

• Conductor Gauge: 18–20 AWG signal-grade wiring

• Connector Type: Harley-Davidson® OEM radio inline T-connectors

• Operating Voltage: 12V motorcycle system compatible

• Noise Characteristics: Passive / no active processing

• System Type: Signal pass-through / impedance stabilization

DIMENSIONS

• Harness Lead Length: ~18–24 in (457–610 mm) typical (varies by branch)

• Connector Profile: Low-profile for inner fairing clearance

• Jacket: Heat / abrasion resistant, motorcycle-rated

FITMENT

• Harley-Davidson® Touring models with OEM radio

• (Connector style varies by model year; verify plug type before install)

• Intended for use with aftermarket amplifiers, DSPs, and LOC-based systems

INCLUDES

• (1) CTLINK 4-channel T-harness

• Integrated load resistor network

• Zip ties / install supports (varies by packaging)
