    DESCRIPTION

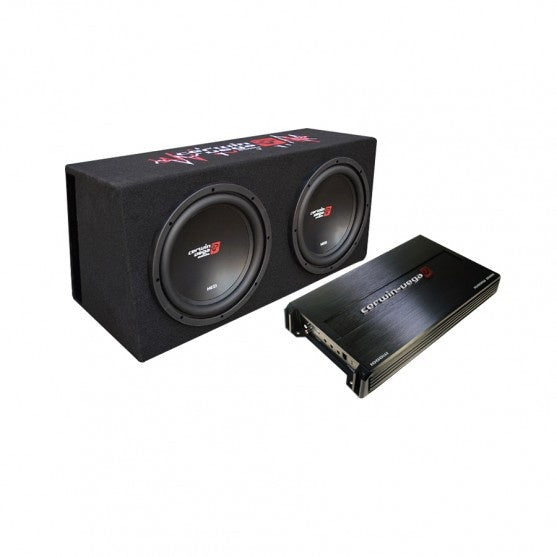

    • Dual 12-inch loaded vented bass enclosure system

    • Includes (2) XED Series 12" subwoofers pre-mounted in a slot-ported enclosure

    • Bundled with a XED3001D mono Class D amplifier matched for system power balance

    FEATURES

    • Slot-vented enclosure increases low-frequency output and airflow efficiency

    • Dual 12" XED subwoofers engineered for daily listening bass performance

    • XED3001D amplifier delivers appropriate power to drive the enclosure safely

    • Carpet-wrapped MDF cabinet reduces panel resonance and vibration noise

    • Pre-wired subwoofers internally for simplified installation

    • Designed for plug-and-play integration with aftermarket or factory head units (using LOC where required)

    SUBWOOFER SPECIFICATIONS

    • Size: 12 in (305 mm) each

    • Impedance (final system): 2 Ω nominal when paired with included amplifier

    • RMS Power Handling (each): 225W RMS

    • Peak Power Handling (each): 800W Max

    • Cone: Pressed paper composite

    • Surround: Rubber

    • Voice Coil: High-temp copper wound

    • Motor: Vented pole design for thermal stability

    AMPLIFIER (XED3001D) SPECIFICATIONS

    • Type: Mono Class D

    • RMS Output (Typical):

      • ~350W x 1 @ 1Ω

      • ~220W x 1 @ 2Ω (matching enclosure load)

    • Frequency Response: ~20 Hz – 250 Hz

    • Low-Pass Crossover: Variable (approx. 50–150 Hz)

    • High-Level & RCA Inputs: Yes, OEM-integration ready

    • Protection: Thermal / Short / Over-Current / Low-Impedance

    ENCLOSURE SPECIFICATIONS

    • Configuration: Dual 12" slot-ported

    • Construction: MDF, internal bracing

    • Finish: Black automotive carpet

    • Terminal: Spring-loaded terminal cup

    • Tuning: Mid-30s Hz range, optimized for street-bass response

    DIMENSIONS

    • Width: ~32.0 in (813 mm)

    • Height: ~14.0 in (356 mm)

    • Depth (Base): ~15.5 in (394 mm)

    • Depth (Top): ~12.5 in (318 mm)

    • Form Factor: Rectangular with slanted rear to clear trunk seatbacks / cargo panels

    FITMENT

    • Intended for automotive trunk, hatch, and cargo installs

    • Not sized for motorcycle saddlebags

    • Works with aftermarket or factory head units (LOC may be required)

    • Pair with 4 AWG or 8 AWG amp wiring kit depending on run length

    INCLUDES

    • Dual 12" slot-vented enclosure (preloaded)

    • XED3001D Mono Amplifier

    • Subwoofers pre-wired internally

    • Amplifier mounting hardware (varies by batch)
