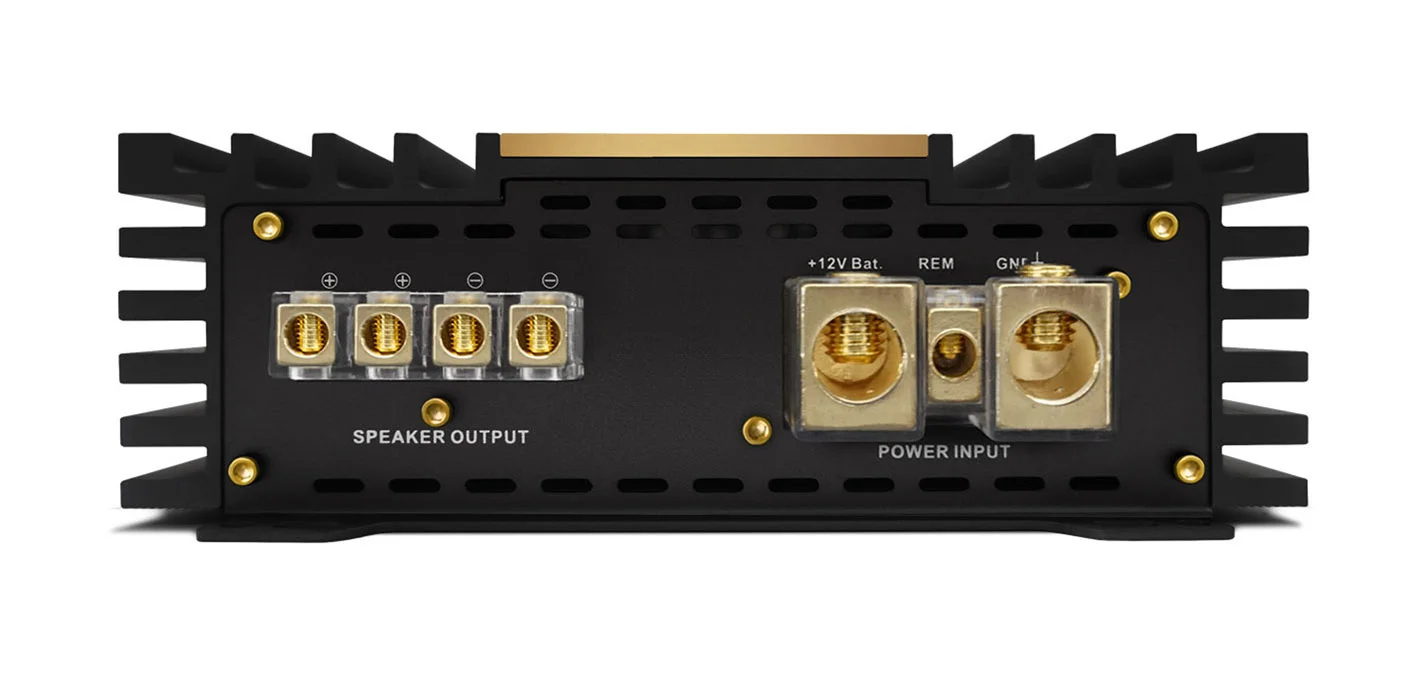

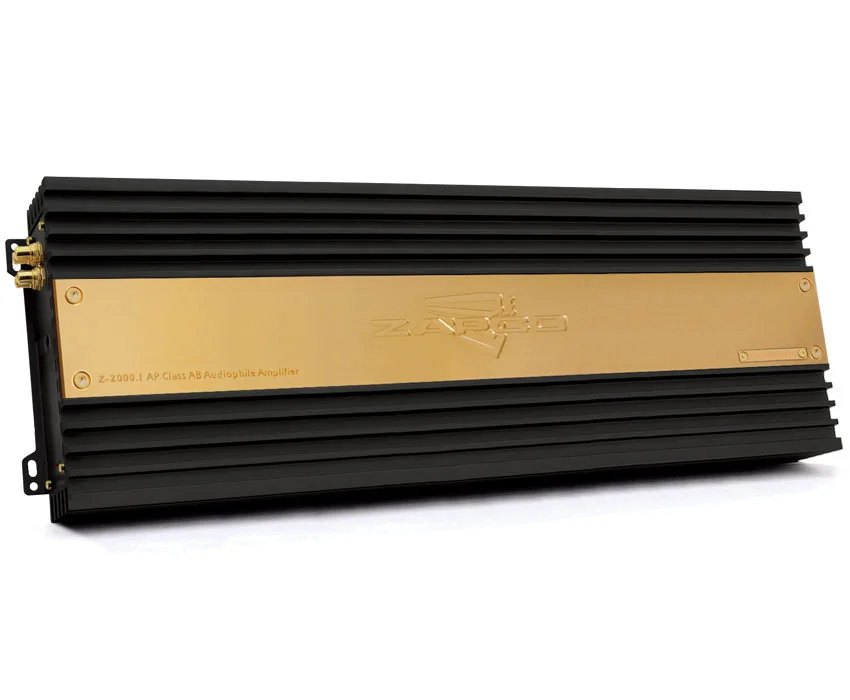

    Zapco - Z-2000.1 AP - Class AB, Mono Power 2Ω: 1 x 2000W, 4Ω: 1 x 1200W

    Zapco - Z-2000.1 AP - Class AB, Mono Power 2Ω: 1 x 2000W, 4Ω: 1 x 1200W

    by Zapco
    $2,500.00 - $2,500.00
    $2,500.00
    $2,500.00 - $2,500.00
    $2,500.00

    The Zapco Z-2000.1 AP is a high-output Class AB mono amplifier that blends the warmth and precision of analog power with exceptional current capability. Delivering up to 2000 watts RMS at 2 ohms, it’s designed for audiophiles who demand both control and musicality from their subwoofer or full-range system. With wide crossover flexibility, advanced thermal protection, and Zapco’s meticulous circuit design, the Z-2000.1 AP stands as one of the most powerful and refined Class AB mono amplifiers in its category.

    • Model: Z-2000.1 AP
    • Type: Class AB Mono Full-Range / Subwoofer Amplifier
    • Power Output (RMS):
     • 4 Ω: 1 × 1200 W
     • 2 Ω: 1 × 2000 W
    • Frequency Response: 10 Hz – 30 kHz (±1 dB)
    • Signal-to-Noise Ratio: > 100 dB
    • THD + N: < 0.05% at rated power
    • Damping Factor: > 200 @ 100 Hz
    • Input Sensitivity: 0.25 V – 8 V (adjustable)
    • Input Impedance: 20 kΩ (balanced) / 10 kΩ (unbalanced)
    • Crossover Network:
     • Low-Pass Filter (LPF): 30 Hz – 4 kHz (12 dB/octave)
     • High-Pass Filter (HPF): 15 Hz – 4 kHz (12 dB/octave)
     • Band-pass configuration possible via combined filtering
    • Bass Boost: 0 – 12 dB @ 45 Hz (adjustable)
    • Cooling System: Heavy-duty aluminum heatsink with dual thermal fan assist
    • Protection Circuits:
     • Thermal overload
     • Short circuit
     • DC offset
     • Over/under voltage
    • Fuse Rating: 3 × 60 A
    • Power Supply: Regulated MOSFET PWM with high current capability
    • Dimensions: 21.0″ (L) × 8.5″ (W) × 2.5″ (H)
    • Weight: Approx. 15.5 lb (7.0 kg)
    • Included Accessories: Remote bass level control, mounting hardware, user manual
    • Warranty: Standard manufacturer warranty
