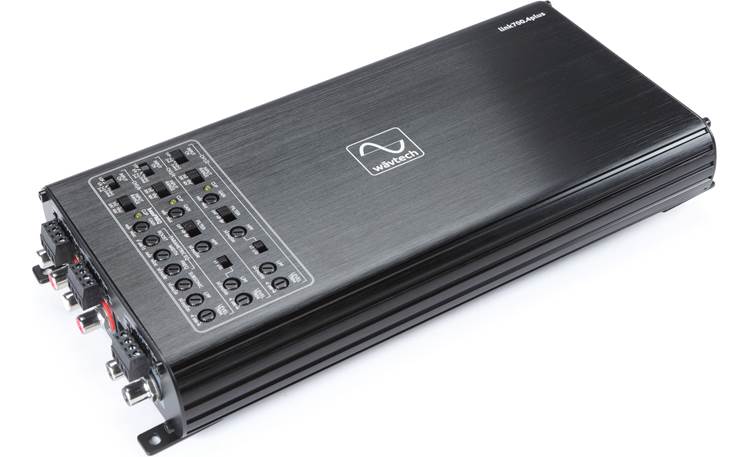

Wavtech - LINK700.4PLUS - Plus Series Amplifier w/Summing 175 x 4 @ 2ohms (Remote Capable w/Optional RLC)

Power Output:
• 100 W × 4 @ 4 Ω (RMS)
• 175 W × 4 @ 2 Ω (RMS)
• 350 W × 2 @ 4 Ω (bridged)

Audio / Signal Processing:
• Built-in summing for up to 6 input channels (ideal for OEM integration)
• Integrated bassFREQ processor with:
 – 24 dB/oct low-pass and subsonic filters
 – 1-band parametric EQ for fine-tuning low frequencies
• Variable crossovers:
 – Channels 1/2: High-pass filter with selectable multiplier (×1 / ×10)
 – Channels 3/4: Selectable High-Pass / Band-Pass / Low-Pass operation
• RCA Pre-Out (Subwoofer Out) with independent LPF and subsonic filter (24 dB/oct)
• Optional Remote Level Control (RLC) for adjusting CH3/4 or Subwoofer Pre-Out level

Inputs / Outputs:
• High-Level (speaker) inputs up to 40 V
• Low-Level (RCA) inputs with selectable sensitivity range (0.2 V–5 V or 0.4 V–10 V)
• RCA preamp outputs for system expansion
• Auto Turn-On: via DC Offset or Audio Signal detection

Performance Specs:
• Frequency Response: 10 Hz – 45 kHz (±3 dB)
• Total Harmonic Distortion (THD+N): < 1% at rated power
• Signal-to-Noise Ratio: > 80 dBA (1 W, 4 Ω)
• Input Impedance: 10 kΩ (RCA) / 1 kΩ (Speaker)

Design / Build:
• Full-range Class D efficiency
• OEM load detection for compatibility with factory audio systems
• Compact chassis for easy installation
• Thermal, over-current, short, and DC protection circuitry

Physical Dimensions:
• Length: 10.25″
• Width: 5.50″
• Height: 1.65″
