Specifications

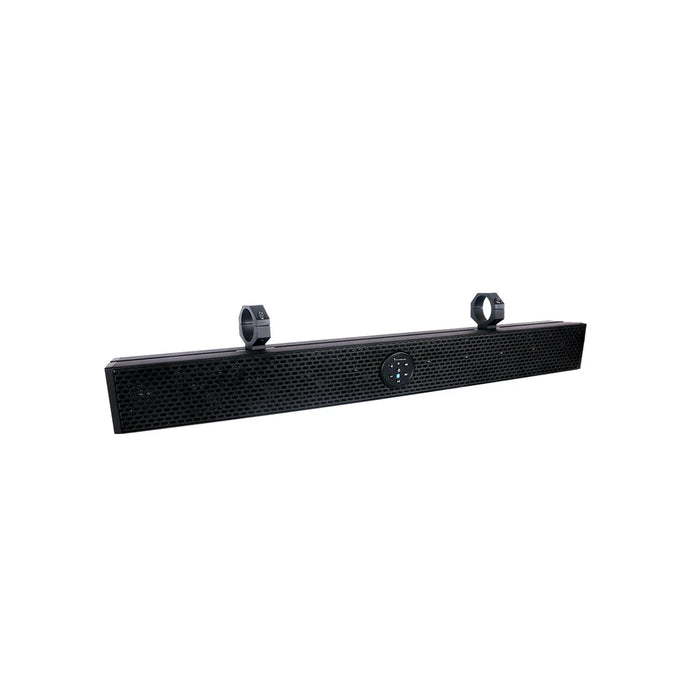

Type: All-in-One Amplified Sound Bar System
Series: Diamond Audio Motorsport / Marine Series
Speaker Configuration: 10-Speaker System (8 Active Drivers + 2 Passive Radiators)
Speaker Size: 3" (76 mm) Full-Range Drivers
System Power Output (RMS): 200 W
System Power Output (Peak): 400 W
Amplifier Type: Built-In Full-Range Class D Amplifier
Nominal Impedance: 4 Ω (Integrated System)
Frequency Response: 60 Hz – 20 kHz
Signal-to-Noise Ratio: >90 dB
Inputs:
• Bluetooth® 5.0 (A2DP Wireless Audio Streaming)
• 3.5 mm AUX Input (Stereo Mini-Jack)
Outputs:
• RCA Line Output (For External Subwoofer or Amplifier Expansion)
Power Input: 12V DC (Automotive / Marine Standard)
Current Draw (Max): 10 A
Crossover Type: Integrated Full-Range Network
Enclosure Material: UV-Stabilized High-Impact ABS Polymer
Finish: Matte Black Textured UV-Proof Coating
Mounting Type: Universal Clamp or Surface Mount
Mounting Hardware: Adjustable Aluminum Clamps (0.75"–2.0" Tubing)
Passive Radiator Design: Dual Side-Firing Radiators for Enhanced Low-End Output
Controls: Illuminated Top Panel with Power, Volume, Track, and Mode Selection
Wireless Range: Up to 50 ft (15 m)
Waterproof Rating: IP66 (Dustproof, Splash Resistant, and UV-Protected)
Cooling System: Passive Airflow Venting
Dimensions (L×W×H): 34.0" × 4.5" × 3.9" (864 × 115 × 99 mm)
Weight: 12.3 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• 10-speaker amplified system delivers wide, dynamic sound coverage for motorcycles, UTVs, and marine vehicles.
• Dual passive radiators create strong low-end punch in a slim housing.
• Built-in Class D amplifier ensures high output with low power draw.
• Fully sealed IP66 housing resists water, dust, and UV exposure.
• Designed for clear, distortion-free audio at high riding or cruising speeds.
Key Features
• Integrated Amplifier – All-in-one power and performance, no external amp required.
• IP66 Waterproof Design – Fully sealed for marine and off-road environments.
• Dual Passive Radiators – Adds tight, powerful bass without ports.
• Bluetooth 5.0 – Fast connection with excellent signal stability.
• Compact Design – Fits most roll cages, handlebars, and roof bars.
• Durable Construction – Built to handle vibration, heat, and impact.
• Diamond Audio Sound Engineering – Tuned for clarity, power, and projection.
Performance Integration Notes
• Ideal Pairing: Diamond BTR4 or BTR2 Bluetooth controllers for external control.
• System Compatibility: Works with motorcycles, UTVs, ATVs, boats, and golf carts.
• Recommended Use: Standalone amplified sound bar for compact or open-air installs.
• Installation Time: Approx. 30–45 minutes.
• Pro Tip: For stronger bass and dynamic response, mount horizontally with passive radiators facing outward and connect directly to a fused ignition power source.
