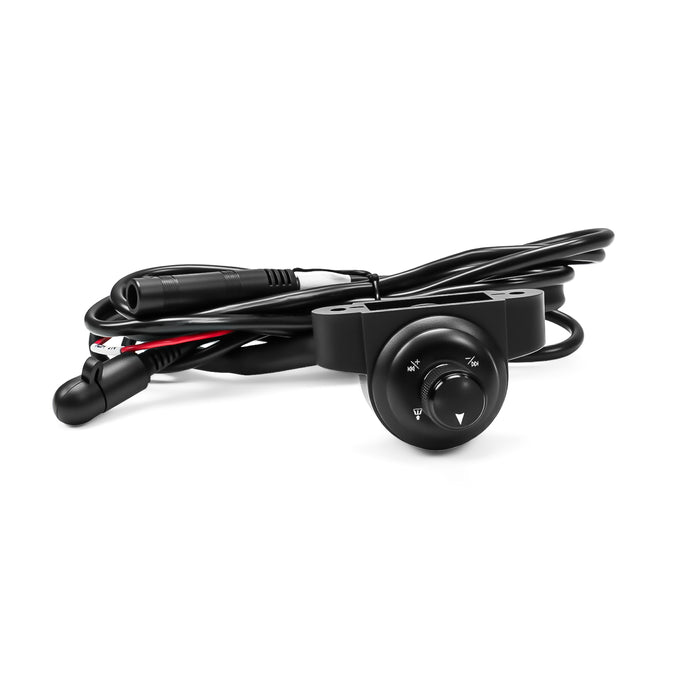

Recoil - BTR2 - Motorsport waterproof bluetooth audio receiver hideaway

Recoil BTR-2 Bluetooth Receiver with Micro DIN

Description
The Recoil BTR-2 is a compact, high-performance Bluetooth receiver designed for seamless integration with Recoil Powersports amplifiers. Featuring a built-in micro DIN connection with integrated remote turn-on, the BTR-2 delivers clean 24-bit audio streaming and simple one-knob control for volume, track, and playback. With plug-and-play RCA connectivity and multiple mounting options, it’s an ideal solution for motorcycle, marine, and powersports audio systems.

Specifications

Audio & Performance

• Qualcomm QCC3034 chipset

• Supports APTX-HD, APTX, SBC and AAC audio codecs

• 24-bit lossless music transmission

• Output Voltage: 2 VRMS

• Frequency Response: 18 Hz – 25 kHz

• THD: < 0.03%

• Signal-to-Noise Ratio: > 98 dB

Connectivity

• Micro DIN plug (direct to Recoil Powersports amplifiers)

• RCA L/R outputs (adapter included)

• Built-in remote turn-on via DIN

• Plug-and-play design

Control Functions (Single Knob)

• Power On/Off: Push and hold 2 seconds

• Play/Pause: Push once

• BT/AUX Switch: Push twice

• Volume Up: Turn right and hold

• Volume Down: Turn left and hold

• Next Track: Quick turn right

• Previous Track: Quick turn left

Wiring

• RCA L/R Output: To amp or EQ signal input

• Yellow ACC (+12V): To fused 12V positive continuous source

• Blue REM OUT: To amp or EQ turn-on input (+)

• Black GND: To battery negative or ground block

Mounting Options

• Surface mount (M3 self-tapping screws)

• Handlebar mount (motorcycle bracket with M6 bolt)

• Flush mount (silicone pad installation)
