HDSP-Z16 V AD-8A

8-Ch. DSP with HD Player

Features and Functions

  • 8 Channels DSP with HD Player

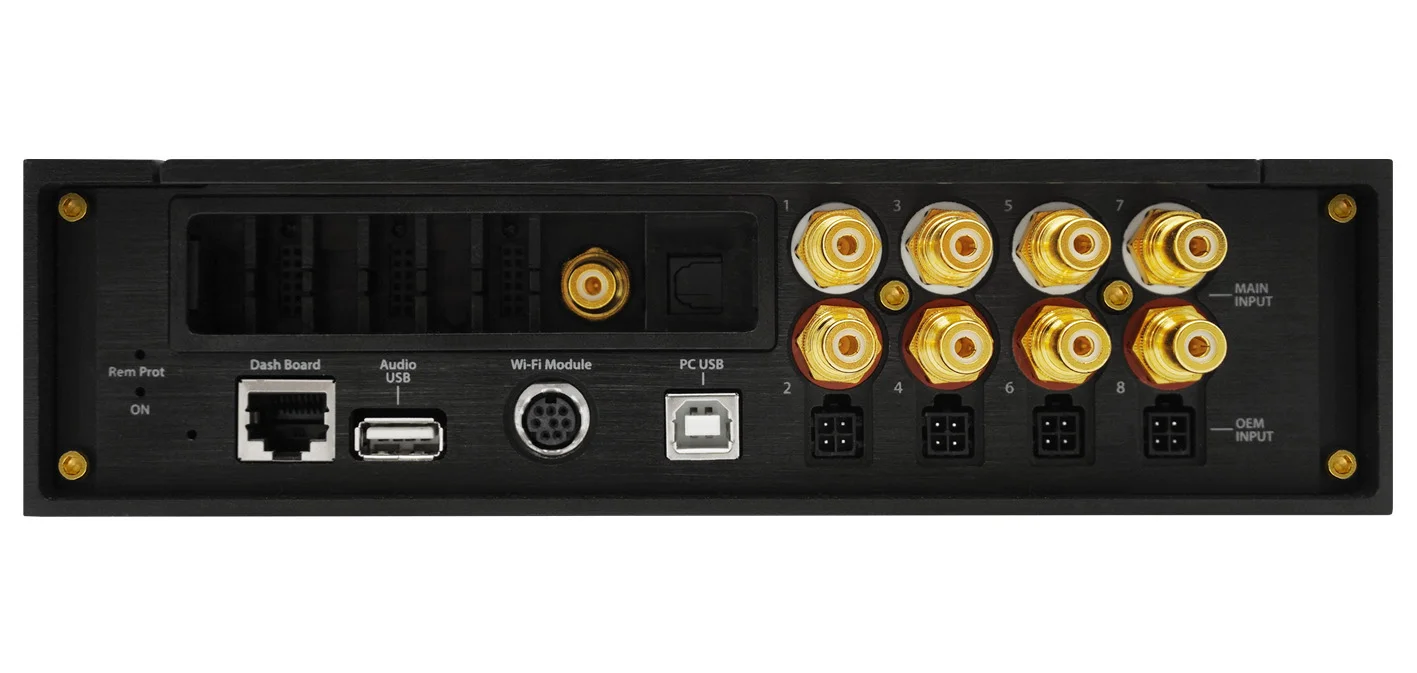

    - 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 8 Analog Outputs
    - Modular device: High-end solution with 15 independent PCB
    - Player & DSP: All-in-one dual core processor
    - DSP Processor: OMAP L-138 - 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
    - DSP Processor Point: Fixed & Floating
    - DSP Sampling Rate: 192 KHz
    - Player power: 456 Mhz - Arm 9 32 Bit. Read till 192 KHz/24 bit
    - File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
    - USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
    - ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR
    - ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR
    - DAC Processor (standard): AK4458, 32 Bit, 784 KHz, 115 dB DNR (*8ch)
    - DAC Processor (option B): AK4490, 32 Bit 784 KHz, 120 dB DNR (*8ch)
    - DAC Processor (option A): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR (*8ch)
    - Frequency response: 5Hz @ 90 KHz
    - THD+N: 0,0006 (Digital Input), 0,0008 (Analog Input) 1V Out
  • - S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)
    - S/N Ratio (Digital Inputs): from 115 to 120 dB A
    - S/N Ratio (Analog Inputs): from 109 to 115 dB A
    - Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)
    - Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)
    - Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
    - Digital Inputs: Optical: 24 Bit - 192 KHz, SPDIF: 24 Bit - 192 KHz, 3 x i2S: 24 Bit - 192 KHz

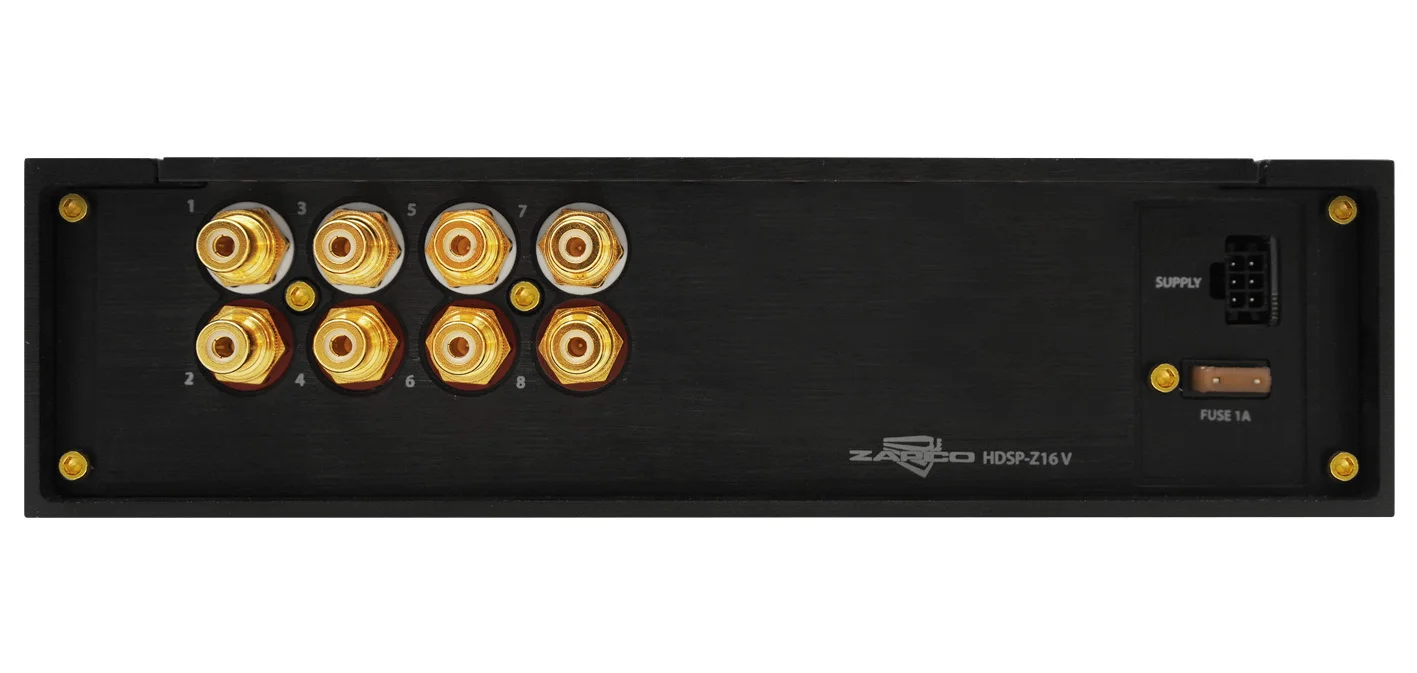

    - Analog Outputs: 8 x RCA, 4 Volt (5 KOhm), Impedance: 100 Ohm

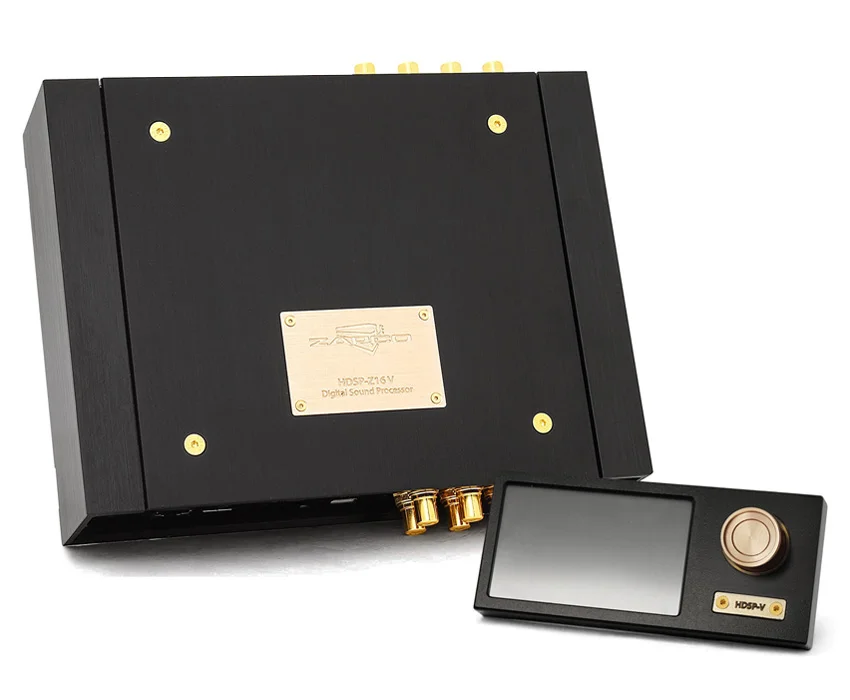

    - Dash Board: 3" Touch Screen, 10 Preset
    - Dash Board Control: Volume/Balance/Fader/Tone
    - Wireless Control: Wi-Fi External Module (incl.)
    - BT Streaming: External APTX HD Module (opt.)
    - Tuning: Easy and Expert, "Double Front"
    - I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
    - Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
    - EQ Parametric 15 poles
    - XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
    - Phase Filter: All channels 1Hz/1 Degree step
    - VSEQ Filter: 50-200 Hz - 1 Hz step
    - Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
    - Stop-Start ignition system support
    - Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
    - Dash Board dimensions (mm): 111(L) x 16(W) x 49(H)
