- 16 Channels DSP with HD Player
- 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs
- Modular device: High-end solution with 18 independent PCB
- Player & DSP: All-in-one dual core processor
- DSP Processor: OMAP L-138 - 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
- DSP Processor Point: Fixed & Floating
- DSP Sampling Rate: 96 KHz
- Player power: 456 Mhz - Arm 9 32 Bit. Read till 192 KHz/24 bit
- File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
- USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
- ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR
- ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR
- DAC Processor (standard): AK4458, 32 Bit, 784 KHz, 115 dB DNR (*8ch)
- DAC Processor (option B): AK4490, 32 Bit 784 KHz, 120 dB DNR (*8ch)
- DAC Processor (option A): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR (*8ch)
- Frequency response: 5Hz @ 45 KHz
- THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out
- S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)
- S/N Ratio (Digital Inputs): from 115 to 120 dB A
- S/N Ratio (Analog Inputs): from 109 to 115 dB A
- Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)
- Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

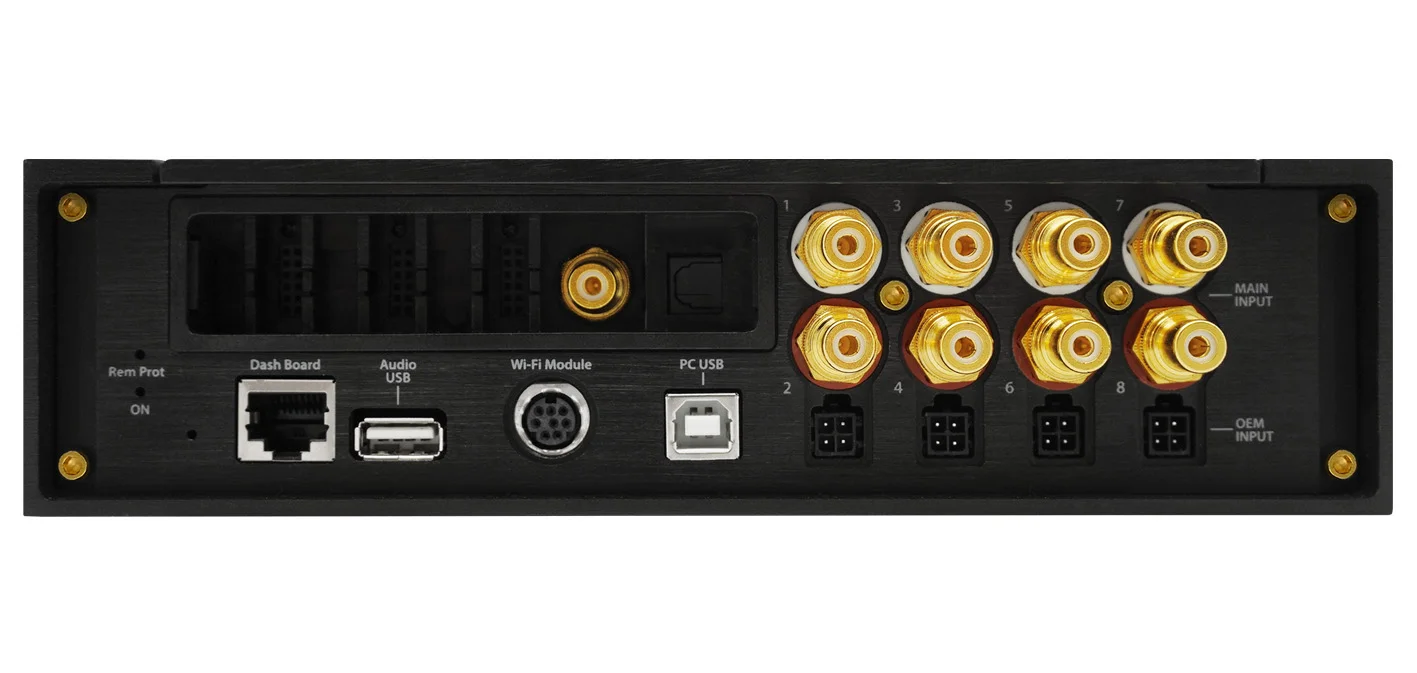

- Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
- Digital Inputs: Optical: 24 Bit - 192 KHz, SPDIF: 24 Bit - 192 KHz, 3 x i2S: 24 Bit - 192 KHz

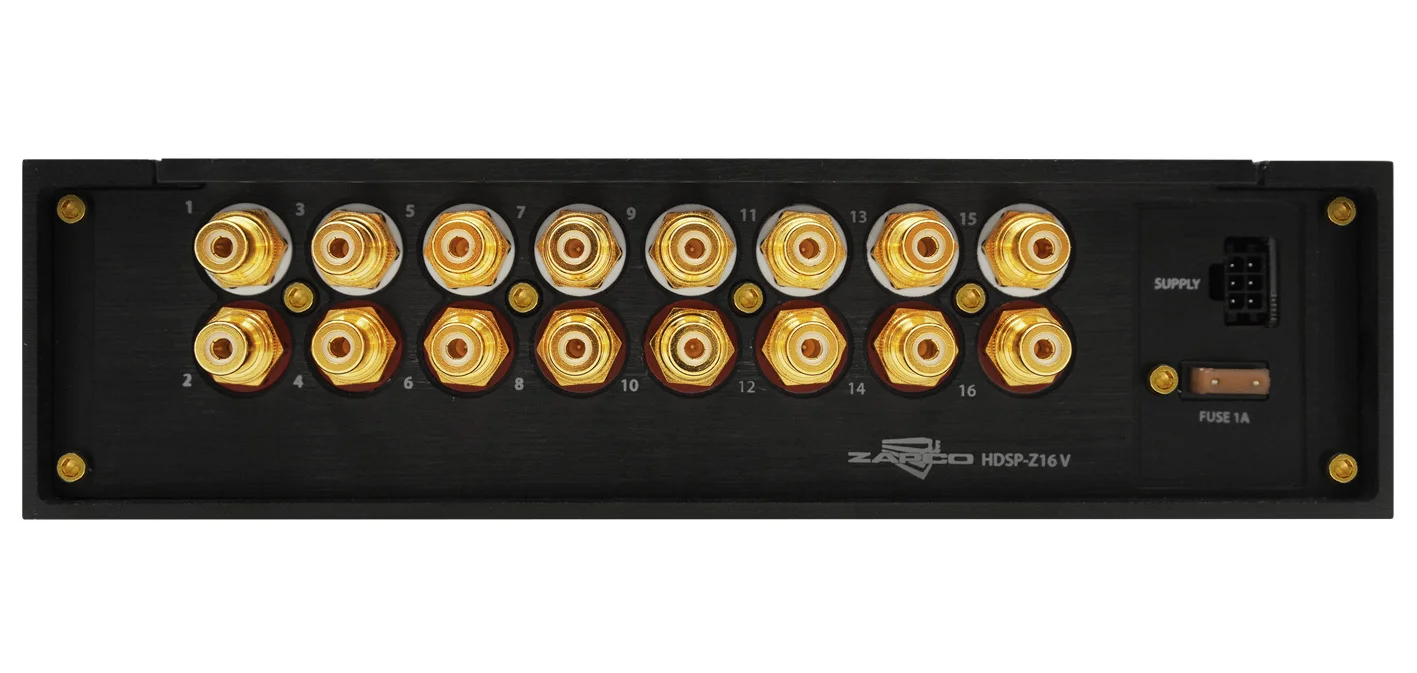

- Analog Outputs: 16 x RCA, 4 Volt (5 KOhm), Impedance: 100 Ohm

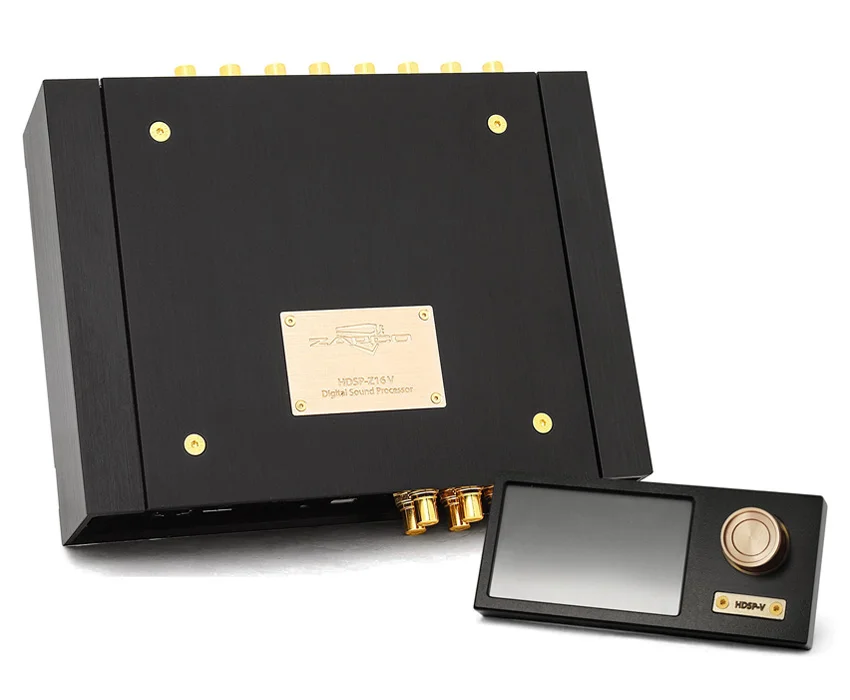

- Dash Board: 3" Touch Screen, 10 Preset
- Dash Board Control: Volume/Balance/Fader/Tone
- Wireless Control: Wi-Fi External Module (incl.)
- BT Streaming: External APTX HD Module (opt.)
- Tuning: Easy and Expert, "Double Front"
- I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
- Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
- EQ Parametric 30 / 6 poles
- XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
- Phase Filter: All channels 1Hz/1 Degree step
- VSEQ Filter: 50-200 Hz - 1 Hz step
- Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
- Stop-Start ignition system support
- Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
- Dash Board dim. (mm): 111(L) x 16(W) x 49(H)
