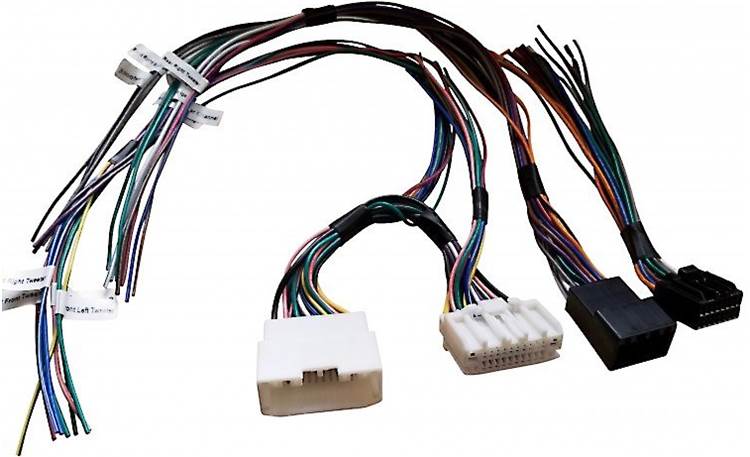

PAC - APH-CH01 - 18in Speaker Connection Harness for Select Chrysler Vehicles for use with AP4-CH21 AP4-CH31 or AP4-CH41

Compatibility:
• Designed for select 2007–2017 Chrysler, Dodge, Jeep, and RAM vehicles equipped with factory amplified audio systems
• Works with PAC AmpPRO modules: AP4-CH21, AP4-CH31, and AP4-CH41
• Ideal for use in vehicles with premium audio systems such as Alpine, Beats, or Harman Kardon

Main Features:
• Provides access to all factory speaker-level outputs at the factory amplifier location
• Plug-and-play installation — no cutting or splicing of OEM wiring
• Includes both male and female connectors for reversible installation
• Harness length: 18″
• Maintains full OEM wiring integrity
• Saves installation time and ensures clean signal routing

Wire Configuration (Typical):
• White (+) / White-Black (–): Front Left Speaker
• Gray (+) / Gray-Black (–): Front Right Speaker
• Green (+) / Green-Black (–): Rear Left Speaker
• Purple (+) / Purple-Black (–): Rear Right Speaker
• Blue (+) / Blue-Black (–): Subwoofer Output (if equipped)
• Black: Ground Pass-Through
• Yellow: Constant 12 V Pass-Through

Installation Notes:
• Connects directly at the factory amplifier harness location
• Use in conjunction with the specified AmpPRO module for RCA preouts and DSP integration
• Works in both full and partial amplifier bypass setups
• Designed for medium-speed Chrysler CAN systems
• Always verify wire polarity and signal type before connection

Package Includes:
• 18″ APH-CH01 T-Harness
• Installation guide
