    PAC - APA-TOS1 - TOSLINK FIBER OPTICAL OUTPUT ADD-ON MODULE FOR AmpPRO FOR USE WITH AP4 AND AP5

    PAC - APA-TOS1 - TOSLINK FIBER OPTICAL OUTPUT ADD-ON MODULE FOR AmpPRO FOR USE WITH AP4 AND AP5

    by PAC
    Sold out
    $69.00 - $69.00
    $69.00
    $119.00
    $119.00 - $119.00
    $119.00

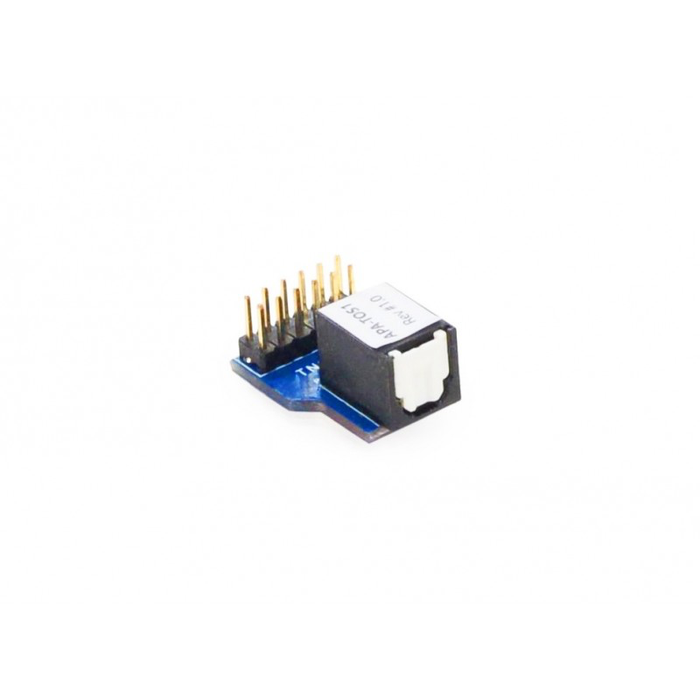

    PAC – APA-TOS1

    Toslink Optical Output Add-On Module
    For Use with PAC AmpPRO AP4 & AP5 Interfaces

    DESCRIPTION

    • Expansion module that adds a Toslink digital optical audio output to compatible PAC AmpPRO interfaces.

    • Enables direct digital audio routing to DSP processors, digital amplifiers, and home-theater grade decoding units used in automotive sound systems.

    • Preserves the factory radio and user interface while delivering a clean, noise-free digital signal path.

    FEATURES

    • Converts the AmpPRO output to standard SPDIF Toslink digital audio format.

    • Maintains:

      • OEM Bluetooth® audio

      • Navigation prompts

      • Vehicle safety tones & alerts

    • Bypasses analog noise floor, eliminating hiss commonly introduced by speaker-level conversions.

    • Allows DSP units to operate in full digital mode, maximizing sound stage tuning and fidelity.

    • Plug-and-play connection when used with AP4 or AP5 modules — no OEM wire cutting.

    FUNCTIONAL APPLICATIONS

    • Feed DSP processors that require or benefit from digital audio input.

    • Interface with digital amplifiers or multi-channel digital sound processors.

    • Upgrade vehicle audio to high-resolution / low-noise signal path while retaining the factory head unit.

    SPECIFICATIONS

    • Output Format: Toslink / SPDIF Optical Digital

    • Compatible Signal Source: PAC AP4 & AP5 AmpPRO interfaces

    • Audio Channels: 2-channel stereo (front-stage digital feed)

    • Voltage & Power: Draws power from AP4/AP5 interface connection (no external power wiring required)

    • Cable Type: Standard optical fiber (Toslink-grade patch cords)

    INSTALLATION NOTES

    • Installs inline with AP4 or AP5 harness — no tapping, soldering, or summing required.

    • DSP / amplifier must support optical digital input.

    • Bass management, crossovers, and EQ must be configured at the DSP rather than the head unit.

    FITMENT

    • Designed specifically to pair with:

      • PAC AP4 Series AmpPRO Interfaces

      • PAC AP5 Series AmpPRO Interfaces

    • Works with vehicles where AP4/AP5 is already confirmed compatible.

    INCLUDES

    • APA-TOS1 Optical Output Module

    • Connection lead / jumper harness (varies by batch)

    • Quick setup instruction card
