PAC - AP4-TY13 - ***Serialized*** AmpPRO for Select Toyota and Lexus vehicles with 24-pin and 30-pin connectors Audio output interface for vehicles

PAC – AP4-TY13 (Serialized)

AmpPRO Audio Integration Interface
For Select Toyota & Lexus Vehicles with 24-Pin + 30-Pin Factory Radio Connectors

DESCRIPTION

• Factory audio integration module that provides a clean, low-level pre-amp signal output from the OEM head unit.

• Designed for Toyota / Lexus systems that use 24-pin and 30-pin radio connectors.

• Allows addition of aftermarket amplifiers or DSP processing while retaining the factory radio and full OEM audio behaviors.

FEATURES

• Produces front and rear RCA pre-outs with stable, low-noise signal.

• No line output converter or signal summing required.

• Retains:

  • Factory Bluetooth® audio

  • Navigation / voice prompts

  • Safety chimes and alerts

  • Steering wheel audio control functionality

• Maintains OEM EQ, fader, balance, and volume control.

• Provides +12V remote amplifier turn-on signal output.

• Serialized version allows vehicle-specific firmware matching and validation.

FUNCTIONAL APPLICATIONS

• Add a subwoofer amplifier without replacing the radio.

• Feed a DSP for full system tuning, staging, and time alignment.

• Fully re-amplify front + rear speakers while maintaining the OEM dash interface.

• Suitable for stealth / OEM-look upgrades.

SPECIFICATIONS

• System Type: Factory radio integration interface

• Audio Output: Low-level RCA (Front L/R + Rear L/R)

• Output Voltage: Up to ~5V (varies by setup)

• Input Source: OEM head unit digital audio

• Trigger Output: +12V amplifier turn-on

• Compatible with 24-pin + 30-pin Toyota/Lexus OEM connector architecture

INSTALLATION NOTES

• Installs at the rear of the factory radio using plug-in connectors.

• Avoids cutting or splicing any OEM audio wiring.

• For systems with factory external amplifiers, bypass or re-amp configuration may apply.

• If planning full system re-amplification, pairing with PAC APH-TY## T-harness variants is recommended (optional).

FITMENT

• Select Toyota & Lexus models equipped with radios that use both 24-pin and 30-pin connectors.

• Common compatible applications (varies by trim/year):

  • Toyota: Tacoma, Tundra, 4Runner, Highlander, RAV4, Camry

  • Lexus: ES, GX, RX, IS

• Fitment verified by connector match — not screen size or speaker count.

INCLUDES

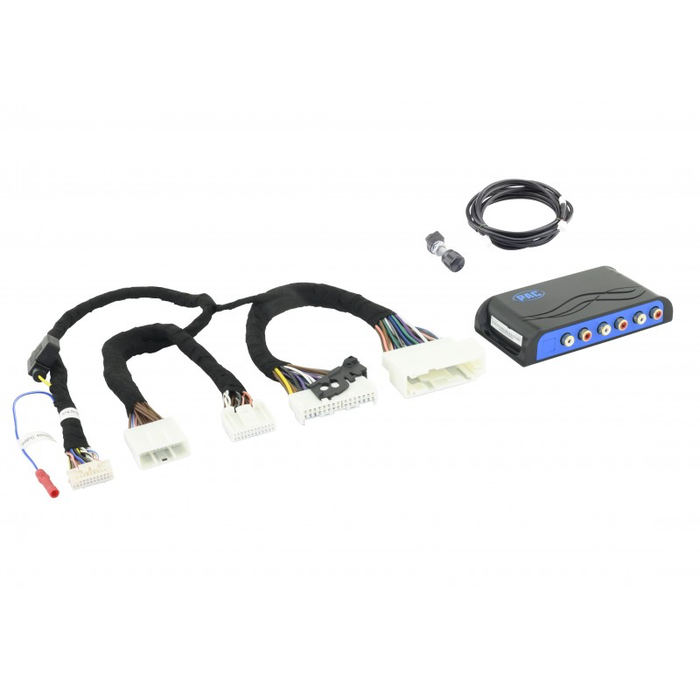

• AP4-TY13 Serialized Interface Module

• Plug-in vehicle harness

• Remote turn-on lead

• Setup / configuration reference card
