PAC - AP4-FD11 - ***Serialized*** AmpPRO for Select Ford and Lincoln vehicles with 24-pin 16-pin and 8-pin connectors Audio output interface for vehicles

PAC – AP4-FD11 (Serialized)

AmpPRO Audio Output Interface
For Select Ford & Lincoln Vehicles
Using 24-Pin, 16-Pin, and 8-Pin Factory Radio Connectors

DESCRIPTION

• OEM audio integration interface that provides a clean low-level RCA pre-amp signal from the factory radio.

• Designed for Ford and Lincoln vehicles equipped with standard amplified or base audio systems that use 24-pin / 16-pin / 8-pin radio connector layouts.

• Allows addition of aftermarket amplifiers and DSP processors while retaining factory infotainment and user controls.

• Serialized hardware revision ensures compatibility across model years and OEM software versions.

FEATURES

• Outputs Front + Rear low-level RCA audio.

• Maintains:

  • Steering wheel audio controls

  • Bluetooth® streaming & phone audio

  • OEM navigation voice prompts

  • System chimes and safety tones

  • Factory Bass / Treble / Fade / Balance menu controls

• No line output converter or signal summing required.

• Provides +12V amplifier turn-on trigger output.

• Fully reversible install — does not require cutting OEM wiring.

FUNCTIONAL APPLICATIONS

• Add a subwoofer amplifier to the factory system.

• Feed a DSP for stage correction, equalization, and time alignment.

• Fully re-amplify all speaker zones with aftermarket amps.

• Ideal for OEM-plus upgrade and stealth integration builds.

SPECIFICATIONS

• Input Source: Factory radio analog/digital hybrid signal (vehicle dependent)

• Output: Low-level RCA (Front L/R + Rear L/R)

• Output Voltage: Up to ~5V (adjustable)

• Trigger Output: +12V remote turn-on

• Connector Type: Ford/Lincoln OEM-style 24-pin + 16-pin + 8-pin plug-in harness

• Supported System Types:

  • Base audio

  • Factory amplified systems (non-Sony digital systems)

INSTALLATION NOTES

• Interface connects behind the factory radio at the OEM connector set.

• If adding external amplifiers to power factory speakers, pair with PAC APH-FD01 speaker routing harness (optional).

• If vehicle uses Active Noise Cancellation (ANC), ANC disable may be required for subwoofer integration.

FITMENT

• For select Ford + Lincoln vehicles using the 24-pin / 16-pin / 8-pin radio connector stack.

• Common applications include (varies by trim/year):

  • Ford: F-150, F-250 / Super Duty, Mustang, Edge, Explorer, Fusion, Escape

  • Lincoln: MKZ, MKX, Navigator, Continental, Aviator

• Fitment should be confirmed by connector match, not display size or audio branding.

INCLUDES

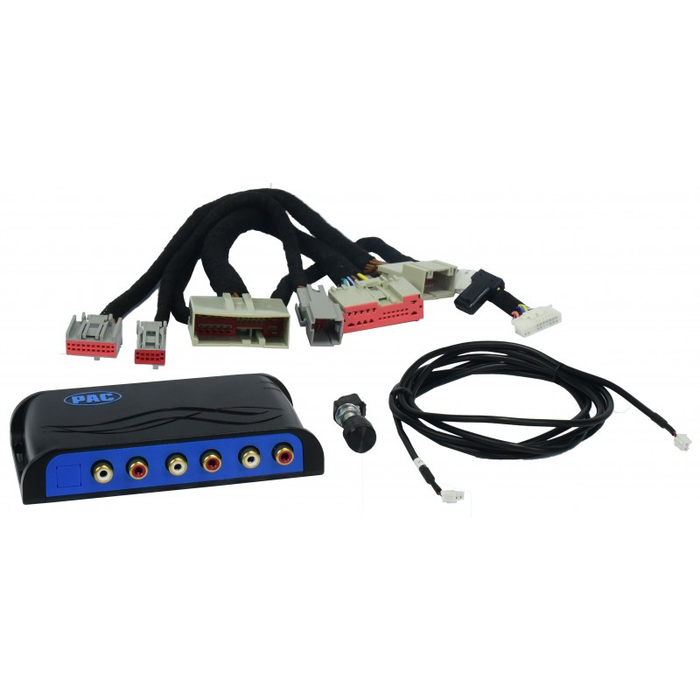

• AP4-FD11 (Serialized) Interface Module

• 24-pin / 16-pin / 8-pin OEM radio harness

• Remote amp turn-on lead

• Setup / configuration reference sheet
