Specifications

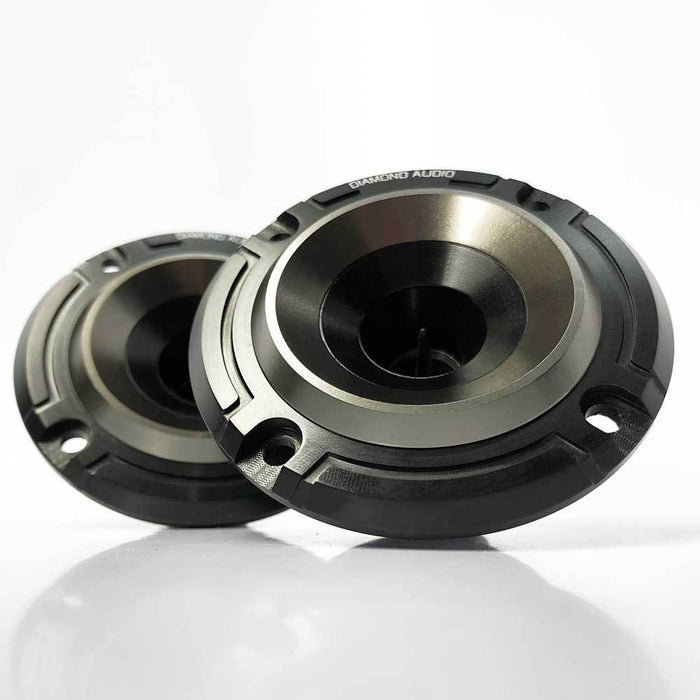

Type: High-Output Compression Bullet Super Tweeter
Series: Diamond Audio Motorsport Series
Driver Size: 1-inch (25 mm) Titanium Diaphragm
Power Handling (RMS): 75 W
Power Handling (Peak): 150 W
Impedance: 4 Ω
Sensitivity (1W/1m): 107 dB
Frequency Response: 3.5 kHz – 20 kHz
Voice Coil: 1.0-inch High-Temperature Aluminum Former
Magnet Type: Neodymium Compression Motor Structure
Horn Design: CNC Machined Aluminum Bullet Horn
Crossover: 12 dB/Octave High-Pass Filter (Pre-Installed)
Mounting Depth: 1.75" (45 mm)
Mounting Diameter: 2.3" (58 mm)
Overall Diameter: 3.25" (83 mm)
Terminals: Nickel-Plated Push Terminals
Housing Material: Anodized Aluminum Body
Finish: Polished Black with Diamond Motorsport Laser Etching
Weather Resistance: IP65 Rated – Water, Salt, and UV Resistant
Weight: 1.2 lbs (Each)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Delivers ultra-high SPL with crisp, aggressive top-end response.
• Titanium diaphragm and neodymium motor produce bright, distortion-free output at high volume.
• Compact compression design provides efficient projection ideal for open-air and high-noise environments.
• Designed for motorcycles, UTVs, and high-SPL automotive systems.
Key Features
• Compression Bullet Design – High-efficiency output with compact installation depth.
• 107 dB Sensitivity – Extremely loud and clear even with moderate power.
• Titanium Diaphragm – Provides sharp, detailed high-frequency reproduction.
• Integrated High-Pass Filter – Protects against low-frequency distortion and damage.
• CNC Aluminum Body – Precision-machined for strength and heat dissipation.
• Marine-Grade Durability – Resistant to moisture, vibration, and UV exposure.
• Diamond Audio Engineering – Tuned for motorsport and extreme performance builds.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 50–100 W RMS per channel @ 4 Ω (use high-pass at 5 kHz, 12 dB/Oct).
• System Compatibility: Perfect for motorcycle fairings, tower pods, or SPL door builds.
• Recommended Use: High-frequency extension or super tweeter in Diamond Motorsport systems.
• Installation Time: Approx. 30–45 minutes per pair.
• Pro Tip: Always use inline capacitors or active crossover filtering above 4.5 kHz to prevent diaphragm fatigue at sustained high power.
