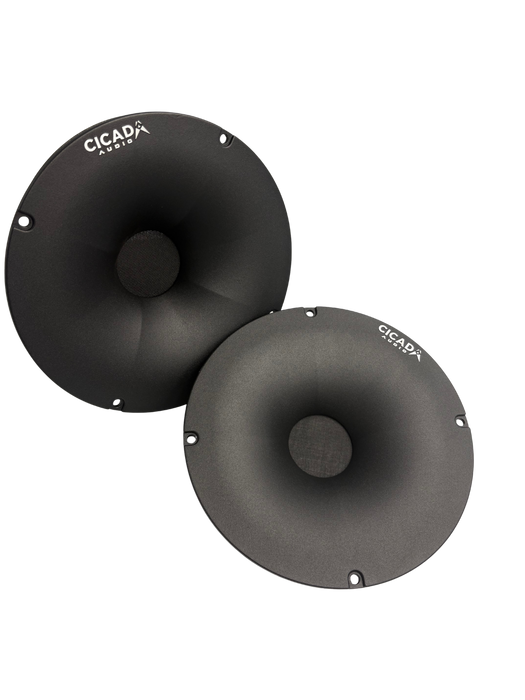

Cicada Audio - RRWG-8F - 8" Waveguide-requires RR3TM/2TM-Pair

Model: RRWG-8F
• Type: 8" Flat Waveguide / Horn Face
• Compatible Drivers: RR3TM / RR2TM (Requires Pair)
• Material: High-density ABS composite
• Mount Style: Bolt-on to RR3TM / RR2TM motor assembly
• Finish: Black UV-resistant textured surface
• Coverage Pattern: Approx. 90° x 60°
• Throat Diameter: 1 inch (25.4 mm)
• Mounting Depth: ≈ 3.5 in (90 mm)
• Mouth Diameter: ≈ 8 in (203 mm)
• Recommended Crossover: ≥ 600 Hz (when used with RR3TM/2TM)
• Frequency Response (typical system): 600 Hz – 20 kHz
• Power Handling (typical system): 300 W RMS / 600 W Max per horn
• Sensitivity (typical system): 110 dB
