Specifications

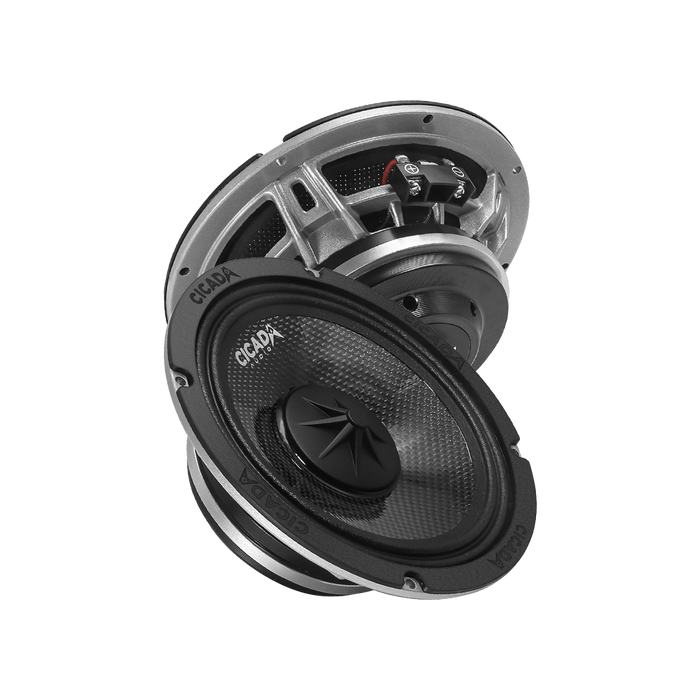

Type: High-Performance Midbass Speaker
Speaker Size: 6.5"
Impedance: 2 Ω
RMS Power Handling: 150 W
Peak Power Handling: 300 W
Sensitivity: 95 dB (1W / 1m)
Frequency Response: 55 Hz – 6 kHz
Cone Material: Carbon Matrix Reinforced Pulp Composite
Surround: UV-Resistant Rubber
Basket: Cast Aluminum Frame
Voice Coil Diameter: 1.5" High-Temp Copper
Magnet Structure: High-Energy Dual Ferrite Motor
Mounting Depth: 2.75" (70 mm)
Grilles: Not Included (Compatible with CBG65 Series)
Sold As: Pair (Left and Right Speakers)
Warranty: 2-Year Manufacturer Warranty
Audio Performance Specs
• Frequency Range: 55 Hz – 6 kHz – Tuned for full-bodied midbass with extended midrange support.
• Sensitivity: 95 dB – Delivers strong volume and clean response even with moderate amplifier power.
• Motor Design: Dual-stacked ferrite system for high control and linear cone movement.
• Sound Character: Deep, punchy low-end response with smooth upper-mid transition.
• Thermal Control: Vented pole and spider assembly maintain stable performance at high SPL.
Key Features
• Engineered for High-Output Midbass Systems – Perfect for Harley-Davidson® bag or fairing installs where clarity and punch matter most.
• Carbon Matrix Composite Cone – Lightweight yet rigid for ultra-accurate transient response and minimal breakup.
• High-Efficiency 2-Ohm Design – Maximizes amplifier output for louder, more dynamic sound.
• Cast Aluminum Frame – Provides strength, precision, and effective heat dissipation under heavy load.
• Weather-Resistant Construction – UV-sealed surround and coated cone withstand outdoor conditions.
• Pro-Level Performance – Delivers fast, impactful midbass ideal for riders who demand both output and musicality.
• Cicada Audio Engineering – Designed and tuned in the USA for aggressive, articulate sound at highway volume.
Performance Integration Notes
• Recommended Amplifiers: Cicada CX150.4D / DSP125.4D / FLX250.4D
• System Fit: Harley-Davidson® Touring Models (2014–Present) – Front fairing, lower, or saddlebag applications.
• DSP Settings: HPF 60 Hz / LPF 5 kHz (24 dB/Octave)
• Compatible Grilles: Cicada CBG65FR / CBG65LR / CBG65MT (Tweeter Mount Version)
• Installation Time: Approx. 45 minutes (Professional Installation Recommended)
• Pro Tip: Pair with Cicada RR075T or RR05T tweeters and CMB10.S4NEO midbass for a balanced, full-stage touring setup.
