Specifications

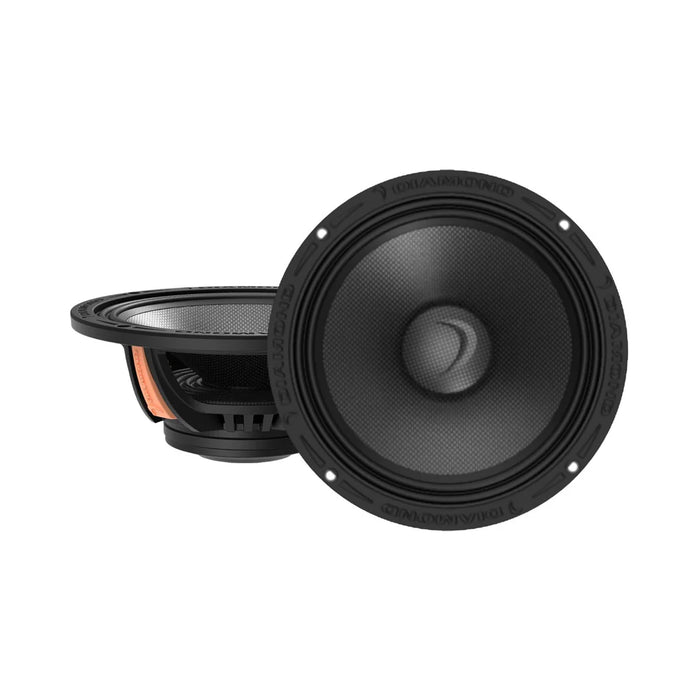

Type: High-Performance Midbass Driver
Series: Diamond Audio Motorsport NEO Series
Size: 8-inch (203mm)
Configuration: Single Midbass Driver
Power Handling (RMS): 350W
Power Handling (Peak): 700W
Impedance: 2Ω
Sensitivity (1W/1m): 97dB
Frequency Response: 60Hz – 5kHz
Voice Coil: 1.5-inch (38mm) High-Temperature Copper
Magnet Structure: Ultra-Light High-Flux Neodymium Motor
Cone Material: Non-Pressed Paper Cone with Resin Damping Coating
Surround: Cloth Accordion Edge
Basket: Cast Aluminum Frame – Anti-Resonant, Black Powder-Coated Finish
Cooling System: Rear-Vented Pole Piece with Airflow Channels
Terminals: Nickel-Plated Spring-Loaded Push Connectors
Mounting Depth: 3.3" (84mm)
Mounting Cutout: 7.1" (180mm)
Overall Diameter: 8.2" (208mm)
Weight: 3.9 lbs (Each)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• High-efficiency 8" neodymium midbass engineered for extreme volume and punchy low-mids.
• Optimized for lightweight, high-output motorcycle and UTV applications.
• Delivers controlled, dynamic midbass with natural tone and rapid transient response.
• Resin-coated paper cone enhances rigidity and weather resistance.
• Ideal for pairing with high-power Class D amplifiers in open-air environments.
Key Features
• Neodymium Magnet Assembly – Compact, powerful, and lightweight for superior performance.
• Non-Pressed Paper Cone – Smooth, responsive midbass with authentic tonal quality.
• Cloth Accordion Surround – Provides high-excursion control and tight response.
• Cast Aluminum Basket – Prevents frame flex and dissipates heat efficiently.
• High-Temp Copper Voice Coil – Designed for sustained power at high output levels.
• Vented Motor Cooling – Reduces distortion and maintains consistent thermal stability.
• Diamond Audio Reliability – Built for professional-level output in outdoor conditions.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D or HXM1100.6D Amplifiers (125–200W RMS @ 2Ω).
• System Compatibility: Motorcycle, UTV, Marine, and Custom SPL Systems.
• Recommended Use: Midbass reinforcement for front or rear-stage audio systems.
• Installation Location: Fairing pods, saddlebag lids, or sealed/ported baffles.
• Installation Time: Approx. 45–60 minutes.
• Pro Tip: Use a high-pass filter at 70Hz (12dB/octave) to prevent low-frequency over-excursion and achieve tighter, cleaner midbass impact at highway speeds.
