Specifications

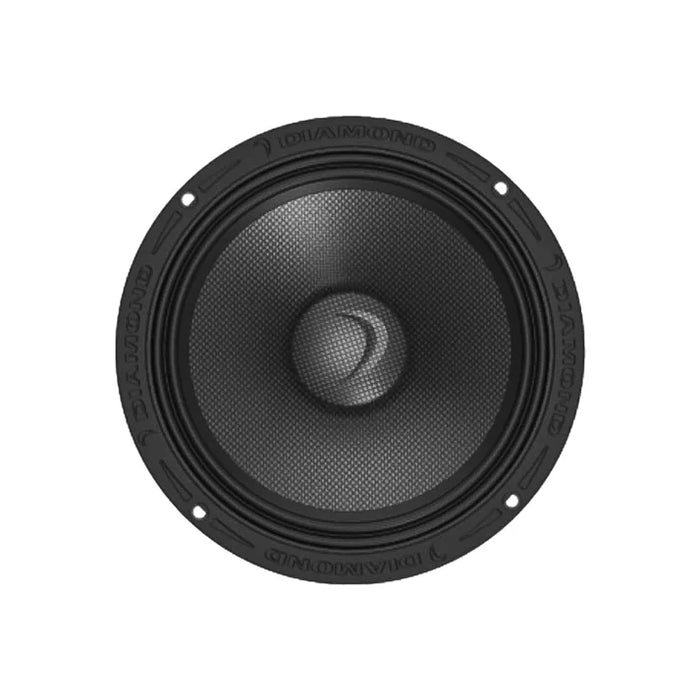

Type: High-Performance Midbass Driver
Series: Diamond Audio Motorsport NEO Series
Speaker Size: 10-inch (254 mm)
Configuration: Single 4Ω Voice Coil
Power Handling (RMS): 350 W
Power Handling (Peak): 700 W
Impedance: 4 Ω
Sensitivity (1W/1m): 96 dB
Frequency Response: 60 Hz – 6.5 kHz
Voice Coil: 2.0-inch (51 mm) High-Temperature Copper Wound on Aluminum Former
Cone Material: Non-Pressed Paper Cone with Resin Reinforcement
Surround Material: Accordion-Style Cloth Surround
Magnet Type: High-Strength Neodymium Motor Structure
Basket: Heavy-Duty Cast Aluminum Frame
Cooling System: Vented Pole Piece and Frame Openings for Heat Dissipation
Terminals: Nickel-Plated 8 AWG Push Terminals
Mounting Depth: 4.4" (112 mm)
Mounting Cutout: 9.25" (235 mm)
Overall Diameter: 10.25" (260 mm)
Weight: 8.9 lbs (Each)
Weather Resistance: IP65 (Water, Dust, and UV Resistant – Motorsport Grade)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Designed for extreme midbass response and high SPL in motorsport and open-air systems.
• Neodymium motor provides ultra-lightweight construction with massive magnetic strength.
• Accordion cloth surround enhances control, accuracy, and transient response.
• Non-pressed paper cone delivers natural tonality with excellent power handling.
• Engineered to project strong, clean midbass in loud, high-output audio systems.
Key Features
• High-Efficiency Neodymium Motor – Produces superior output while reducing weight.
• 2" High-Temp Voice Coil – Handles high continuous power with minimal compression.
• Lightweight Paper Cone – Ensures natural sound with fast transient attack.
• Cast Aluminum Basket – Rigid and resonance-free for consistent performance.
• Cloth Accordion Surround – Delivers tight, punchy midbass response.
• Motorsport Build Quality – Withstands extreme vibration, heat, and environmental stress.
• Diamond Audio Engineering – Tuned for clarity and aggressive SPL balance.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 300–400 W RMS @ 4 Ω (e.g., Diamond DES400.2D or HXM800.4D bridged).
• System Compatibility: Designed for motorcycle, UTV, or SPL automotive applications.
• Recommended Use: Dedicated midbass driver in 2-way or 3-way Diamond Motorsport systems.
• Installation Location: Fairing, door, or saddlebag midbass placement.
• Installation Time: Approx. 45–60 minutes (single driver).
• Pro Tip: Use a high-pass filter at 70–80 Hz and low-pass around 5–6 kHz to achieve maximum efficiency and cone control at full output.
