Specifications

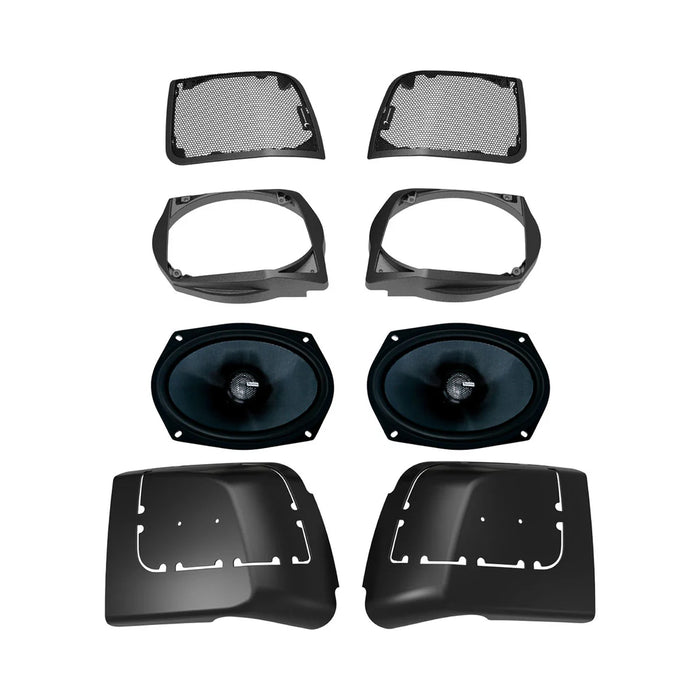

Type: Complete Harley-Davidson® Saddlebag Lid Speaker Kit
Series: Diamond Audio MS Motorsport Series
Speaker Model: MS69CX2CXP – 6"x9" Coaxial High-Performance Speakers
Speaker Power Handling (RMS): 130W
Speaker Power Handling (Peak): 260W
Impedance: 2Ω
Sensitivity (1W/1m): 93.5dB
Frequency Response: 45Hz – 23kHz
Woofer Cone: Carbon Fiber Reinforced Poly Cone
Tweeter Type: 1-inch (25mm) Titanium Dome Tweeter
Voice Coil: 1.5-inch High-Temperature Copper
Basket: Heavy-Duty Cast Aluminum Frame
Crossover: Integrated 12dB/Octave High-Pass Network
Magnet Type: High-Grade Ferrite
Enclosure Type: Pre-Assembled Precision-Molded Saddlebag Lids
Material: High-Impact ABS Plastic (Paint-Ready Finish)
Grill Style: Diamond Audio Marine-Grade Flush-Mount Grilles (Black)
Hardware: Includes Gaskets, Mounting Hardware, and Plug-and-Play Wiring Harness
Water Resistance: IP65 (Water, Salt, and UV Resistant)
Compatibility: 2014–2023 Harley-Davidson® Touring Models
Mounting Depth: 3.8" (97mm)
Mounting Cutout: 8.9" × 6.0" (225 × 152mm)
Total Weight: 18 lbs (Complete Kit)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Complete saddlebag lid kit with MS69CX2CXP coaxial speakers pre-installed for 2014–2023 Harley-Davidson® Touring models.
• Coaxial design provides rich midbass, clean vocals, and crisp highs with excellent projection.
• Preloaded, direct-fit lids ensure a perfect OEM-style appearance and weather-sealed performance.
• Carbon fiber-reinforced cone and titanium tweeter provide clarity and long-term stability in extreme environments.
• Optimized for highway sound performance with outstanding sensitivity and power handling.
Key Features
• Complete Lid Solution – Includes preloaded lids, grilles, wiring, and hardware.
• High-Efficiency 2Ω Design – Maximizes amplifier power for stronger, cleaner output.
• Carbon Fiber Cone – Delivers tight, natural midbass and extended frequency response.
• Titanium Tweeter – Produces crisp, detailed highs ideal for open-air listening.
• Marine-Grade Construction – Fully sealed for moisture, salt, and UV protection.
• Paint-Ready Finish – Smooth ABS surface for OEM color matching or custom paintwork.
• Plug-and-Play Fitment – Simplifies installation with factory-style connectors.
• Diamond Audio Engineering – Tuned for Harley-Davidson® motorcycle environments.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D, HXM1100.6D, or DES400.2D Amplifiers (100–150W RMS @ 2Ω).
• System Compatibility: 2014–2023 Harley-Davidson® Touring Models (Street Glide®, Road Glide®, Electra Glide®).
• Recommended Use: Rear-stage or saddlebag-mounted speaker upgrade.
• Installation Location: Direct replacement of factory lids with plug-and-play connections.
• Installation Time: Approx. 1.5–2 hours.
• Pro Tip: Always test speaker polarity before finalizing install; use closed-cell gasket foam for a watertight seal and improved midbass punch.
