Specifications

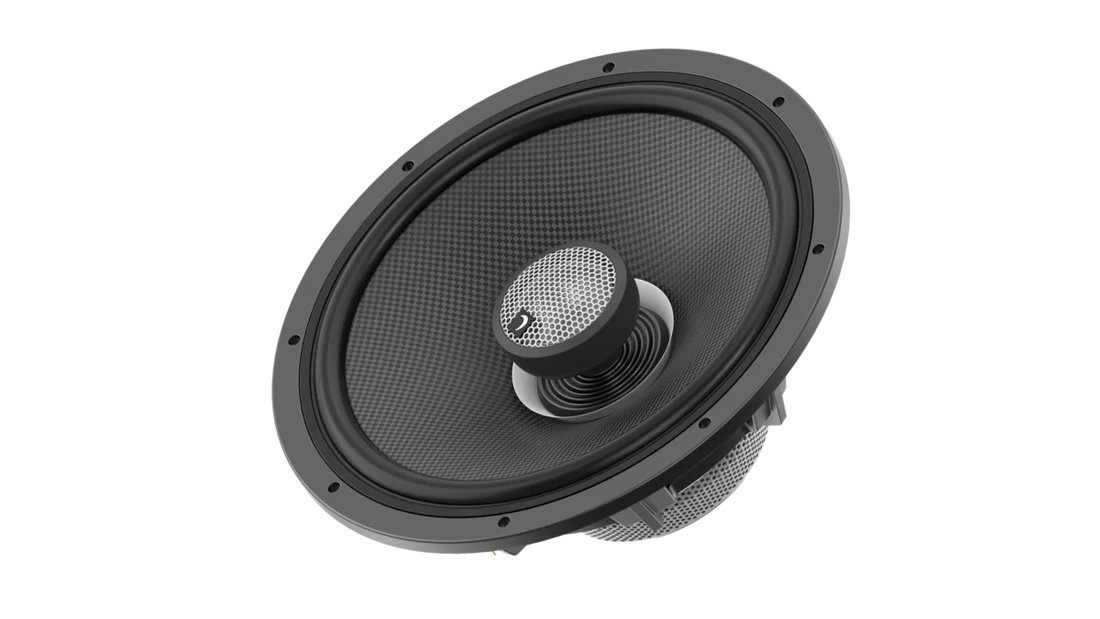

Type: High-Performance 2-Way Full-Range Motorsport Speaker
Series: HXM Elite Motorsport Series
Size: 8-inch (203mm)
Configuration: 2-Way Coaxial
Impedance: 2Ω
Power Handling (RMS): 175W
Power Handling (Peak): 600W
Sensitivity (1W/1m): 93dB
Frequency Response: 60Hz – 22kHz
Cone Material: Black Carbon-Fiber Reinforced Poly Matrix
Surround: UV-Stabilized Rubber
Tweeter Type: 1-inch (25mm) Titanium Dome Tweeter
Tweeter Mount: Coaxially Integrated Compression Design
Voice Coil: 1.5-inch High-Temperature Copper Wound on Kapton Former
Magnet Structure: High-Flux Ferrite Motor
Frame: Marine-Grade Composite Basket
Crossover: Built-In 12dB High-Pass Network
Grille Finish: Black Powder-Coated Protective Mesh
Waterproof Rating: IP65 – Marine and Powersport Certified
Mounting Depth: 3.3" (84mm)
Mounting Cutout: 7.1" (180mm)
Overall Diameter: 8.6" (218mm)
Weight: 4.3 lbs (Each)
Warranty: 2-Year Manufacturer Warranty
Performance Specs
• Delivers rich, full-range sound with precise midbass and crisp highs for motorcycles, UTVs, and marine setups.
• Carbon-fiber cone ensures rigidity, low distortion, and weatherproof performance.
• Titanium tweeter produces bright, detailed highs with wide dispersion.
• 2Ω impedance draws maximum efficiency and power from Diamond HXM amplifiers.
• Designed for extreme outdoor use with full moisture, UV, and vibration resistance.
Key Features
• High-Power Design – Handles up to 175W RMS for demanding motorsport and marine systems.
• Carbon-Fiber Cone – Lightweight, stiff, and waterproof for superior accuracy and response.
• Integrated Titanium Tweeter – Delivers articulate, high-energy top-end performance.
• Built-In Crossover – Ensures clean transition and protection for high-frequency components.
• Marine-Grade Durability – Corrosion-resistant materials withstand sun, salt, and spray.
• Versatile Mounting – Ideal for fairings, bag lids, tower pods, or marine panels.
• Diamond Audio Elite Engineering – Tuned for clarity, strength, and reliability under pressure.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D or HXM1500.2D Amplifiers (2Ω Stable).
• System Compatibility: Harley-Davidson®, Marine, UTV, and Custom Powersport Installations.
• Recommended Use: Full-range or 2-way applications requiring premium clarity and impact.
• Installation Location: Fairings, enclosures, or bag lids.
• Installation Time: Approx. 45–60 minutes per pair.
• Pro Tip: Apply a high-pass filter at 70Hz @ 12dB/oct to maintain cone control and maximize output efficiency.
