Specifications

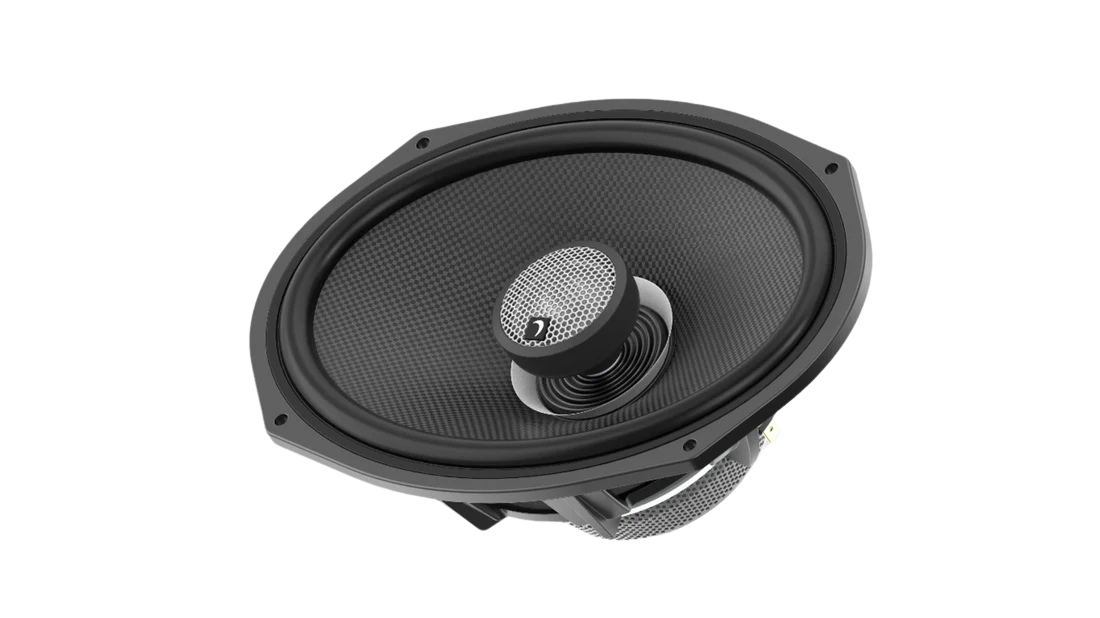

Type: High-Performance 2-Way Full-Range Motorsport Speaker
Series: HXM Elite Motorsport Series
Size: 6"x9" (Oval Frame)
Configuration: 2-Way Coaxial
Impedance: 4Ω
Power Handling (RMS): 150W
Power Handling (Peak): 450W
Sensitivity (1W/1m): 94dB
Frequency Response: 65Hz – 22kHz
Cone Material: Black Carbon-Fiber Reinforced Poly Matrix
Surround: UV-Stabilized Rubber
Tweeter Type: 1-inch (25mm) Titanium Dome Tweeter
Tweeter Mount: Coaxially Integrated Compression Design
Voice Coil: 1.5-inch High-Temperature Copper Wound on Kapton Former
Magnet Structure: High-Flux Ferrite Motor Assembly
Frame: Marine-Grade Composite Basket
Crossover: Built-In 12dB High-Pass Network
Grille Finish: Black Powder-Coated Mesh Protective Grill
Waterproof Rating: IP65 – Marine and Powersport Certified
Mounting Depth: 3.1" (79mm)
Mounting Cutout: 8.7" x 5.9" (221mm x 150mm)
Overall Dimensions: 9.3" x 6.6" (236mm x 168mm)
Weight: 4.0 lbs (Each)
Warranty: 2-Year Manufacturer Warranty
Performance Specs
• Produces clean, high-output full-range sound for motorcycles, UTVs, and marine applications.
• Carbon-fiber cone ensures rigidity and long-term resistance to water and UV damage.
• Titanium tweeter delivers crisp highs and precise vocal clarity.
• 4Ω configuration provides flexible amplifier pairing for multi-speaker setups.
• Marine-grade materials designed to withstand harsh outdoor conditions.
Key Features
• Coaxial Two-Way Design – Balanced, full-range performance with integrated titanium tweeter.
• Carbon-Fiber Cone – Lightweight, strong, and weather-resistant for accurate sound reproduction.
• Built-In Crossover – Ensures seamless frequency transition and tweeter protection.
• Marine-Grade Durability – Fully sealed against water, salt, and UV exposure.
• High Efficiency – Delivers strong output with minimal amplifier strain.
• Universal 6x9 Fitment – Ideal for bag lids, fairings, or marine towers.
• Diamond Audio Engineering – Tuned for clarity, impact, and long-lasting performance.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D or HXM1500.2D Amplifiers (4Ω Stable).
• System Compatibility: Harley-Davidson®, Marine, UTV, and Custom Powersport Systems.
• Recommended Use: High-efficiency full-range driver for outdoor or fairing applications.
• Installation Location: Bag lids, fairings, or marine panels.
• Installation Time: Approx. 45 minutes per pair.
• Pro Tip: For optimal clarity and reliability, high-pass filter at 80Hz @ 12dB/oct to protect against cone over-excursion.
