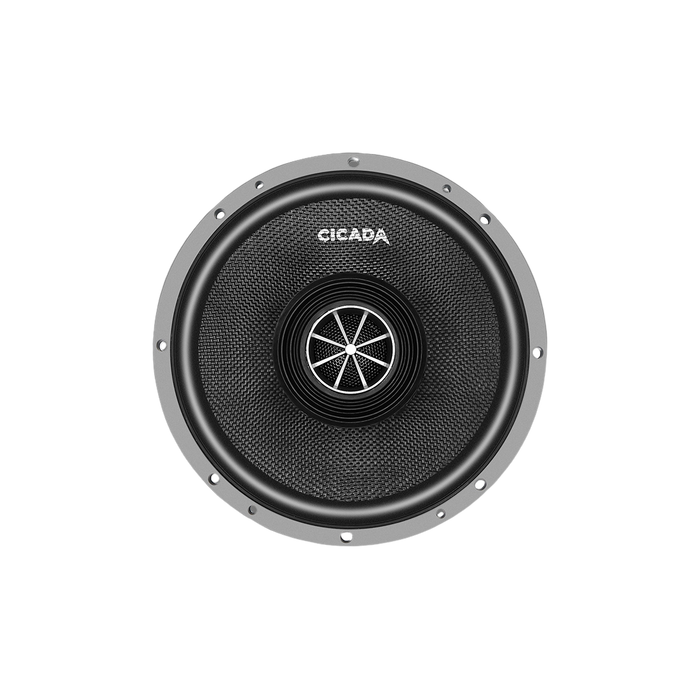

Cicada Audio - CXX8.4 - Pro Coaxial 8-inch - 4Ω - 2-inch voice coil

Specifications
Type: Pro Coaxial Midbass / Compression Driver Speaker
Speaker Size: 8" (203 mm)
Configuration: 2-Way Coaxial – Midbass + Integrated Compression Tweeter
Impedance: 4 Ω
RMS Power Handling: 250 W
Peak Power Handling: 500 W
Sensitivity: 98 dB (1W / 1m)
Frequency Response: 70 Hz – 20 kHz
Midbass Voice Coil: 2" High-Temp CCAW (Copper-Clad Aluminum Wire)
Tweeter Voice Coil: 1" Titanium Dome Diaphragm (High-Output Compression Driver)
Cone Material: Non-Pressed Paper with Resin Treatment
Surround: Cloth Reinforced for High SPL Stability
Frame: Heavy-Duty Cast Aluminum Basket
Magnet Structure: High-Energy Ferrite – Dual Stack Design
Crossover Type: Built-In High-Pass Filter for Tweeter Protection
Mounting Depth: 3.78" (96 mm)
Cutout Diameter: 7.2" (183 mm)
Warranty: 2-Year Manufacturer Warranty

Audio Performance Specs
• Frequency Range: 70 Hz – 20 kHz (Full-Range Coaxial)
• Sensitivity: 98 dB – Exceptionally loud and dynamic for open-air motorcycle environments.
• Power Handling: 250 W RMS for sustained high-output performance.
• Tweeter Output: Titanium compression design delivers crisp, clean highs without distortion.
• Midbass Output: 2" voice coil ensures deep, controlled midbass even at full throttle.

Key Features
• Purpose-Built for Motorcycle & Powersports Applications – Engineered to perform in extreme outdoor sound environments.
• Integrated Compression Tweeter Design – Delivers pinpoint clarity and output for maximum projection.
• Durable, Weather-Resistant Build – Resin-treated cone and cloth surround handle moisture and temperature swings.
• Massive Magnet Structure – Dual-stack ferrite motor ensures punch, control, and extreme SPL capability.
• High Efficiency Design – Produces high output with modest amplifier power, ideal for fairing and bag systems.
• Factory Upgrade Fitment – Fits most 8" Harley® fairing and bag lid configurations.
• Cicada Audio Performance DNA – Designed and tested in the USA for riders who crave clean, powerful sound at speed.

Performance Integration Notes
• Recommended Amplifier Pairing: Cicada CX150.4D / FLX2500.1 / DSP125.4D
• Ideal System Match: CXX8.4 (Front or Rear) paired with RR075T Tweeters for extended stage height.
• Crossover Settings: HPF at 70 Hz, 24 dB/octave for optimal clarity and protection.
• Installation Time: Approx. 30–45 minutes (Professional Installation Recommended)
