Specifications

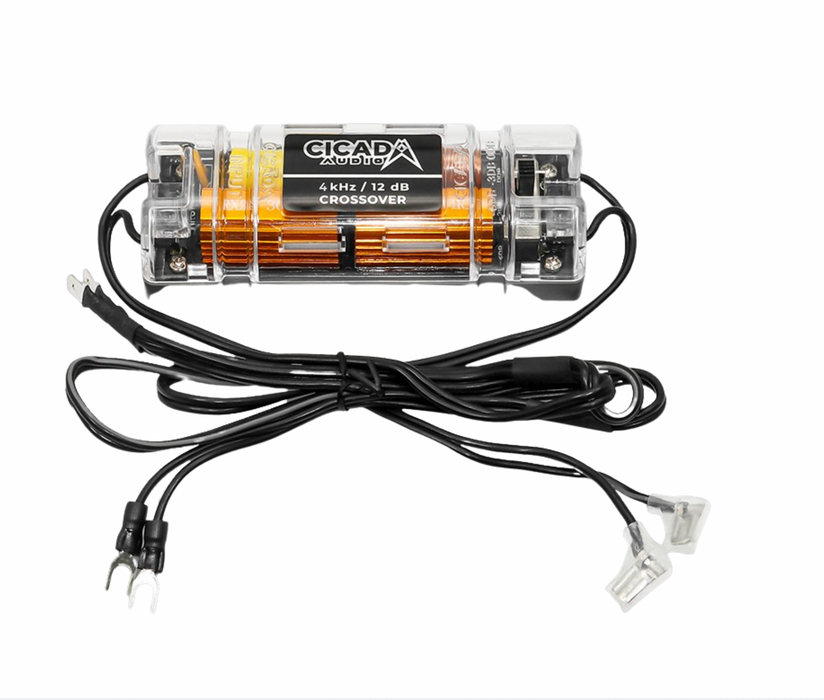

Type: High-Power Passive Crossover Network
Configuration: 2-Way (High-Pass / Low-Pass)
Input / Output Channels: 1 Input – 2 Outputs (Tweeter / Midrange)
Impedance Compatibility: 2 Ω – 4 Ω
Power Handling: 250 W RMS / 500 W Peak (Per Channel)
Crossover Frequency: 4.0 kHz (Nominal)
Crossover Slope: 12 dB / Octave (Butterworth Alignment)
Components: Precision-Wound Air Core Inductors, Polypropylene Capacitors, and High-Power Ceramic Resistors
Input Terminals: Spade-Style Gold-Plated Connectors
Output Terminals: Spade-Style Gold-Plated Connectors
Enclosure Material: Transparent Polycarbonate Protective Housing
Dimensions (L×W×H): 4.25" × 3.25" × 1.5" (108 × 83 × 38 mm)
Weather Resistance: UV, Moisture, and Vibration Resistant
Sold As: Pair (1 Qty = 2 Crossovers)
Warranty: 2-Year Manufacturer Warranty
Audio Performance Specs
• Precision Passive Network: Ensures seamless transition between midrange and tweeter frequencies.
• Tuned for Cicada Systems: Matched for use with CHX, CH, and RR series horn tweeters and midbass drivers.
• Low Signal Loss Design: Air-core inductors and non-polarized capacitors preserve full bandwidth and clarity.
• Thermal Stability: Components rated for high-heat environments and continuous high SPL playback.
• Sound Character: Smooth, detailed response with excellent mid-high integration and tonal balance.
Key Features
• Purpose-Built for Cicada Audio Speaker Systems – Designed for seamless integration between horn tweeters and midbass or coaxial drivers.
• High-Power Handling – Capable of supporting large amplifier systems in motorcycle or powersport setups.
• Compact & Durable Housing – Protective casing keeps components safe from vibration and moisture.
• Pre-Terminated Connectors – Quick installation with standard spade terminals.
• Cicada Tuned Network – Engineered in the USA for exact frequency handoff and accurate phase alignment.
• Weatherproof Design – Ideal for Harley-Davidson®, marine, and UTV applications.
Performance Integration Notes
• Compatible Speakers: Cicada CHX, CH, CM, and RR Series (Midbass & Tweeter Combos).
• Recommended Amplifiers: Cicada CX / FLX / DSP Series.
• System Fit: Harley-Davidson® Touring and Custom Audio Applications.
• Installation Time: Approx. 15–20 minutes per pair.
