Specifications

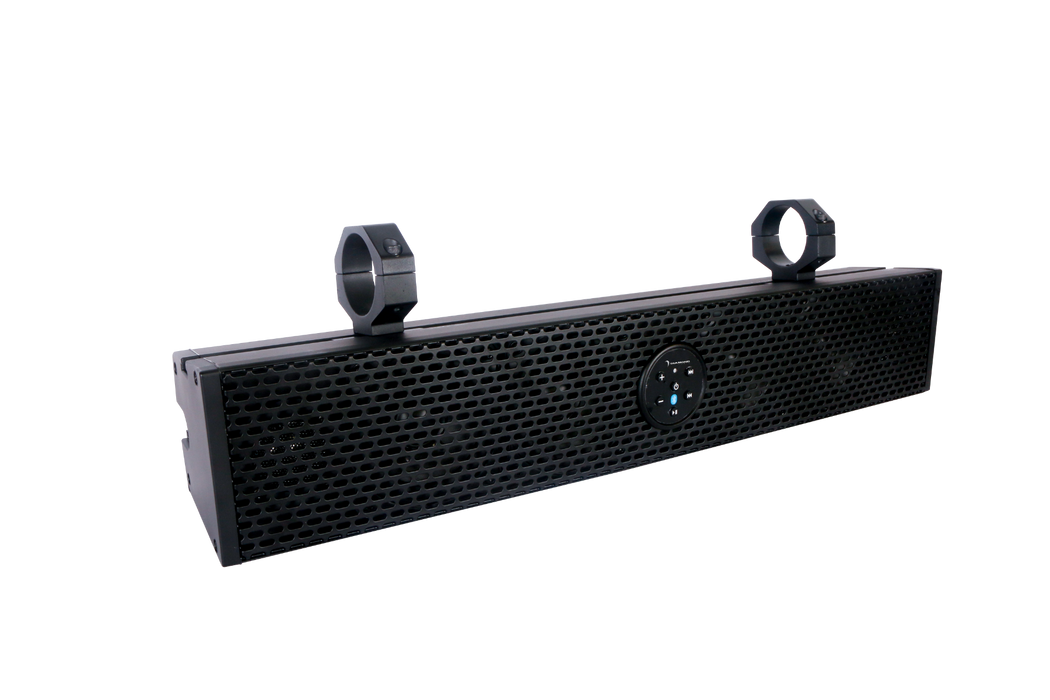

Type: All-in-One Amplified Sound Bar System
Series: Diamond Audio Motorsport / Marine Series
Speaker Configuration: 6-Speaker System (4 Active Drivers + 2 Passive Radiators)
Speaker Size: 4" (101.6 mm) Full-Range Drivers
System Power Output (RMS): 120 W
System Power Output (Peak): 240 W
Amplifier Type: Built-In Full-Range Class D Amplifier
Impedance: 4 Ω (Integrated System)
Frequency Response: 60 Hz – 20 kHz
Signal-to-Noise Ratio: >90 dB
Inputs:
• Bluetooth® 5.0 (A2DP Wireless Audio Streaming)
• 3.5 mm AUX Input (Stereo Mini-Jack)
Outputs:
• RCA Line Output (For External Amplifier or Subwoofer)
Power Input: 12V DC (Automotive / Marine Standard)
Current Draw (Max): 10 A
Crossover Type: Integrated Full-Range / Subsonic Filter
Enclosure Material: UV-Stabilized High-Impact ABS Polymer
Finish: Matte Black Textured UV-Proof Coating
Mounting Type: Universal Clamp Mount or Surface Mount
Mounting Hardware: Adjustable Aluminum Clamps (0.75"–2.0" Bars)
Passive Radiator Design: Dual Side-Firing Radiators for Enhanced Low-End Output
Controls: Illuminated Top Panel with Power, Volume, Track, and Mode Selection
Wireless Range: Up to 50 ft (15 m)
Waterproof Rating: IP66 (Dustproof / Splash Resistant / UV-Protected)
Cooling: Passive Airflow Venting
Dimensions (L×W×H): 26.0" × 4.5" × 3.9" (660 × 115 × 99 mm)
Weight: 10.6 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Integrated 6-speaker amplified sound bar engineered for motorcycles, UTVs, and marine use.
• Dual side passive radiators deliver deep, punchy bass in a compact enclosure.
• IP66-certified waterproof design resists rain, salt, mud, and vibration.
• Class D amplifier provides clean, efficient power with minimal distortion.
• Designed for high-output performance even at highway or trail speeds.
Key Features
• All-in-One System – Built-in amp, Bluetooth, and drivers—no external components needed.
• IP66 Waterproof Construction – Fully sealed against water, dust, and UV exposure.
• Bluetooth 5.0 – Reliable wireless streaming with fast pairing and low latency.
• Dual Passive Radiators – Deep, natural bass extension without ports or vent noise.
• Compact, Rugged Housing – Ideal for motorcycles, ATVs, UTVs, and marine towers.
• Universal Mounting Options – Includes adjustable clamps and hardware.
• Integrated Controls – Illuminated tactile buttons for easy operation.
• Diamond Audio Engineering – Optimized for power, projection, and durability.
Performance Integration Notes
• Ideal Pairing: Diamond BTR4 or BTR2 Bluetooth controllers for multi-zone setups.
• System Compatibility: Universal 12V audio systems – motorcycles, UTVs, boats, and golf carts.
• Recommended Use: Standalone or auxiliary sound system for powersport and marine vehicles.
• Installation Time: Approx. 30–45 minutes.
• Pro Tip: For best performance, mount sound bar at ear level and route power directly to a fused ignition source to prevent voltage spikes.
