Specifications

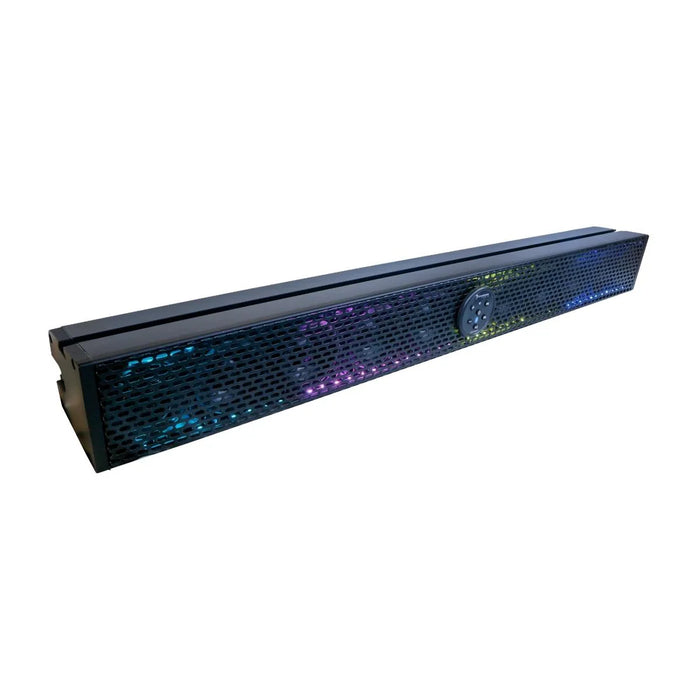

Type: All-in-One Amplified Sound Bar System with LED Illumination
Series: Diamond Audio Motorsport / Marine Series
Speaker Configuration: 10-Speaker System (8 Active Drivers + 2 Passive Radiators)
Speaker Size: 3" (76 mm) Full-Range Speakers
System Power Output (RMS): 200 W
System Power Output (Peak): 400 W
Amplifier Type: Built-In Full-Range Class D Amplifier
Nominal Impedance: 4 Ω (Integrated System)
Frequency Response: 60 Hz – 20 kHz
Signal-to-Noise Ratio: >90 dB
Inputs:
• Bluetooth® 5.0 (A2DP Wireless Audio Streaming)
• 3.5 mm AUX Input (Stereo Mini-Jack)
Outputs:
• RCA Line Output (For External Subwoofer or Amp Expansion)
Power Input: 12V DC (Automotive / Marine Standard)
Current Draw (Max): 12 A
Crossover Type: Integrated Full-Range / Subsonic Filter
Enclosure Material: UV-Stabilized High-Impact ABS Polymer
Finish: Matte Black Textured UV-Proof Coating
Mounting Type: Universal Clamp or Surface Mount
Mounting Hardware: Adjustable Aluminum Clamps (0.75"–2.0" Tubing)
Passive Radiator Design: Dual Side-Firing Radiators for Enhanced Low-End Output
Lighting System: Integrated Multi-Color RGB LED Illumination (App or Remote Controlled)
Controls: Illuminated Top Panel with Power, Volume, Track, Mode, and Lighting Control
Wireless Range: Up to 50 ft (15 m)
Waterproof Rating: IP66 (Dustproof, Splash Resistant, and UV-Protected)
Cooling: Passive Airflow Venting System
Dimensions (L×W×H): 34.0" × 4.5" × 3.9" (864 × 115 × 99 mm)
Weight: 12.5 lbs
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• 10-speaker amplified sound bar built for extreme outdoor, marine, and powersport environments.
• Dual passive radiators produce powerful, low-end bass extension from a compact housing.
• IP66 waterproof and UV-resistant construction ensures reliability in any weather conditions.
• Integrated RGB LED lighting enhances visual appeal and night visibility.
• Efficient Class D amplification provides loud, distortion-free sound at cruising or trail speeds.
Key Features
• 10-Speaker System – Delivers wide, immersive sound coverage with deep low-end impact.
• IP66 Waterproof Design – Fully sealed against water, dust, and UV damage.
• Bluetooth 5.0 Connectivity – Fast, stable wireless pairing with phones and tablets.
• RGB LED Lighting – Multi-color glow with selectable colors, fades, and music sync modes.
• Dual Passive Radiators – Adds punchy, dynamic bass response without ports or vent noise.
• Durable ABS Housing – Shock-resistant, weatherproof, and built for rugged installs.
• Universal Mounting System – Works with roll cages, handlebars, and wake towers.
• Diamond Audio Reliability – Tuned for clarity, projection, and long-term durability.
Performance Integration Notes
• Ideal Pairing: Diamond BTR4 or BTR2 Bluetooth controllers for extended control zones.
• System Compatibility: 12V power systems – motorcycles, UTVs, ATVs, marine vessels, and golf carts.
• Recommended Use: All-in-one sound system for outdoor, off-road, and marine entertainment.
• Installation Time: Approx. 30–45 minutes.
• Pro Tip: Connect LED power to a separate switched circuit for independent lighting control and ensure ground points are sealed against corrosion.
