Specifications

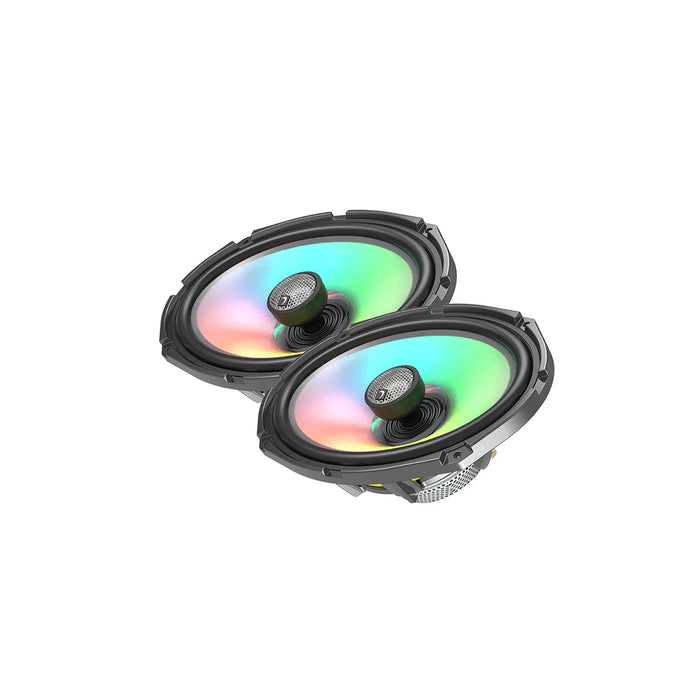

Type: 2-Way Coaxial Full-Range Speaker
Series: Diamond Audio HXM Elite Motorsport Series
Size: 6"×9" (152×229mm)
Configuration: Coaxial (Midbass + Horn Tweeter)
Power Handling (RMS): 150W
Power Handling (Peak): 450W
Impedance: 4Ω
Sensitivity (1W/1m): 91dB
Frequency Response: 50Hz – 22kHz
Woofer Cone: Carbon-Fiber Reinforced Polypropylene
Surround: UV-Treated Rubber
Voice Coil: 1.5-inch (38mm) High-Temperature Copper
Tweeter Type: 1-inch (25mm) Titanium Dome Compression Horn
Tweeter Magnet: Neodymium
Crossover: Integrated 12dB/Octave High-Pass Network
Basket: Heavy-Duty Marine-Grade Composite Frame
Cooling System: Rear-Vented Motor Assembly
Grilles: Included – Corrosion-Resistant Aluminum Mesh
Mounting Depth: 3.4" (86mm)
Mounting Cutout: 8.7" × 5.9" (221 × 150mm)
Overall Diameter: 9.25" × 6.9" (235 × 175mm)
Waterproof Rating: IP65 (Salt, Fog, and UV Resistant)
Weight: 6.2 lbs (Pair)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• High-efficiency 2-way coaxial speaker engineered for elite powersport and marine audio systems.
• Titanium compression horn tweeter provides powerful, articulate highs in open-air conditions.
• Carbon-fiber cone ensures precision, tight midbass, and lasting durability.
• IP65-certified enclosure delivers total protection from water, salt, and UV exposure.
• Optimized for high-output, full-range performance with clean dynamic balance.
Key Features
• 2-Way Coaxial Design – Full-range clarity with premium SPL capability.
• Titanium Dome Horn Tweeter – Crisp, commanding high-frequency projection.
• Carbon-Fiber Reinforced Cone – Lightweight and acoustically rigid.
• Marine-Grade Construction – Fully sealed and weatherproof for outdoor use.
• Integrated Crossover Network – Smooth, accurate frequency response.
• Rugged Build – Designed to handle vibration, moisture, and sunlight.
• Diamond Audio Engineering – Tuned for precision, punch, and reliability.
Performance Integration Notes
• Ideal Pairing: Diamond HXM800.4D, DXM800.4D, or HXM1100.6D Amplifiers (125–200W RMS @ 4Ω).
• System Compatibility: Marine, Motorcycle, UTV, or Motorsport Audio Systems.
• Recommended Use: High-power full-range fairing or tower speaker installations.
• Installation Location: Tower pods, saddlebag lids, or fairing enclosures.
• Installation Time: Approx. 1 hour.
• Pro Tip: Mount tweeters at ear level or slightly angled toward listener axis for best soundstage projection and imaging in open environments.
