Specifications

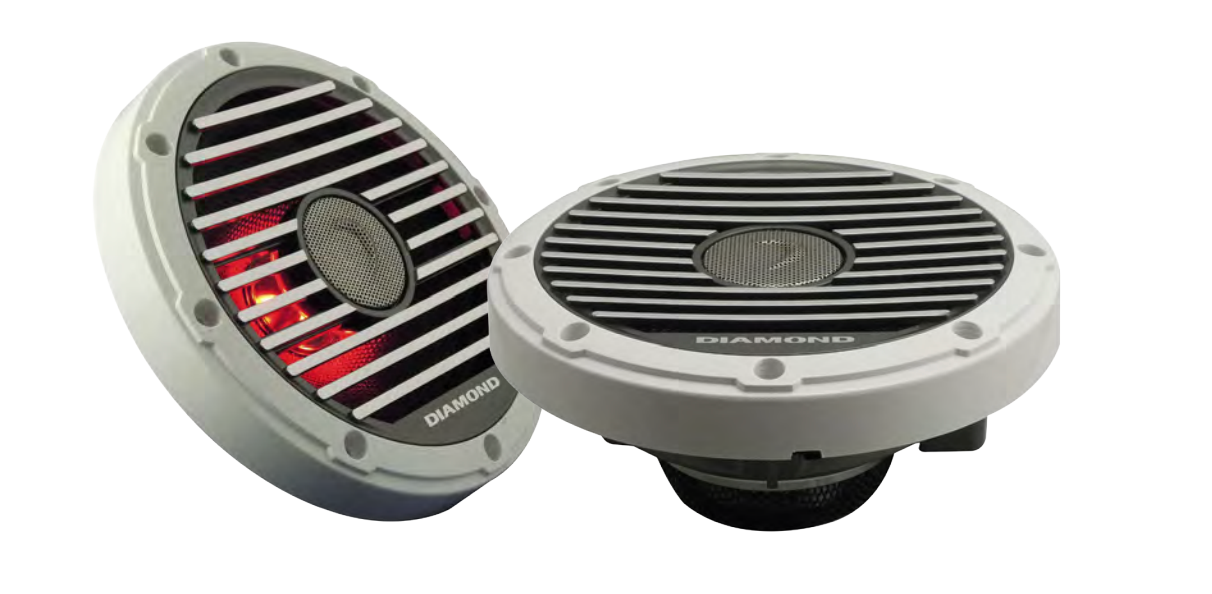

Type: 2-Way Coaxial Full-Range Speaker
Series: Diamond Audio Motorsport HXM Series
Speaker Size: 8" (203 mm)
Configuration: 2-Way Coaxial (Midbass + Tweeter)
Power Handling (RMS): 120 W
Power Handling (Peak): 240 W
Nominal Impedance: 4 Ω
Sensitivity (1W/1m): 94 dB
Frequency Response: 55 Hz – 20 kHz
Midrange Cone Material: Poly-Mica Reinforced Cone
Surround Material: UV-Treated Rubber Surround
Tweeter Type: 25 mm (1") Titanium Dome Tweeter
Tweeter Mount: Coaxially Integrated Compression Design
Crossover: Integrated 12 dB/Octave High-Pass Network
Voice Coil Diameter: 1.5" (38 mm)
Voice Coil Material: Copper-Clad Aluminum Wire (CCAW)
Voice Coil Former: High-Temperature Kapton® Former
Basket: Non-Resonant Stamped Steel Frame
Magnet Structure: High-Energy Ferrite Motor
Grill: Included – Marine-Grade Perforated Metal (Black Finish)
Mounting Depth: 3.3" (84 mm)
Mounting Cutout Diameter: 7.1" (180 mm)
Overall Diameter: 8.6" (219 mm)
Weight: 5.1 lbs (Pair)
Weather Resistance: UV, Water, and Salt Spray Resistant (IP65 Rated)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Designed for marine, motorcycle, and powersport environments requiring full-range clarity and output.
• 25 mm titanium tweeter produces crisp, detailed highs without distortion.
• Poly-mica cone delivers accurate midbass with excellent environmental durability.
• Optimized for use in both sealed and open-air installations.
• Balanced tonal response ideal for full-range or amplified systems.
Key Features
• Marine-Grade Build – Corrosion-resistant and UV-protected for outdoor performance.
• Titanium Dome Tweeter – Delivers brilliant, distortion-free high frequencies.
• Poly-Mica Cone – Combines rigidity and damping for balanced sound.
• Integrated Crossover Network – Ensures smooth mid-to-high frequency transition.
• IP65 Certified – Built to withstand water, dust, and extreme conditions.
• High Sensitivity (94 dB) – Efficiently produces loud, clear output with minimal power.
• Diamond Audio Engineering – Tuned for clarity, projection, and reliability in real-world riding and marine conditions.
Performance Integration Notes
• Ideal Pairing: Diamond MICRO84U, DXM800.4D, or DES400.4D amplifiers.
• System Compatibility: Marine, Harley-Davidson®, UTV, or outdoor audio systems.
• Recommended Use: Full-range speaker upgrade for high-performance environments.
• Installation Time: Approx. 45–60 minutes.
• Pro Tip: Use stainless mounting hardware and marine-grade wiring for long-term durability; high-pass filter at 60–70 Hz for cleaner midbass response.
